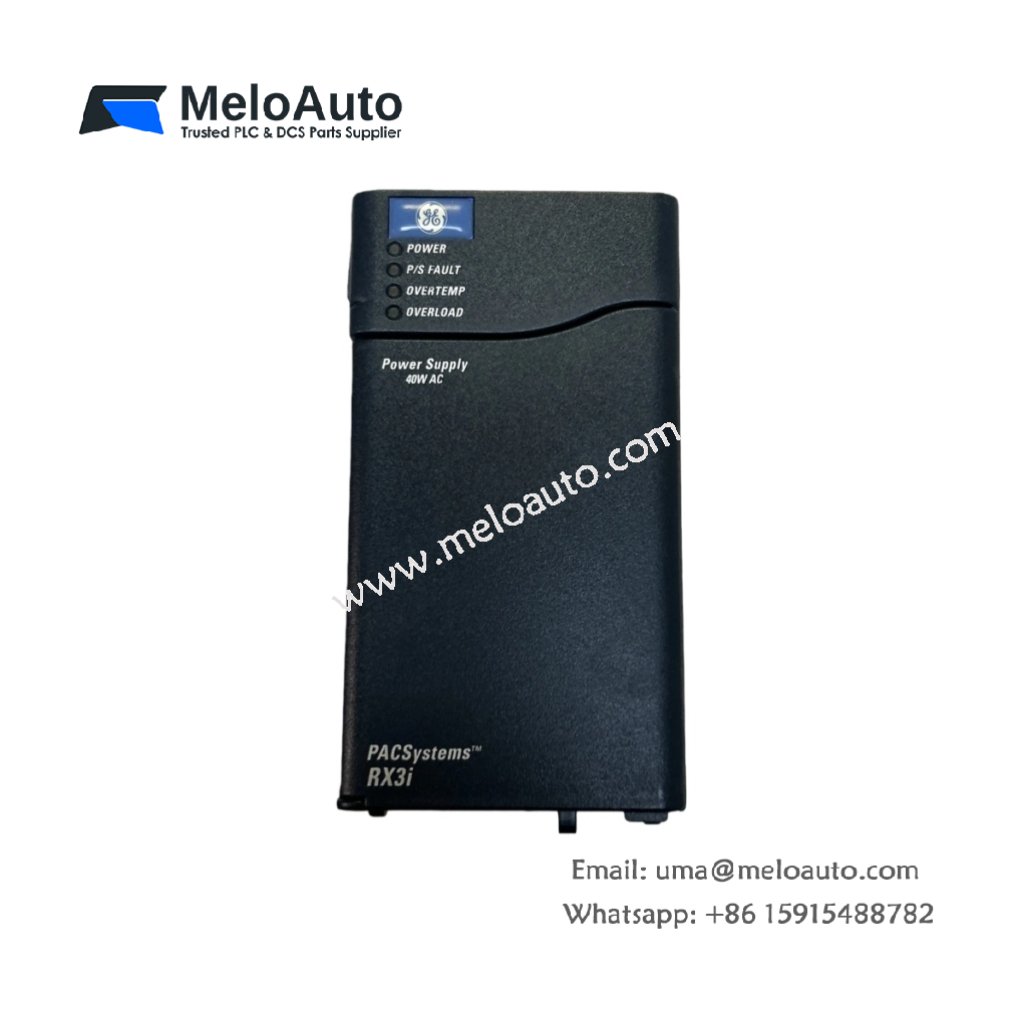

General Electric IC695PSA040 PACSystem RX3i Power Supply

The IC695PSA040 is a versatile power supply module from General Electric (GE), part of the PACSystem RX3i product family. It provides a reliable solution for powering RX3i systems and attached modules, offering a rated output power of 40 Watts. With multiple output voltages and a wide input voltage range, the IC695PSA040 is ideal for various industrial automation applications.

Product Overview

The IC695PSA040 operates with an input supply voltage of 85-264 VAC or 100-300 VDC. It supports three key output voltages: +5.1 VDC, +24 VDC relay output, and +3.3 VDC for internal use by the RX3i system and connected modules. This power supply ensures stable and efficient power distribution within the PACSystem RX3i environment, making it essential for both control and communication tasks.

With its compact design and robust features, the IC695PSA040 can be mounted onto a universal backplane within the RX3i series. However, it cannot be combined with other power supplies in the same backplane, as it is designed for use with the universal RX3i backplane only. Its efficient design allows it to support a load capacity of up to 40 Watts, providing ample power for the system’s operations.

Key Features and Specifications

The IC695PSA040 power supply offers the following technical specifications:

Application and Usage

The IC695PSA040 is primarily used in industrial automation systems that require stable and reliable power for control modules and peripheral devices. It ensures that the RX3i system and connected components receive the proper voltage and current for optimal performance. The power supply’s multiple output voltages make it suitable for powering both internal and external devices within the RX3i architecture.

In addition to its primary function of powering RX3i modules, the IC695PSA040 provides a relay output at 24 VDC, which can be used to power external circuitry. The unit’s LED indicators help operators monitor its status in real time, providing valuable diagnostics for preventive maintenance and troubleshooting.

Integration and Compatibility

The IC695PSA040 is specifically designed for use with the PACSystem RX3i backplane, ensuring seamless integration within the GE automation ecosystem. However, it cannot be mixed with other RX3i power supplies within the same backplane. For additional power requirements or redundancy, users should install modules in separate expansion backplanes. This ensures optimal system performance while maintaining power supply capacity.

Conclusion

The IC695PSA040 power supply from General Electric is a highly efficient and reliable solution for powering RX3i automation systems. With a load capacity of 40 Watts, multiple output voltages, and compatibility with the RX3i backplane, this power supply is ideal for a wide range of industrial automation applications. Its flexible input voltage range, coupled with advanced diagnostic features, makes it a critical component for ensuring the reliable operation of complex automation systems.
