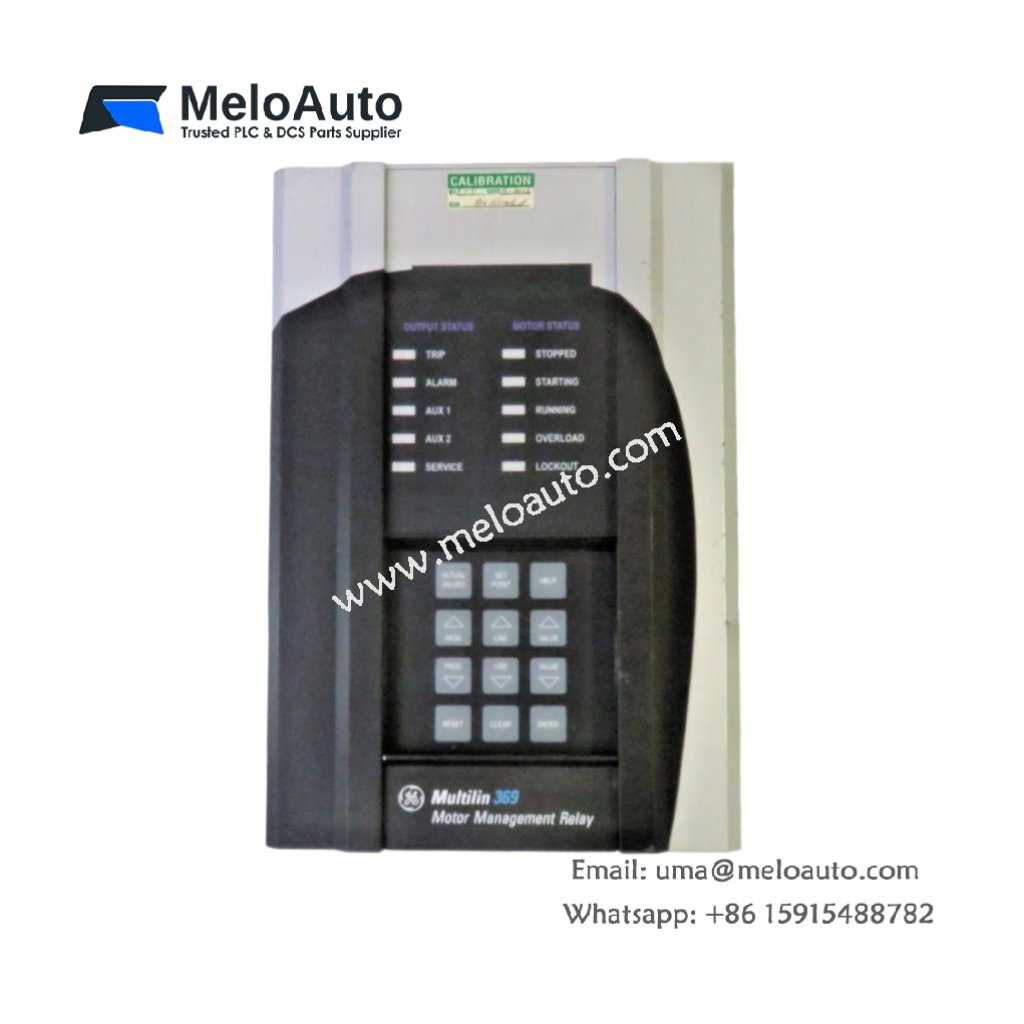

General Electric 369-HI-R-0-0-0-E Motor Protection Relay

The 369-HI-R-0-0-0-E by General Electric (GE) is a high-performance motor protection relay, specifically designed to ensure the safety and efficiency of industrial motors. It provides advanced protection and diagnostics for a wide range of motor types, ensuring smooth operation in demanding industrial environments.

Product Overview

The motor protection relay offers reliable protection for motors, preventing damage caused by overvoltage, undervoltage, phase loss, and other electrical faults. This model operates within a voltage range of 50-300 VDC and 60-265 VAC, making it versatile for various industrial applications. Equipped with 12 RTD (Resistance Temperature Detector) inputs, it ensures precise temperature monitoring and diagnostics, providing users with real-time feedback on motor performance.

With enhanced diagnostics and an advanced faceplate, the simplifies maintenance and troubleshooting, minimizing downtime and improving operational efficiency. This relay is particularly suitable for motors in large plants, manufacturing lines, and power systems.

Key Features and Specifications

The 369-HI-R-0-0-0-E motor protection relay offers the following technical specifications:

Specification	Details
Model	369-HI-R-0-0-0-E
Manufacturer	General Electric (GE)
Product Type	Motor Protection Relay
Input Voltage Range	50-300 VDC, 60-265 VAC
Frequency	50-60 Hz
RTD Inputs	12 RTD Inputs
Advanced Diagnostics	Enhanced diagnostics with advanced faceplate
Mounting Type	Panel mount
Display	LCD Display with advanced diagnostic options
Protection Features	Overvoltage, Undervoltage, Phase Loss, Motor Overload
Operating Temperature Range	-20°C to 60°C
Weight	1.2 kg (2.65 lbs)

Application and Usage

The motor protection relay is ideal for applications where motor safety and performance monitoring are critical. It protects motors against common electrical faults, including overvoltage, undervoltage, phase loss, and overloads, reducing the risk of damage and ensuring continuous operation. This relay is commonly used in industries such as manufacturing, energy, and automation, where reliable motor protection is essential.

In addition to its protective features, offers enhanced diagnostics that provide in-depth insights into motor health. The 12 RTD inputs enable detailed temperature monitoring, while the advanced faceplate and LCD display provide real-time data to operators, simplifying maintenance and troubleshooting.

Integration and Compatibility

The 369-HI-R-0-0-0-E integrates seamlessly with GE’s control systems and can be easily incorporated into existing motor protection setups. The panel mount design ensures easy installation in control cabinets and electrical panels. With its flexible voltage and frequency compatibility, it can be used in various motor-driven applications, providing reliable protection and enhanced diagnostics.

Conclusion

In conclusion, the motor protection relay from General Electric provides comprehensive protection for motors in industrial applications. With advanced diagnostics, precise temperature monitoring, and protection against electrical faults, this relay ensures optimal motor performance and minimizes downtime. Its easy integration and user-friendly interface make it an essential component for modern industrial automation systems.
