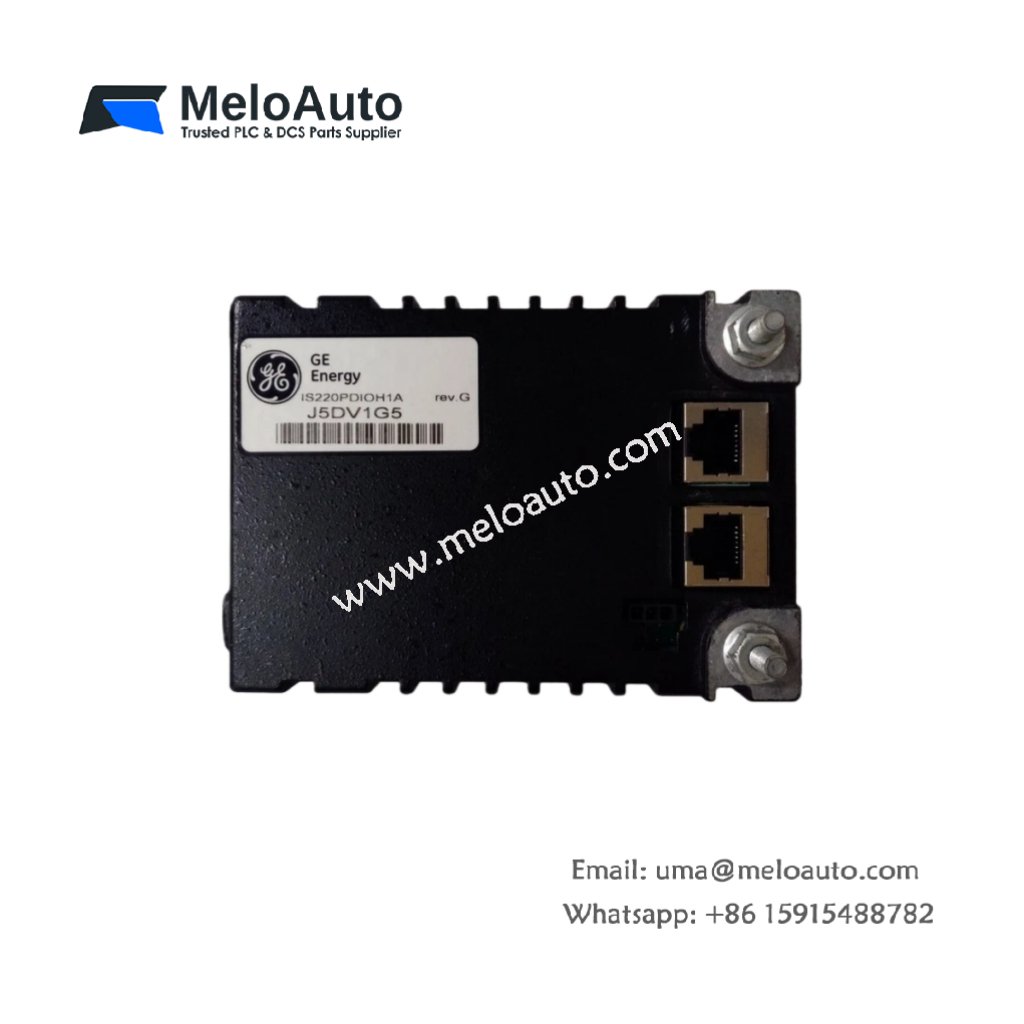

GE IS220PDIOH1A Discrete I/O Module

The IS220PDIOH1A is a Discrete Input/Output (I/O) module from General Electric, designed for the Mark VIe series distributed control systems. This module ensures seamless communication between I/O Ethernet networks and discrete I/O terminal boards, facilitating reliable data exchange for various industrial applications.

Key Features

Input and Output Capacity:
- It supports up to 24 contact inputs.
- The module can handle up to 12 relay outputs.
Acquisition and Processing:
- The IS220PDIOH1A integrates an acquisition board tailored for discrete I/O functions.
- Additionally, it uses a shared processor board across all Mark VIe I/O packs, ensuring consistent performance across devices.
Feedback Signal Handling:
- It collects feedback signals from the terminal board to improve system accuracy and operation.
Communication:
- The module supports Ethernet networks, allowing communication with other industrial components, such as PLC and HMI systems.

Specifications

Parameter	Value
Part Number	IS220PDIOH1A
Manufacturer	General Electric
Series	Mark VIe
Country of Origin	United States
Availability	In Stock
Manual	GEH-6721L
Input Capacity	Up to 24 contact inputs
Output Capacity	Manages up to 12 relay outputs
Ethernet Network Support	Yes, for I/O communication
Feedback Signal Handling	Yes, specific to terminal board
Operating Temperature Range	0°C to 60°C
Storage Temperature Range	-40°C to 85°C
Weight	0.9 lbs (0.4 kg)
Dimensions (HxWxD)	3.5″ x 5.0″ x 2.0″ (8.89 cm x 12.70 cm x 5.08 cm)
Humidity	5-95% non-condensing

Product Overview

The IS220PDIOH1A is a critical component within the Mark VIe series distributed control systems. It plays a key role in managing input and output (I/O) processes. This module supports up to 24 contact inputs and can handle up to 12 relay outputs, giving flexibility for use in different industrial applications.

In addition to I/O management, this module allows communication through Ethernet networks. It can seamlessly exchange data between GE PLCs, HMI systems, and other devices. It also collects feedback signals from the terminal board, enhancing data accuracy.

Furthermore, the IS220PDIOH1A module supports integration with various industrial systems. It is perfect for sectors like manufacturing, process control, and automation. With its ability to operate with multiple devices, it offers high versatility. Additionally, the IS220PDIOH1A can be configured easily to meet the specific requirements of your application.
