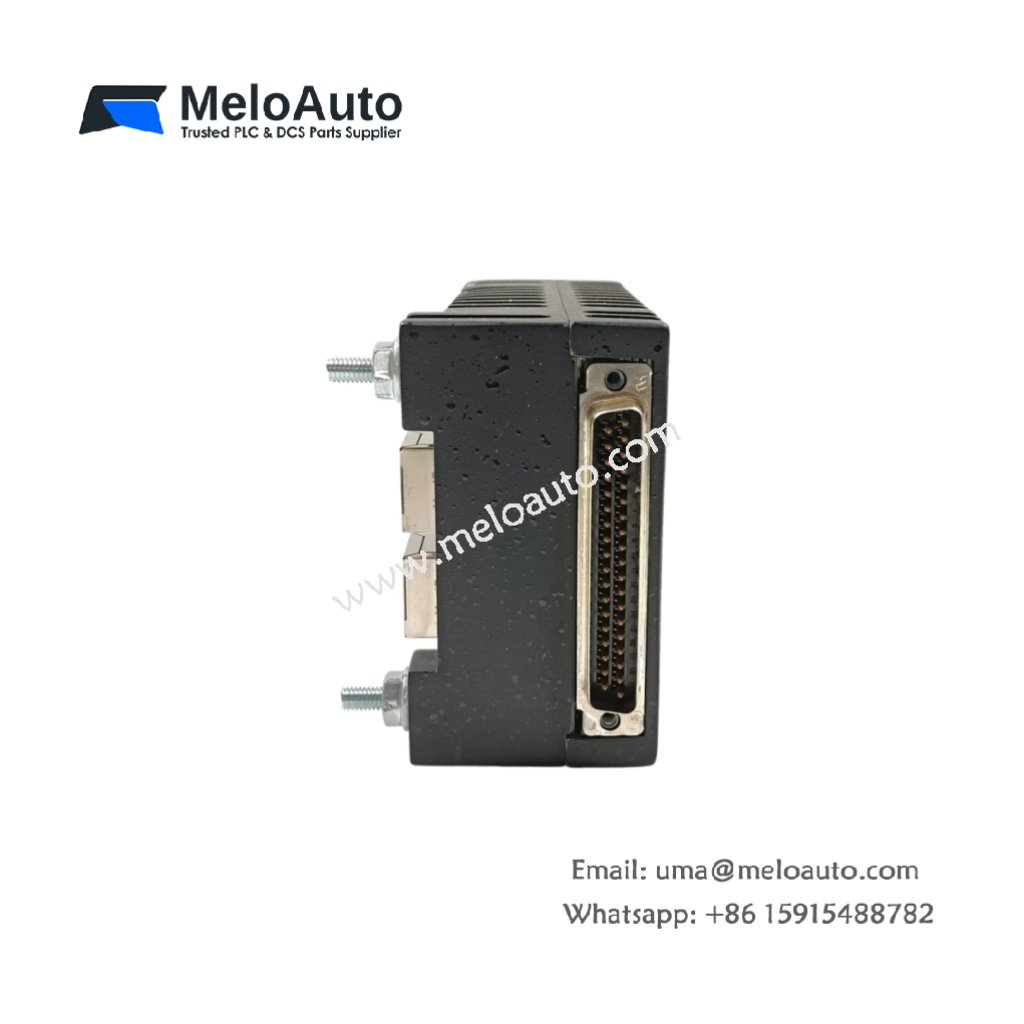

GE IS220PAICH1B Mark VI Analog Input Output Module

The GE IS220PAICH1B module provides analog input and output functions for Mark VI systems. This compact I/O module interfaces with field sensors and actuators. It handles both current and voltage signals for turbine control. The module delivers high accuracy in harsh industrial environments.

Technical Specifications of GE IS220PAICH1B

Component Count and Board Construction

The GE IS220PAICH1B module contains over 200 discrete components. You will find multiple operational amplifiers for signal conditioning. Furthermore, the module includes precision DACs for accurate output generation. The assembly also features opto-isolators for channel isolation.

Interfaces, Energy Storage, and Signal Processing

The GE IS220PAICH1B provides removable terminal blocks for field wiring. Moreover, the module uses capacitors for analog filter networks. These capacitors store minimal energy but provide critical noise rejection. Each input includes a dedicated ADC for simultaneous sampling.

Functional Logic and Application Context

This Mark VI module scans all eight input channels continuously. It then transmits digital values to the main controller via backplane. The GE IS220PAICH1B also receives command values for its four outputs. Additionally, it converts these commands into precise analog signals. Consequently, you can use this module for both sensing and control applications.

Installation and Environmental Limits

You must power down the rack before inserting this I/O module. The operating temperature range spans -30°C to +65°C . Furthermore, the module provides 1500 V isolation between field and logic sides. Always verify the GE IS220PAICH1B configuration before connecting field wiring.
