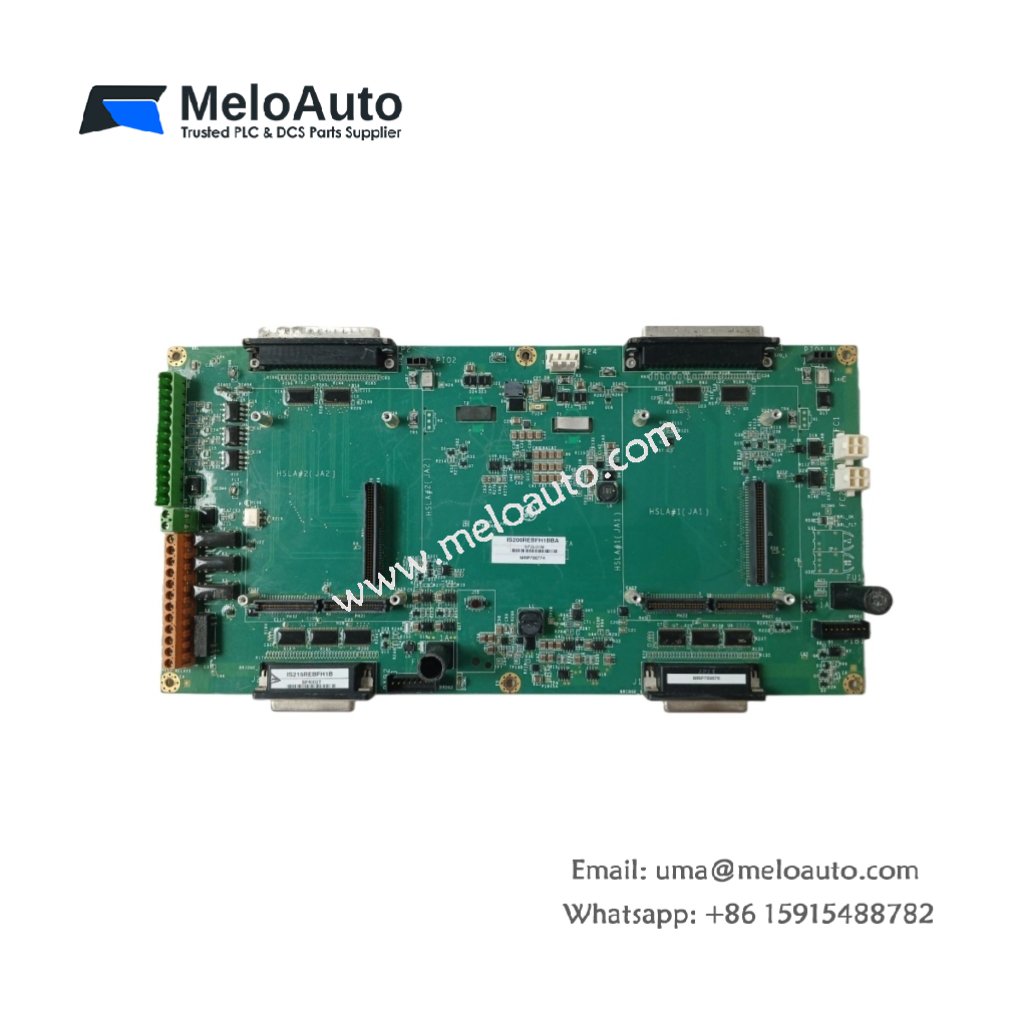

GE IS215VAMBH1A IS200VSPAH1ACC PCB

Overview of the GE IS215VAMBH1A IS200VSPAH1ACC

The GE IS215VAMBH1A IS200VSPAH1ACC is a high-performance printed circuit board (PCB) used in GE’s Mark VI Speedtronic control systems. This PCB plays a vital role in managing gas and steam turbines. Thanks to its integration of Triple Modular Redundancy (TMR) architecture, it ensures that the system maintains reliability even when one module fails.

Key Features of the GE IS215VAMBH1A IS200VSPAH1ACC

TMR Architecture: The PCB utilizes Triple Modular Redundancy (TMR) to enhance system reliability, enabling continuous operation even if one module fails.
Acoustic Monitoring: It supports 18 channels for signal conditioning and acoustic monitoring, making it compatible with frame 6, 7, or 9 gas turbines.
High Impedance DC Bias: This feature detects open connections between TAMB boards and charge amplifiers, ensuring no signal loss.
Buffered Outputs: Each channel offers a buffered BNC output for precise signal management.
Status Indicators: The PCB includes three LED indicators that provide real-time monitoring of the board’s status.

GE IS215VAMBH1A IS200VSPAH1ACC Technical Specifications

Specification	Details
Part Number	IS215VAMBH1A IS200VSPAH1ACC
Manufacturer	GE (General Electric)
Product Type	PCB (Printed Circuit Board)
System Compatibility	GE Mark VI Speedtronic Control Systems
Turbine Compatibility	Frame 6, 7, or 9 Gas Turbines
Channels	18 channels of acoustic signal conditioning
Impedance Type	High Impedance DC Bias
Output Type	Buffered BNC Outputs
Connectors	Two D-type cable connectors, two backplane connectors, vertical pin connectors
Integrated Components	Xilinx FPGA, resistors, capacitors, diodes, inductors
Jumpers	Nine 3-pin jumpers for flexible configuration
LED Indicators	Three LEDs for status monitoring

Detailed Description of the GE IS215VAMBH1A IS200VSPAH1ACC

The GE IS215VAMBH1A IS200VSPAH1ACC PCB serves a key function within the GE Mark VI Speedtronic control systems. It provides precise control over gas and steam turbines, helping ensure their smooth operation. With the TMR architecture, the PCB boosts fault tolerance, allowing the system to remain operational even if a module fails.

This PCB features 18 channels for acoustic signal conditioning and monitoring, making it highly compatible with frame 6, 7, and 9 gas turbines. In addition, the high impedance DC bias detection functionality helps identify open connections between TAMB boards and charge amplifiers, reducing the likelihood of signal degradation.

Each channel on the IS215VAMBH1A IS200VSPAH1ACC PCB has a buffered BNC output. These outputs enable precise signal handling and help avoid potential data loss. Furthermore, the inclusion of three LED indicators offers continuous status monitoring, ensuring operators can quickly identify any issues that may arise.

Benefits of the GE IS215VAMBH1A IS200VSPAH1ACC

Enhanced Fault Tolerance: With TMR architecture, the PCB allows the system to continue functioning, even if one module fails, ensuring maximum uptime.
Flexible Monitoring: The 18 channels of signal conditioning support various turbine models, including frame 6, 7, and 9.
Accurate Signal Management: Buffered BNC outputs provide precise control over signal transmission, maintaining high accuracy.
Real-Time Performance Tracking: Three LED indicators provide constant updates on the PCB’s operational status, helping to identify any issues instantly.
