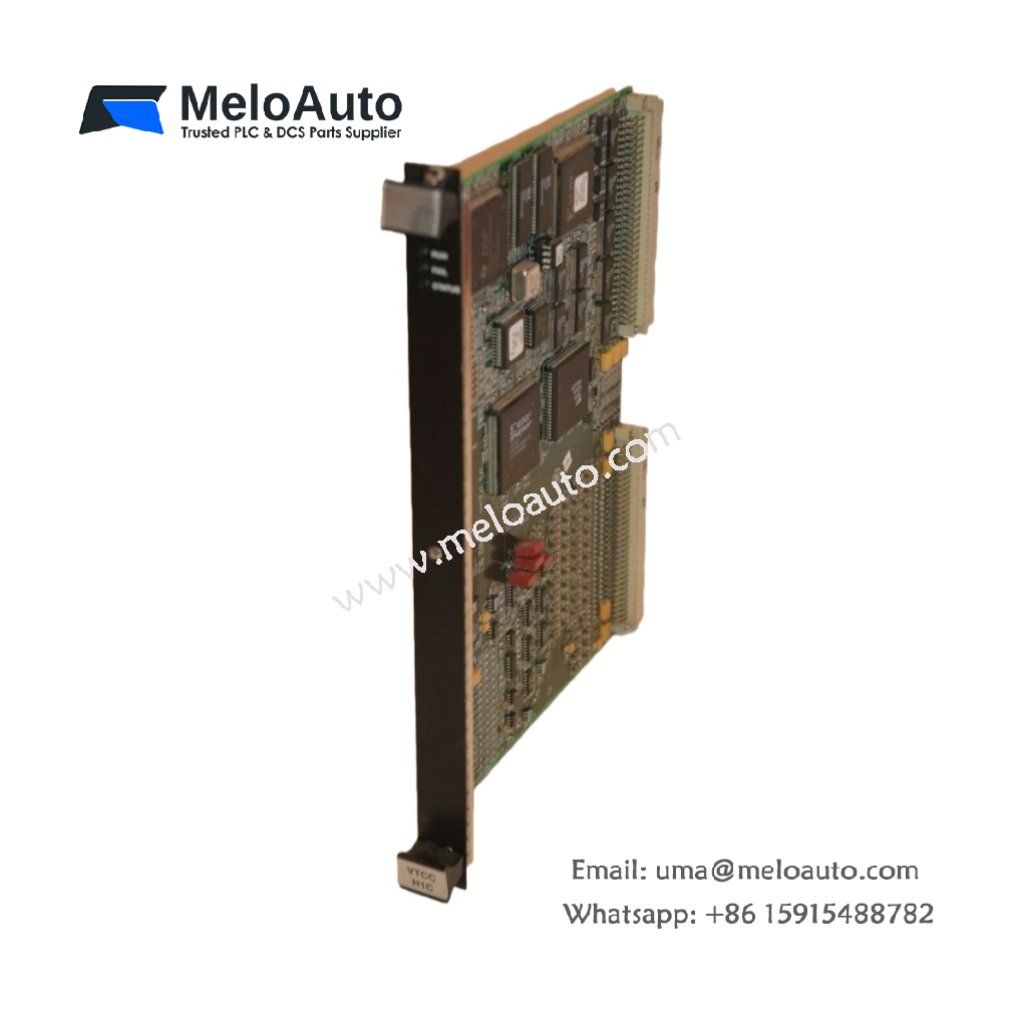

GE IS200VTCCH1CBB Thermocouple Input Terminal Board

Overview

The GE IS200VTCCH1CBB thermocouple input terminal board is a critical component designed for integration with the Mark VI Turbine Control System. This board supports multiple thermocouple types, including E, J, K, S, and T, making it highly versatile for applications in gas, steam, and wind turbines. Compared to the previous Mark V Series, the Mark VI series offers significant improvements in functionality and application range, including advanced features for controlling wind turbines.

Key Features

• Wide Thermocouple Compatibility: The IS200VTCCH1CBB supports a range of thermocouple types, including E, J, K, S, and T, making it ideal for diverse applications.
• Mark VI Integration: This terminal board integrates seamlessly with the Mark VI Turbine Control System, enhancing turbine control and automation.
• Enhanced Technology: The Mark VI series offers expanded capabilities, including support for wind turbine systems, unlike the more limited Mark V Series.
• Durable Design: Built to withstand demanding industrial conditions, this board ensures reliable performance and long-term durability.

Technical Specifications

Description

The GE IS200VTCCH1CBB plays a vital role in the Mark VI Turbine Control System by providing accurate thermocouple input for temperature measurement. It supports various thermocouple types, including E, J, K, S, and T, allowing for flexible integration into different industrial systems. The board features four input channels, each with a dedicated Analog-to-Digital Converter (ADC), ensuring high accuracy and reliability in temperature monitoring.

This board excels in its resolution of 0.5°C or 0.5°F, making it suitable for precise temperature control. In addition, the IS200VTCCH1CBB includes high fault protection, detecting issues such as short circuits, overrange, and open circuits. This functionality helps maintain system integrity and minimizes downtime.

The Mark VI series offers significant advancements over the Mark V Series by expanding its application range to include wind turbines, in addition to gas and steam turbines. This expansion is facilitated by advanced control and monitoring capabilities, which improve both system efficiency and safety.

Applications

• Gas Turbine Systems: The IS200VTCCH1CBB provides precise temperature control in gas turbines, ensuring efficient operation.
• Steam Turbine Control: This board plays a key role in monitoring steam turbines, ensuring they remain within safe operating temperatures.
• Wind Turbine Systems: With the Mark VI system’s expansion, this board supports wind turbines, offering increased versatility.
• Industrial Automation: Ideal for automated control systems, it ensures reliable temperature readings and consistent system performance.

Why Choose the GE IS200VTCCH1CBB?

The GE IS200VTCCH1CBB is designed for maximum flexibility, supporting multiple thermocouple types. It integrates seamlessly with the Mark VI Turbine Control System, offering enhanced control for gas, steam, and wind turbines. Its precise temperature monitoring, along with fault detection capabilities, makes it a valuable addition to any turbine control system. The board’s robust design ensures reliable operation even in harsh industrial conditions, making it an excellent choice for critical applications.
