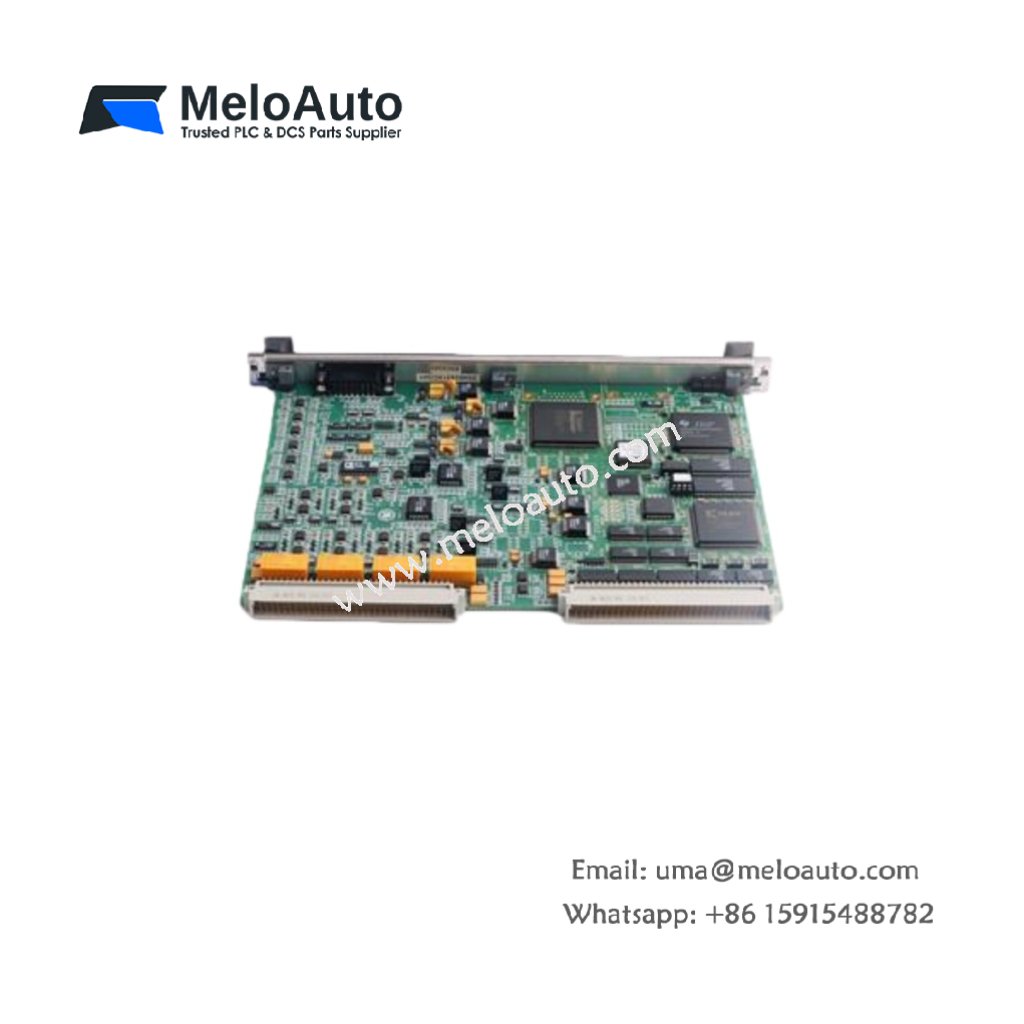

GE IS200VSVOH1BDC IS200VSVOH1B Servo Control Card

Overview

The GE IS200VSVOH1BDC IS200VSVOH1B is a Servo Control Card specifically designed for steam and gas turbine control systems. It plays a critical role in controlling servo valves, ensuring precise operation. This card is ideal for applications that require accurate speed control and valve regulation. It also integrates seamlessly with servo valve interfaces or pulse rate inputs.

Key Features

Servo Valve Interface I/O: The IS200VSVOH1BDC interfaces directly with servo valves, providing selectable current drivers and feedback from LVDRs, LVDTs, and pulse-rate inputs from flow divider feedback.
Pulse Rate Inputs: Operating in a frequency range of 2-14 kHz, this card excels in managing flow divider feedback in servo loops.
Speed Sensor Compatibility: It interfaces with both active and passive speed sensors, while supporting additional passive sensors when used with a Backup Protection Module.
Coil Servo Configuration: The card supports configurations of 2 or 3 coil servos, with the 3-coil configuration being ideal for TMR (Triple Modular Redundancy) applications to boost system reliability.
LED Indicators: The card includes 3 LED indicators for monitoring operational status: Run, Fail, and Status.

Technical Specifications

Parameter	Specification
Model Number	IS200VSVOH1BDC, IS200VSVOH1B
Manufacturer	GE Industrial Systems, General Electric Company
Model Type	Servo Control Card
Revision	BDC
Application	Servo Valve Interface
Coil Servo Quantity	2 or 3 (3 for TMR applications)
Frequency Range	2 – 14 kHz
Functional Acronym	VSVO
LED Indicators	3 (Run, Fail, Status)
Prime Mover Type	Steam or Gas Turbines
Speed Sensor Type	Active or Passive
Sufficient Sensitivity Range	2 Hz

Description

The GE IS200VSVOH1BDC IS200VSVOH1B is an essential component for turbine control systems. This card manages servo valve interfaces and enables precise speed control. It operates efficiently within the 2-14 kHz pulse rate input range, making it ideal for flow divider feedback in servo loops.

With support for both active and passive speed sensors, the card ensures flexibility in sensor configuration. The 3-coil servo configuration is particularly beneficial in TMR (Triple Modular Redundancy) applications, enhancing reliability. The card also features LED indicators that allow for quick visual status checks.

This model works with multiple sensor types and supports various configurations, making it a reliable solution for controlling turbine systems. It also integrates easily with backup systems for added protection.
