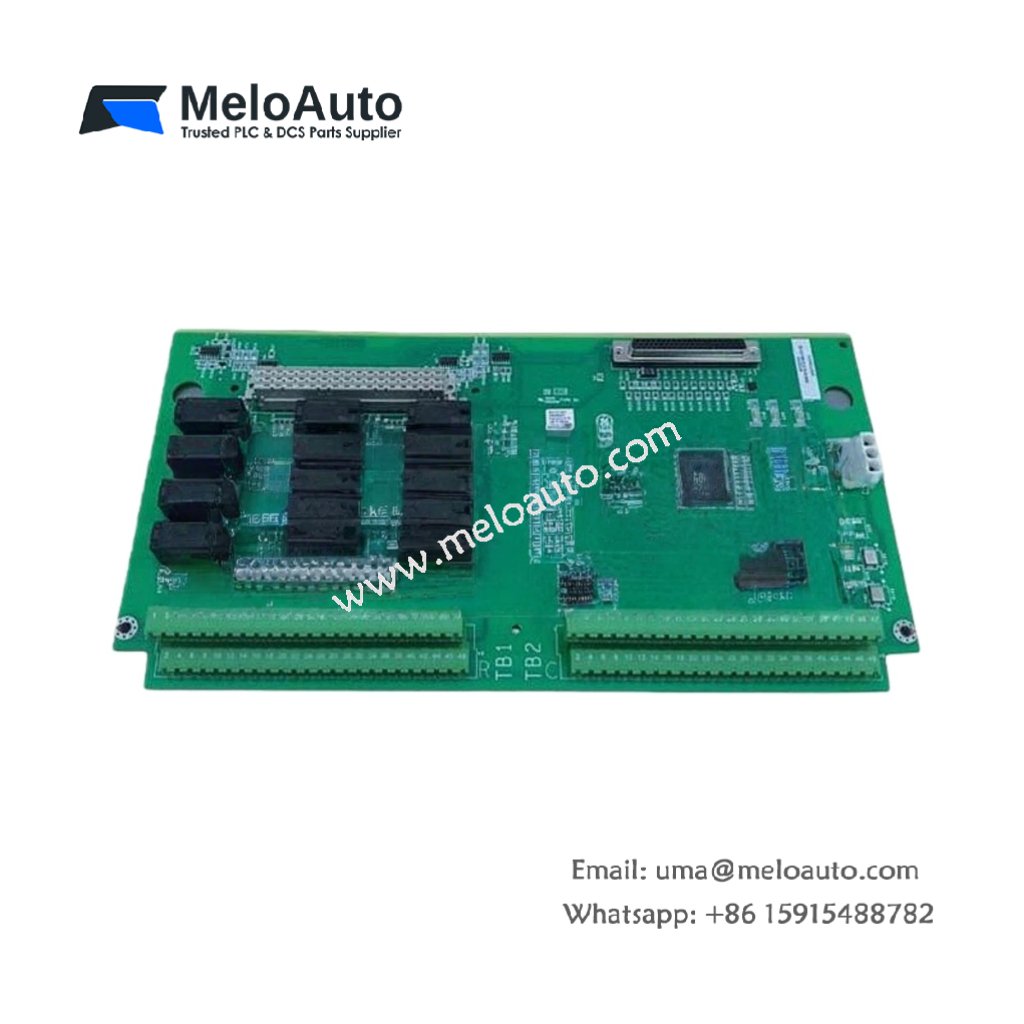

GE IS200TDBSH2A IS200TDBSH2AAA Terminal Board

Overview

The GE IS200TDBSH2A IS200TDBSH2AAA is a high-performance terminal board designed for use in the GE Mark VI and Mark VIe control systems. This component is crucial for connecting various input and output signals within industrial automation systems. With its robust design and high reliability, the IS200TDBSH2A IS200TDBSH2AAA is ideal for turbine control systems, providing effective communication and data transfer between modules.

Technical Specifications

Specification	Details
Manufacturer	General Electric (GE)
Product Type	Discrete Terminal Board
Series	Mark VI / Mark VIe
Model Number	IS200TDBSH2A IS200TDBSH2AAA
Function	Connects digital and analog I/O signals
Processor	AMD G-Series processor
Connectivity	D-type connectors for I/O packs
Redundancy	Supports Triple Modular Redundancy (TMR)
Self-Diagnostics	Built-in self-diagnostic functions
Physical Design	Rack-mounted large printed circuit board (PCB)
Connector Type	High-quality terminals with noise suppression
Application	Industrial control systems, turbine control
Weight	3 lbs (1.36 kg)

Key Features

Triple Modular Redundancy (TMR): The IS200TDBSH2A IS200TDBSH2AAA supports TMR architecture, ensuring high availability and reliability for critical control systems. Multiple controllers communicate with the board, improving fault tolerance and system performance.
High-Performance Processor: Featuring a powerful AMD G-Series processor, this terminal board efficiently processes control applications, making it ideal for demanding automation tasks in power generation and turbine control systems.
Self-Diagnostics: The board includes comprehensive self-diagnostic capabilities, constantly monitoring its own health and status to ensure reliable operation.
Connectivity: The IS200TDBSH2A IS200TDBSH2AAA uses D-type connectors for I/O packs and high-quality terminals for signal handling. This design ensures robust signal transmission and noise suppression, critical for industrial environments.
Physical Design: Built as a large printed circuit board (PCB), the IS200TDBSH2A can be easily rack-mounted, making it compatible with various industrial control systems.

Variations and Revisions

IS200TDBSH2AAA: This variant typically refers to the base model or a specific revision of the terminal board, often distinguished by internal build revisions.
IS200TDBSH2ACC: Indicates another revision or configuration, which may include upgrades like conformal coating or other hardware/software modifications for enhanced protection and performance.

Applications

The GE IS200TDBSH2A terminal board is ideal for high-reliability applications, particularly in turbine control and industrial automation systems. It provides critical connectivity for digital and analog I/O signals, ensuring smooth and efficient communication between various components within the Mark VI and Mark VIe systems. Commonly used in power generation plants and other industrial environments, this terminal board ensures seamless integration within the Triple Modular Redundancy (TMR) architecture, enhancing system reliability.

Conclusion

The GE IS200TDBSH2A IS200TDBSH2AAA terminal board offers unmatched performance, reliability, and ease of integration within GE Mark VI and Mark VIe control systems. With its robust connectivity options, advanced self-diagnostics, and support for Triple Modular Redundancy (TMR), it is the perfect choice for high-performance applications, especially in turbine control systems.
