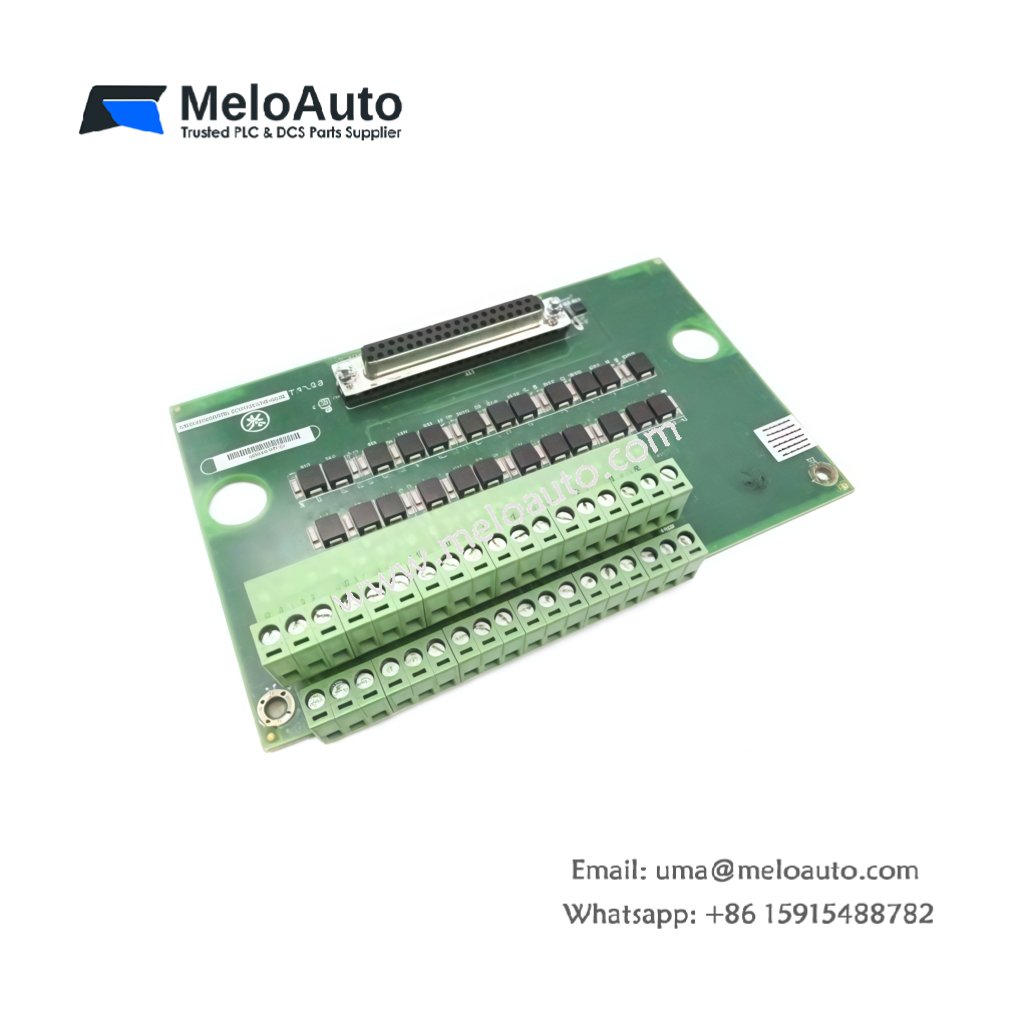

GE IS200SRTDH2A Mark VI Compact RTD Terminal Board

The GE IS200SRTDH2A board terminates RTD signals for the Mark VI system. This compact RTD terminal board connects Pt100 sensors to the input card. It provides organized wiring points for accurate temperature measurement. The board handles both 3-wire and 4-wire RTD configurations.

Technical Specifications of GE IS200SRTDH2A

Component Count and Board Construction

The GE IS200SRTDH2A board contains over 90 discrete components. You will find precision current source circuits on the board. Furthermore, the board includes filtering components for noise rejection. The assembly also features LED indicators for power and channel status.

Interfaces, Energy Storage, and Signal Routing

The GE IS200SRTDH2A provides screw terminal blocks for all RTD wiring. Moreover, the board uses minimal capacitors for noise filtering only. These capacitors store negligible energy for signal stability. Each channel includes a dedicated test point for troubleshooting.

Functional Logic and Application Context

This Mark VI board routes RTD signals from field sensors to the input card. It supports both 3-wire and 4-wire Pt100 configurations. The GE IS200SRTDH2A provides automatic lead resistance cancellation for 3-wire sensors. Additionally, it maintains signal integrity for accurate temperature readings. Consequently, the board ensures reliable bearing and winding temperature monitoring.

Installation and Environmental Limits

You must power down the system before servicing this terminal board. The operating temperature range spans -30°C to +65°C . Furthermore, the board requires proper shielded cable for long runs. Always verify the GE IS200SRTDH2A wiring matches your RTD configuration before connection.
