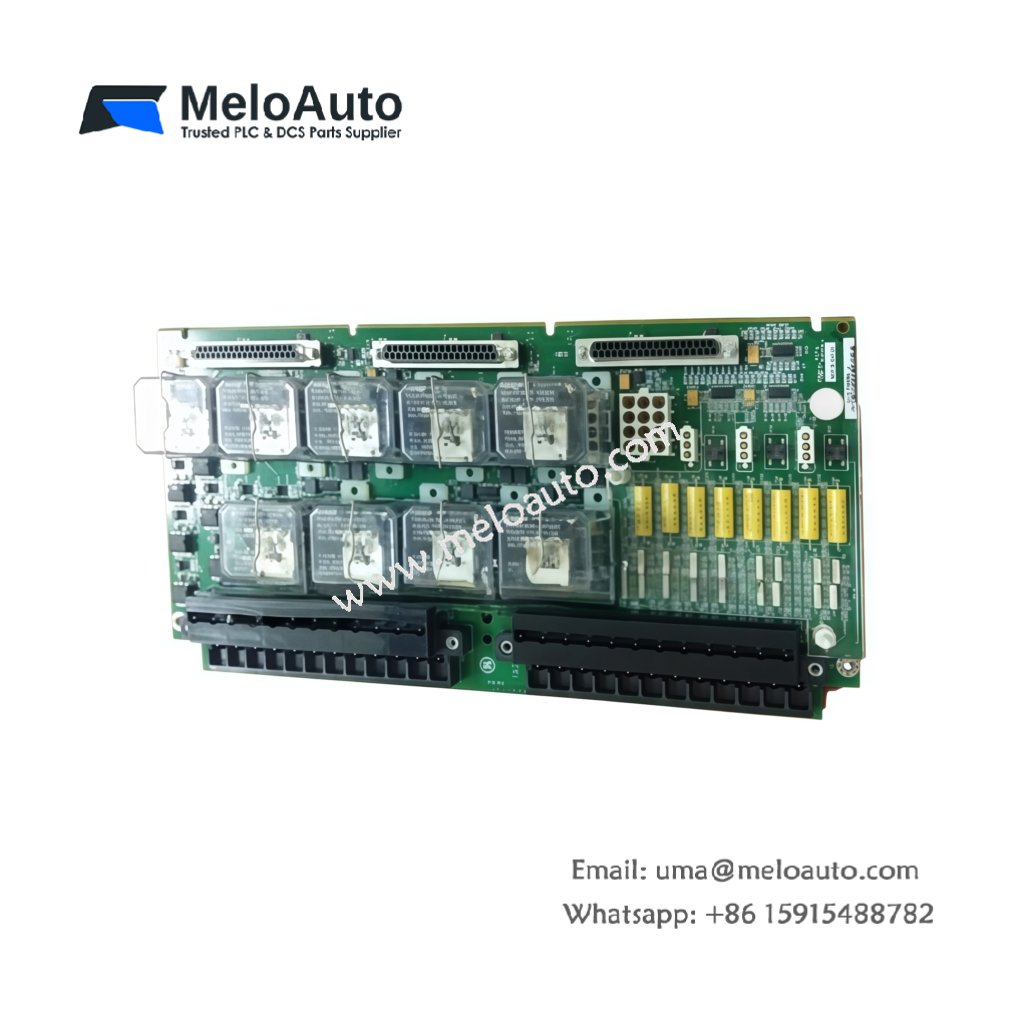

GE IS200RAPAG1B IS200RAPAG1BCA Primary Trip Terminal Board

The GE IS200RAPAG1B IS200RAPAG1BCA serves as a critical Primary Trip Terminal Board within the Mark VI series. This board manages essential protection functions for industrial gas and steam turbine control systems. It provides a robust hardware interface for trip logic circuits, ensuring operational safety.

Technical Specifications & Design Features

This assembly features a multilayer printed circuit board (PCB) with high-grade epoxy laminate. It incorporates discrete surface-mount components for improved vibration resistance. Furthermore, the board utilizes gold-plated edge connectors for reliable signal transmission.

Functional Overview and Integration

This terminal board interfaces directly with the turbine’s protection system. It receives logic commands from the main processor to execute high-speed trip actions. Consequently, it ensures immediate shutdown during critical fault conditions.

The IS200RAPAG1B includes dedicated filtering circuits to suppress electrical noise. Additionally, it features a dedicated energy storage module to maintain trip capability during momentary power loss. This design ensures uninterrupted protection even under unstable power conditions.

Reliability and Physical Attributes

Engineers prefer this board for its high mean time between failures (MTBF). The assembly contains 128 individual active components, including resistors, capacitors, and integrated circuits. Its compact 7.5 x 3.0 inch form factor allows for easy integration into existing rack systems.

Weighing only 0.65 lbs, this unit reduces mechanical stress on the backplane. Its conformal coating protects against moisture and particulate contamination. Therefore, this board offers exceptional durability in harsh industrial environments. The General Electric Mark VI series relies on such robust designs for consistent turbine control.
