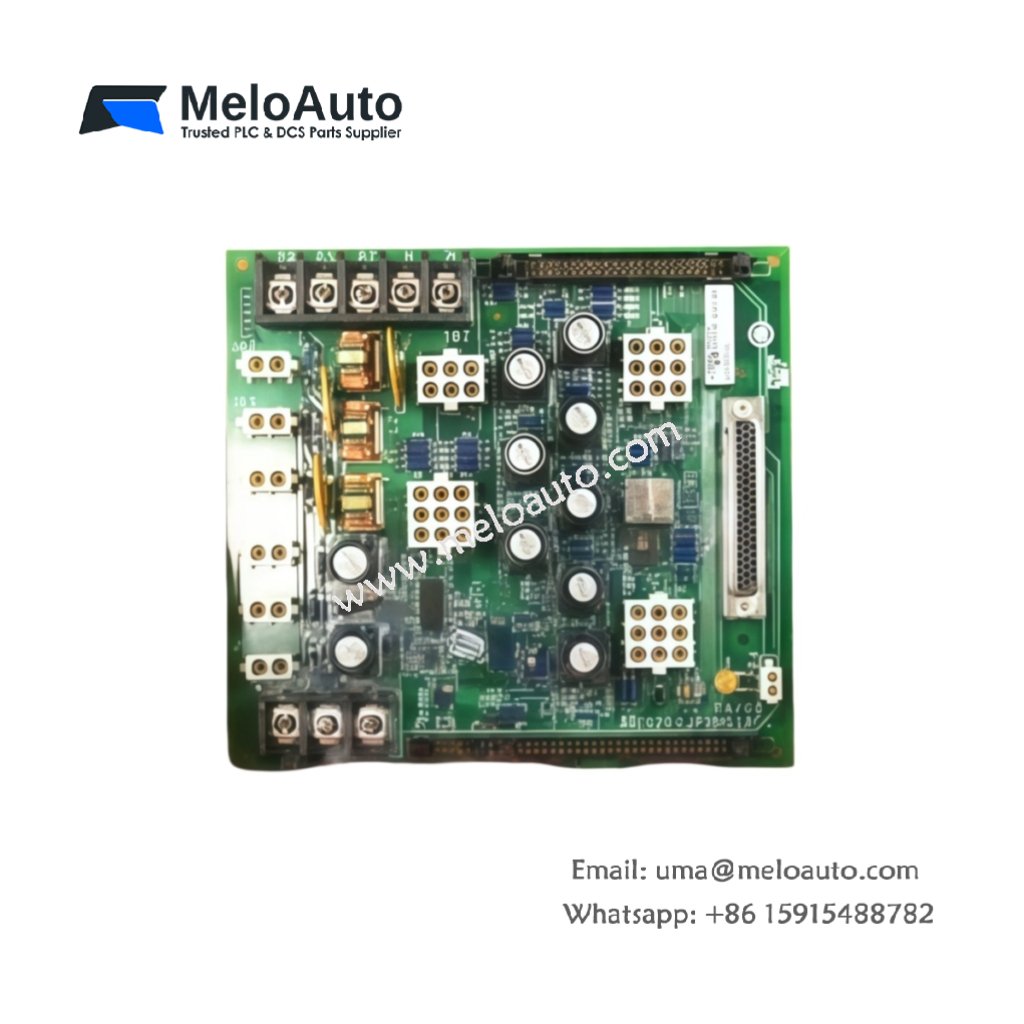

GE IS200JPDMG1A IS200JPDMG1ACC Power Distribution Board

The GE IS200JPDMG1A and GE IS200JPDMG1ACC function as reliable power distribution boards for turbine systems. These modules belong to the Mark VI series from General Electric. They distribute regulated DC power to various I/O and control boards. Moreover, these units include built-in filtering for clean power delivery.

Technical Specifications

The table below lists the precise parameters for the GE IS200JPDMG1A and IS200JPDMG1ACC .

Parameter	Specification
Manufacturer	General Electric (GE)
Full Model Numbers	GE IS200JPDMG1A , GE IS200JPDMG1ACC
Product Category	Power Distribution Board
Dimensions (H x W x D)	3.2 cm x 19.5 cm x 28.5 cm
Weight	0.58 kg (1.28 lbs)
Primary Interface	One 48-pin backplane connector plus terminal blocks
Distribution Channels	10 individually fused output channels
Component Count	Approximately 160 resistors, 70 capacitors, and 10 fuses
Energy Storage	Six 220 µF electrolytic capacitors for voltage smoothing
Input Voltage	24 VDC or 48 VDC (jumper configurable)
Operating Temperature	-30°C to +65°C

Functional Design and Power Distribution

The GE IS200JPDMG1ACC connects directly to the main backplane of the cabinet. It accepts raw DC input from an external source without additional adapters. Then, this board filters the incoming power using multiple capacitors. Each output channel provides overcurrent protection through a dedicated fuse. Therefore, the IS200JPDMG1A isolates electrical faults to a single branch.

Installation and Compatibility Notes

You must select the correct input voltage jumper before powering this board. The GE IS200JPDMG1A fits exclusively into Mark VI series turbine cabinets. Always replace faulty units with identical GE board revisions. Additionally, inspect each fuse for proper rating before installation. This practice prevents unexpected power loss during turbine operation.
