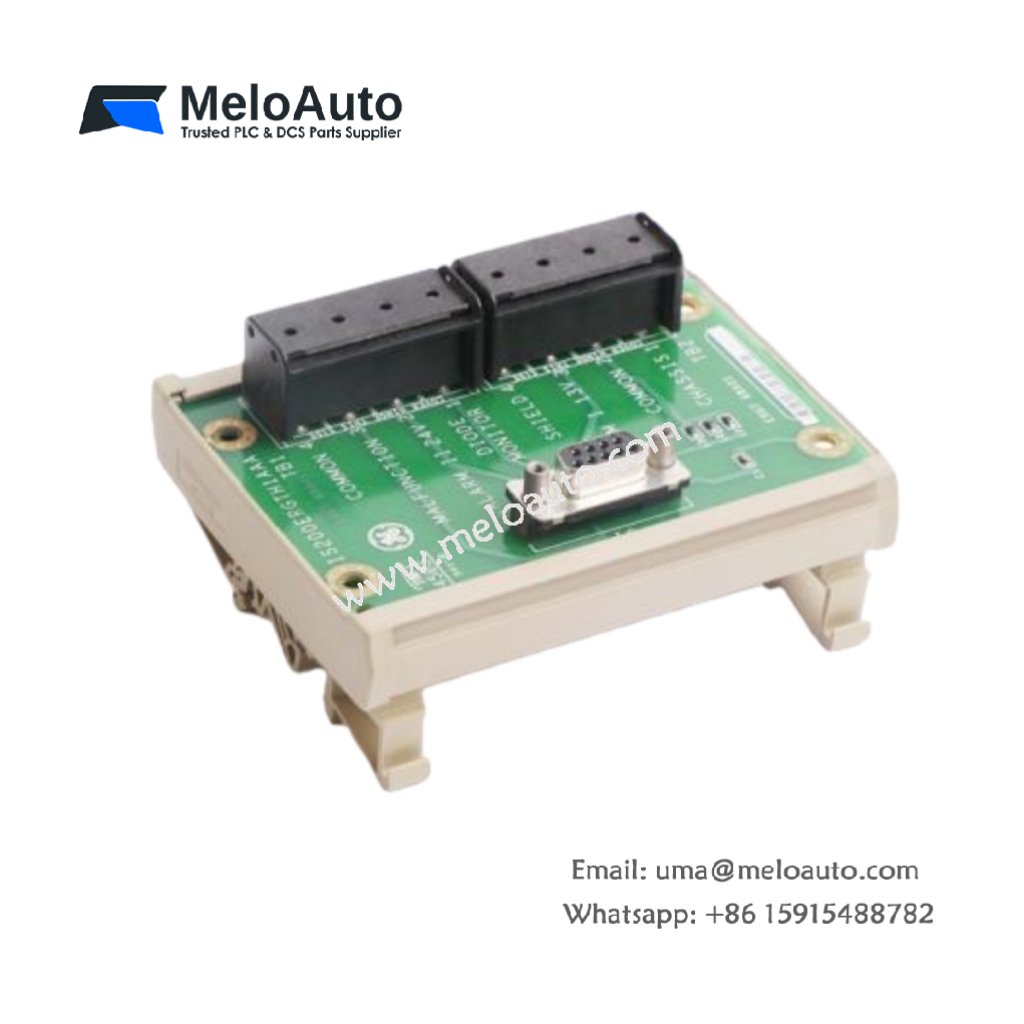

GE IS200ERGTH1AAA Exciter Regulator Third-Party Ground Detector Terminal Board

The GE IS200ERGTH1AAA is an essential terminal board designed specifically for the EX2100 Series by General Electric. This module plays a pivotal role in facilitating third-party ground detection for excitation turbine control systems. It efficiently connects the Exciter Regulator Options Card (EROC) to ground detection devices, ensuring reliable and safe operation.

Key Features

• Part Number: IS200ERGTH1AAA
• Manufacturer: General Electric
• Series: EX2100
• Product Type: Exciter Regulator Third-party Ground Detection Terminal Board
• Analog Output: 0-20 mA output for effective and consistent signal transmission.
• Excitation Voltage: Operates at 24 VDC, ensuring robust performance in demanding conditions.
• Processor: Equipped with a 32-bit digital signal processor for accurate and fast signal processing.
• Temperature Range: Operates effectively within a temperature range of 30°C to 50°C, offering stable performance in varying environmental conditions.
• Multi-output Support: Supports multiple output signals, including ground alarms and fault monitors, ensuring comprehensive system monitoring.

Technical Specifications

Description

The GE IS200ERGTH1AAA terminal board serves as a critical interface for third-party ground detection within EX2100 Series excitation turbine control systems. It ensures safe and reliable operation by connecting the Exciter Regulator Options Card (EROC) to ground detection equipment. This connection helps detect ground faults in the system, allowing for quick responses to prevent failures or damage.

The 0-20 mA analog output ensures smooth and continuous signal transmission to ground detectors. Additionally, the 24 VDC excitation voltage supports robust performance even in challenging environments. The 32-bit digital signal processor optimizes signal processing, enabling precise monitoring and control.

This terminal board operates efficiently within a temperature range of 30°C to 50°C, making it suitable for a wide range of industrial environments. The maximum lead resistance of 15 ohms ensures minimal signal loss and maximum reliability. Furthermore, its multi-output capabilities make it ideal for integration with ground detectors and alarm systems, enhancing system safety.

Applications

The GE IS200ERGTH1AAA terminal board is primarily used in:

• Excitation Systems: Connecting ground detection equipment to EX2100 Series excitation regulators.
• Turbine Control Systems: Ensuring safe operation and monitoring of turbine systems.
• Industrial Automation: Interfacing with ground fault monitors and alarms for enhanced safety and system performance.

Advantages

• Reliable Signal Transmission: The 0-20 mA output provides steady, reliable signals to ground detection systems.
• Robust Performance: Operates efficiently at 24 VDC and within a broad temperature range.
• Precision Signal Processing: The 32-bit digital processor ensures accurate and fast processing of signals.
• Multi-output Capability: Supports multiple output signals for comprehensive monitoring, including alarms and fault alerts.
