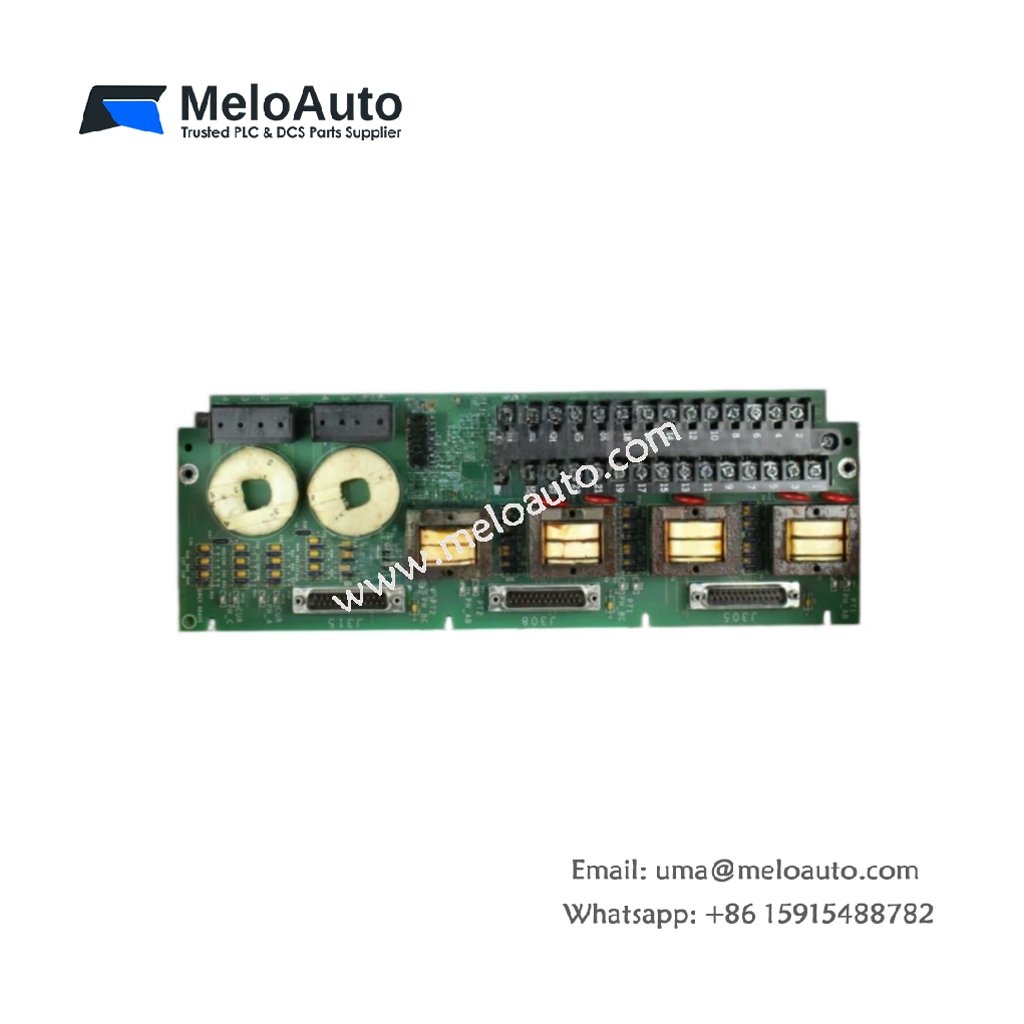

GE IS200EPCTG1A IS200EPCTG1AAA Exciter Board

Core Function and System Role

The GE IS200EPCTG1A generates firing pulses for main exciter thyristors. Specifically, this board controls generator field current in Mark VI systems. Moreover, it receives synchronization signals from the main regulator. The IS200EPCTG1AAA variant includes enhanced gate drive amplification for higher current applications.

Technical Specifications Overview

This exciter board features six independent SCR firing channels. Each channel delivers 2 A peak gate current for reliable thyristor turn-on. Furthermore, the board accepts 24 Vdc logic power for internal circuitry.

Connector Layout and Component Count

The board uses three 50-pin D-sub connectors for control interfaces. For instance, connector P1 receives firing angle commands from the regulator. Meanwhile, connector P2 routes gate pulses to external SCR stacks. Connector P3 provides status feedback for diagnostic purposes. A separate terminal block supplies 24 Vdc power input. The IS200EPCTG1AAA adds six high-speed MOSFET drivers on the output stage.

Energy Storage and Pulse Integrity

This exciter board includes substantial local capacitance for consistent gate drive. Specifically, six 680 µF capacitors store energy for pulse shaping. Therefore, the board maintains stable firing even during AC line disturbances. Additionally, onboard LED indicators show each channel’s firing status. For example, green LEDs flash with every gate pulse. Red LEDs warn you of short circuits or open gate connections.

Diagnostic Features and Fault Protection

The board continuously verifies each SCR gate for proper current flow. Consequently, it detects misfires within half an AC cycle. Moreover, the GE IS200EPCTG1A IS200EPCTG1AAA includes desaturation detection on all output transistors. This feature prevents catastrophic damage from output shorts. An onboard fault relay reports any channel error to the main controller.

Maintenance and Hot Replacement

You can replace this exciter board without shutting down the generator. Thus, mean time to repair remains under fifteen minutes. The board stores no calibration parameters in local memory. Therefore, you simply install the replacement and resume normal field control.

Industrial Applications

This exciter board works inside GE Mark VI excitation panels. For reliable GE generator field regulation, the IS200EPCTG1A and IS200EPCTG1AAA deliver exceptional performance. They provide stable excitation for steam, gas, and hydro generators.
