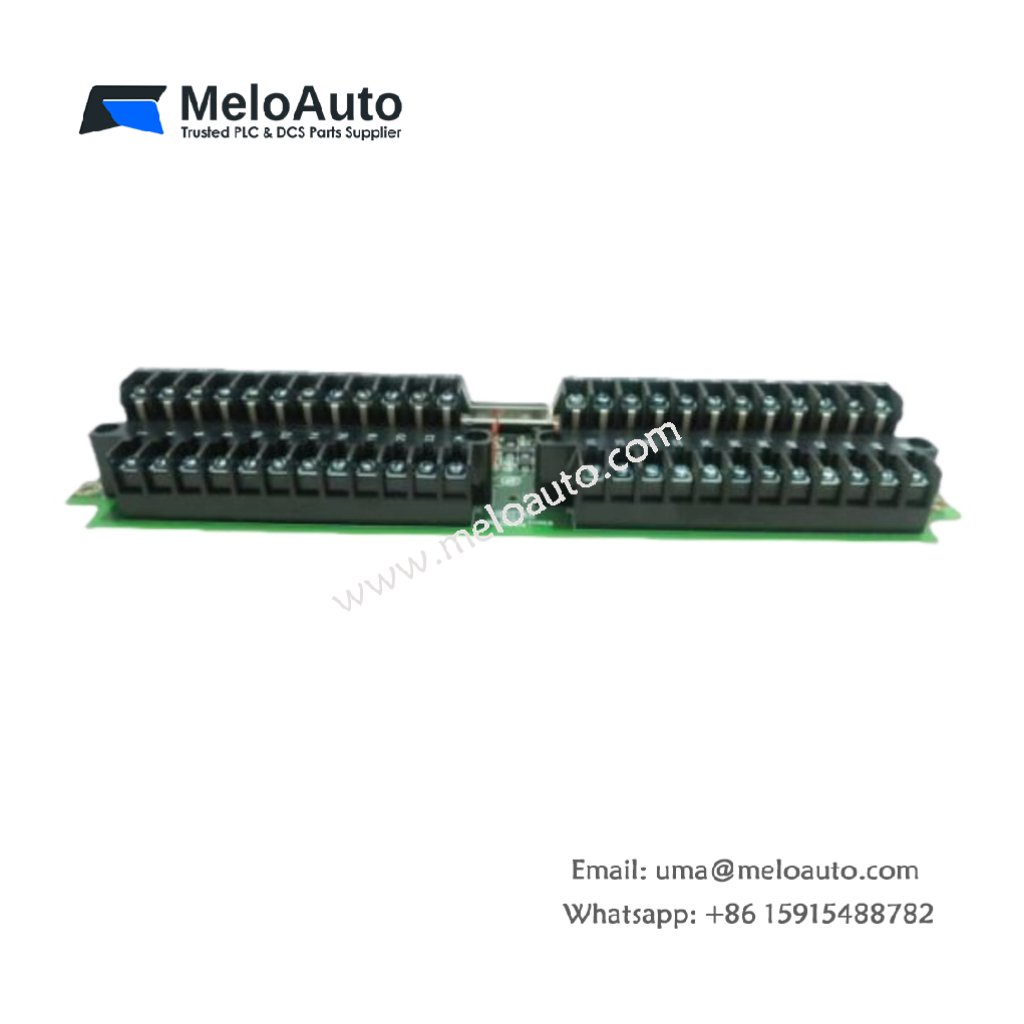

GE IS200EGPAG1B Exciter Gate Pulse Amplifier Board

The GE IS200EGPAG1B is a high-performance exciter gate pulse amplifier board designed for use in industrial automation and control systems. This module, part of the GE Speedtronic control system, ensures efficient operation by amplifying pulse signals to the exciter gate, enhancing the performance and stability of excitation control in large-scale industrial machinery.

Key Features

Model: IS200EGPAG1B
Category: Exciter Gate Pulse Amplifier Board
Manufacturer: General Electric (GE)
Series: Speedtronic
Application: Used for excitation control in industrial turbine and generator systems.

Technical Specifications

Parameter	Specification
Voltage Input	24V to 48V DC
Current Output	1A maximum per output
Dimensions	6.5″ x 4.5″ x 1.0″ (165 mm x 114 mm x 25 mm)
Weight	0.4 kg (0.88 lbs)
Interface	High-speed signal interface
Component Count	Multiple transistors and resistors
Temperature Range	-40°C to 70°C
Mounting	Rack-mounted for easy integration
Power Consumption	0.3A
Signal Amplification	Pulse signal amplification for exciter gate operation

The IS200EGPAG1B amplifies signals within the exciter control loop, ensuring the proper regulation of the turbine’s excitation system. It operates within a voltage input range of 24V to 48V DC, and its output is capable of delivering 1A per channel to maintain steady excitation levels. With an operating temperature range of -40°C to 70°C, the module is designed to perform reliably even in harsh industrial environments.

This module’s compact design makes it ideal for rack-mounted installation, providing easy access and efficient operation. Additionally, its low power consumption of 0.3A ensures minimal load on the system, contributing to overall energy efficiency.

GE IS200EGPAG1B Features Overview

Efficient signal amplification: Amplifies pulse signals to regulate exciter gate operation with high precision.
Compact design: Designed for easy integration into control systems with minimal space requirements.
Robust performance: Operates reliably within a wide temperature range of -40°C to 70°C.
Energy-efficient: Consumes only 0.3A, ensuring low energy consumption while maintaining performance.

The IS200EGPAG1B board plays a vital role in ensuring precise excitation control, especially in turbine and generator applications. Its reliable operation and efficient performance make it an essential component in industrial automation systems.
