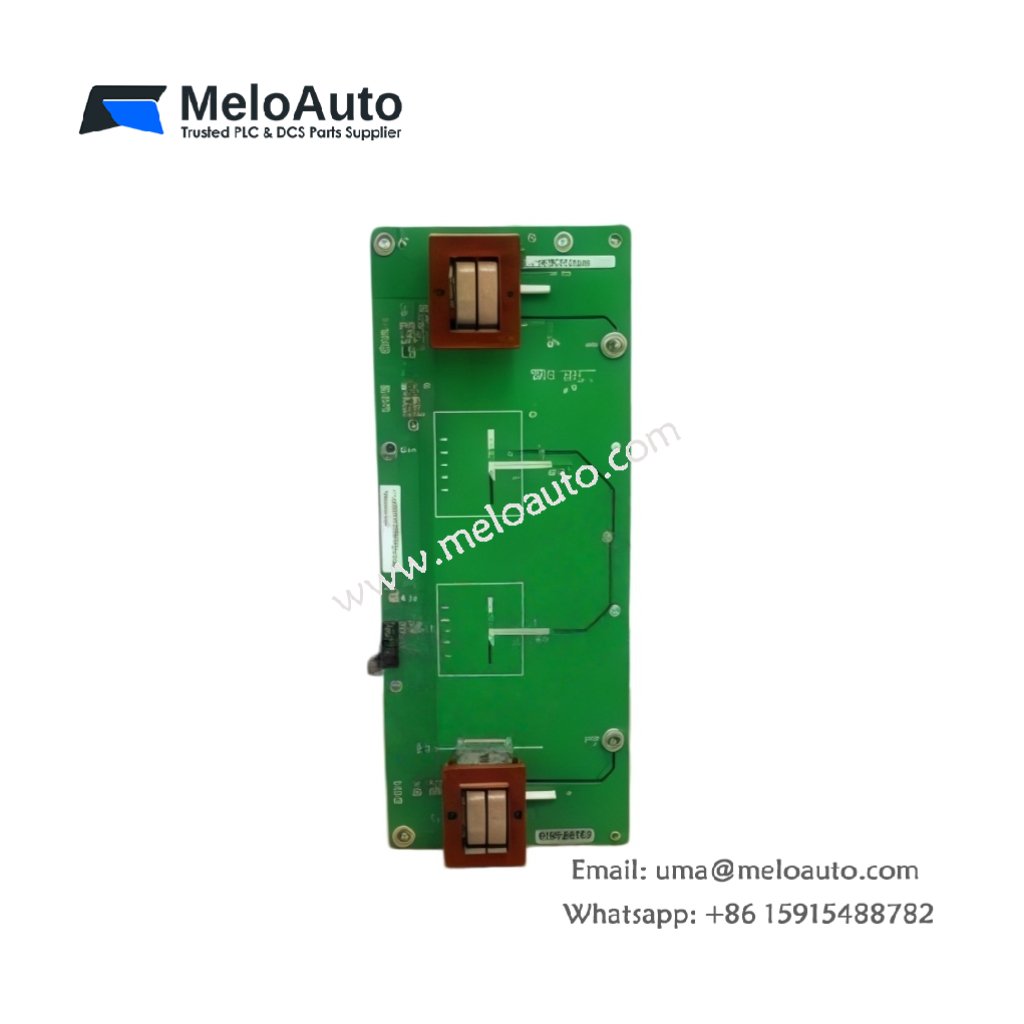

GE IS200EBACG2A IS200EBACG2ABA Printed Circuit Board

Technical Specifications

The GE IS200EBACG2A (also IS200EBACG2ABA) functions as an analog control board. This board measures 25.4 cm in length and 20.3 cm in width. It weighs approximately 0.8 kg. The unit contains 16 analog input channels and 8 analog output channels. A single 64-pin backplane connector provides system interface. Additionally, the board features one RJ45 port for diagnostic access. The GE IS200EBACG2A IS200EBACG2ABA stores 512 KB of calibration data in flash memory. It also holds no battery for energy storage. Instead, the board uses non-volatile EEPROM for critical parameters.

Parameter	Specification
Brand	General Electric (GE)
Model	GE IS200EBACG2A IS200EBACG2ABA
Category	Printed Circuit Board
Length	25.4 cm
Width	20.3 cm
Weight	~0.8 kg
Analog Inputs	16 channels (4-20 mA / 0-10 V)
Analog Outputs	8 channels (4-20 mA)
Main Connector	One 64-pin backplane connector
Diagnostic Port	One RJ45 Ethernet port
Flash Memory	512 KB calibration storage
Non-volatile Memory	64 KB EEPROM
Energy Storage	None (battery-free)

Design and Integration

This GE IS200EBACG2A IS200EBACG2ABA handles analog signal processing for Mark VI turbines. The 16 input channels accept 4-20 mA or 0-10 V signals. Each channel includes 16-bit resolution for precise measurements. Meanwhile, the 8 output channels provide 4-20 mA control signals. Therefore, the board connects field sensors to the main controller. The RJ45 port allows direct laptop connection for diagnostics. For a different control component, see the RMS-TSG-TZ-C on Alibaba. However, that static trip relay focuses on protection functions.

Reliability and Operation

The GE IS200EBACG2A IS200EBACG2ABA operates from -30°C to +65°C. Its EEPROM retains calibration data without any battery. Consequently, you avoid periodic memory backup maintenance. The board meets GE’s accuracy specification of ±0.1% of full scale. Each unit undergoes factory testing for all 24 analog channels.
