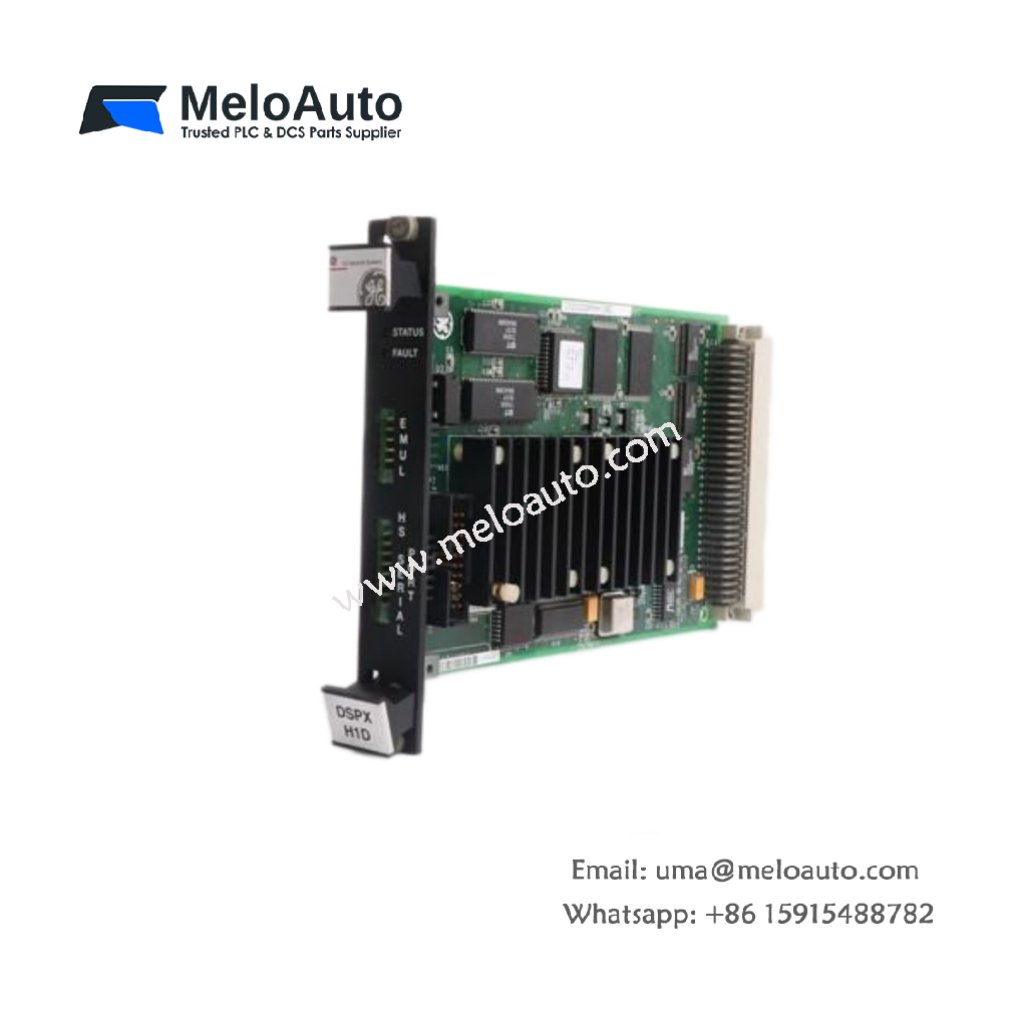

GE IS200DSPXH1D IS200DSPXH1DBC Printed Circuit Board

Technical Specifications

The GE IS200DSPXH1D (also IS200DSPXH1DBC) functions as a critical printed circuit board. This board measures 30.5 cm in length and 25.4 cm in width. It weighs approximately 1.1 kg. The unit contains three dedicated processor cores for signal handling. A 64-pin backplane connector provides system interface. Moreover, the board includes two RJ45 Ethernet ports for network communication. The GE IS200DSPXH1D IS200DSPXH1DBC stores 1 MB of firmware in flash memory. It also holds 512 KB of dynamic operational data. This module uses no battery for energy storage.

Parameter	Specification
Brand	General Electric (GE)
Model	GE IS200DSPXH1D IS200DSPXH1DBC
Category	Printed Circuit Board
Length	30.5 cm
Width	25.4 cm
Weight	~1.1 kg
Processor Cores	Three dedicated cores
Main Connector	One 64-pin backplane connector
Network Ports	Two RJ45 Ethernet ports
Flash Memory	1 MB firmware storage
RAM	512 KB operational data
Energy Storage	None (battery-free)

Design and Integration

This GE IS200DSPXH1D IS200DSPXH1DBC handles digital signal processing for Mark VI turbines. The three cores manage separate control loops simultaneously. Therefore, the board achieves real-time response without latency. It accepts 24 V DC input from the system backplane. Then, it outputs processed signals to actuator modules. The two Ethernet ports support daisy-chaining multiple boards. For reference, see a similar static trip relay like the RMS-TSG-TZ-C on Alibaba. However, that device serves a different protection function.

Reliability and Operation

The GE IS200DSPXH1D IS200DSPXH1DBC operates from -30°C to +65°C. Its flash memory retains firmware without any external battery. Consequently, you avoid maintenance for memory backup. The board meets GE vibration standards for industrial environments. Each unit undergoes thermal cycling tests before shipping.
