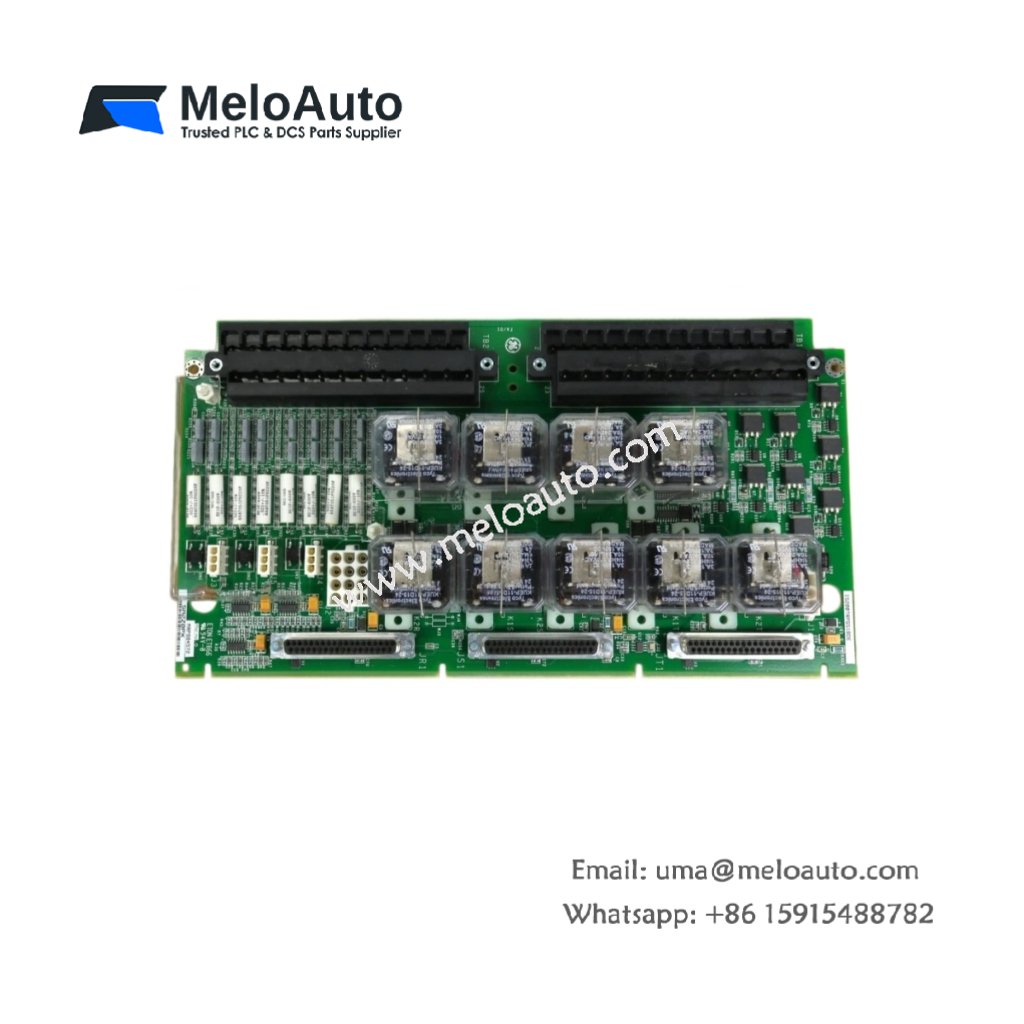

The IS200DSPXH1B IS200DSPXH1BDB functions as a digital signal processor expansion board. This printed circuit board belongs to the Mark VI Speedtronic series from General Electric. The IS200DSPXH1B serves as the standard version for DSP expansion. Its variant, the IS200DSPXH1BDB, includes a conformal coating for extra circuit protection. Both boards expand DSP capabilities for steam and gas turbine control systems.
Core Technical Specifications
This board provides multiple DSP interface channels for signal processing. You will also find memory storage for data buffering. The board stores minimal energy but uses capacitors for signal integrity. Meanwhile, the backplane interface handles all power and data transfers.
| Parameter | Specification |
|---|---|
| Full Model No. | IS200DSPXH1B IS200DSPXH1BDB |
| Manufacturer | GE Industrial Systems (General Electric) |
| Series | Mark VI Speedtronic |
| Board Category | Printed Circuit Board (DSP Expansion) |
| Weight | Approximately 0.33 kg |
| Dimensions (H x W x D) | 6.0 cm x 23.0 cm x 3.0 cm |
| DSP Interface Channels | 8 expansion interface channels |
| Memory Storage | 16 MB SDRAM buffer |
| Processing Speed | 100 MHz DSP core |
| Data Throughput | 200 MB/s maximum |
| Terminal Type | Screw terminal connectors |
| Backplane Interface | VME64 compatible |
| Energy Storage | Small capacitors for signal conditioning |
| Coating (for BDB) | Conformal coated against moisture and dust |
Installation and System Integration
Install the IS200DSPXH1B IS200DSPXH1BDB into any standard VME rack slot. The board connects directly to DSP modules through its backplane interface. Meanwhile, the backplane supplies power and communication to the board. Therefore, proper insertion ensures reliable DSP expansion.
