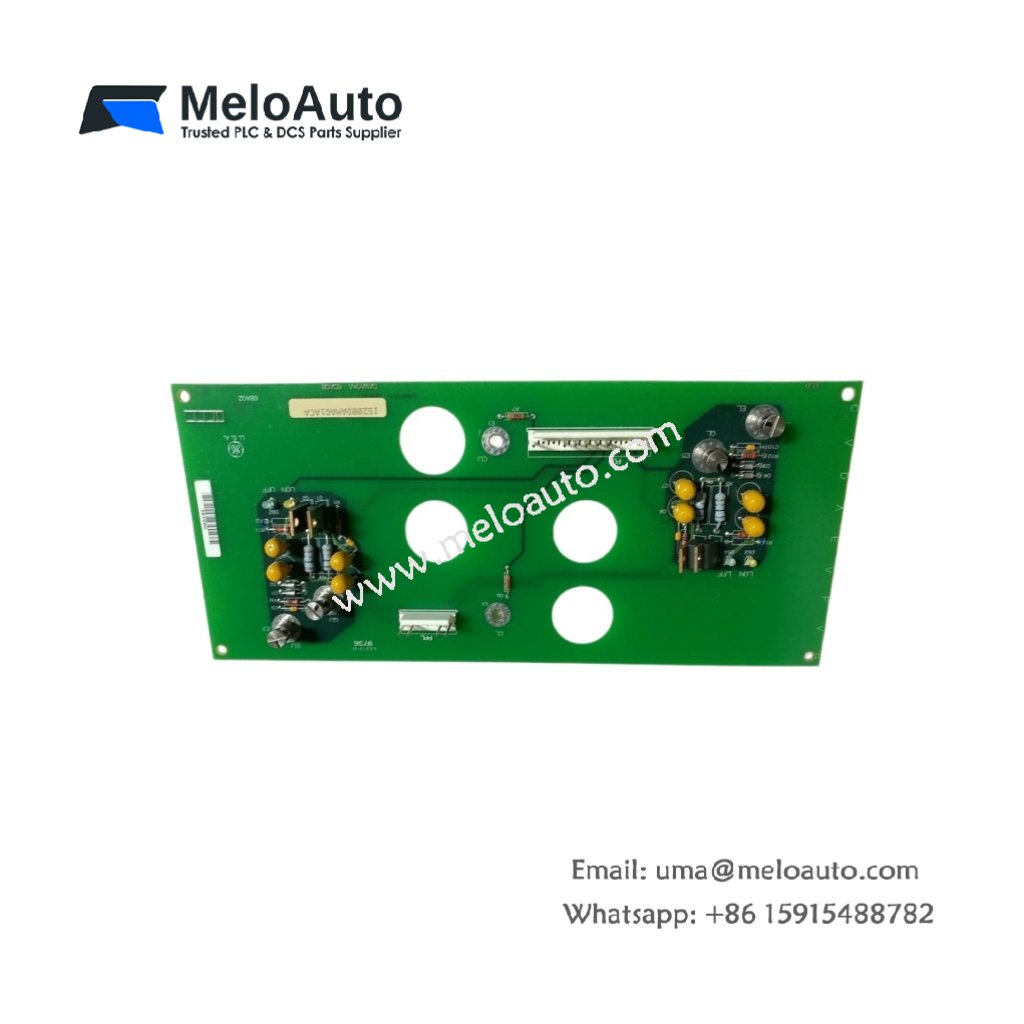

GE IS200DAMAG1A IS200DAMAG1ACA Speedtronic Board

The GE IS200DAMAG1A IS200DAMAG1ACA serves as a critical analog I/O module for the Mark VI series. This board manages speed and turbine control signals with high reliability. You will find this unit in many industrial automation systems. General Electric designed this card for the Speedtronic turbine control platform. Its robust construction ensures stable performance in harsh environments.

Technical Specifications

This board integrates over 120 discrete components onto a single PCB. Its dimensions measure roughly 5.2 inches wide by 8.5 inches high. The total weight reaches about 0.95 kilograms including the metal bracket. Three 50-pin ribbon connectors handle analog input and output signals. A separate terminal block provides auxiliary power connections. The design stores up to 450 joules of capacitive energy for stable signal processing.

Functional Layout and Signal Management

The GE IS200DAMAG1A IS200DAMAG1ACA optimizes signal flow for precise turbine speed readings. Each component placement reduces noise between adjacent analog channels. Moreover, the board filters incoming signals before passing them to the main processor. This variant includes upgraded capacitors for longer service life. General Electric specifically designed this card for the Mark VI Speedtronic system. You can replace an older board with this unit without changing the rack configuration.

Installation Guidelines and Compatibility

This analog I/O board mounts directly into a standard Mark VI rack slot. Always disconnect system power before handling the GE IS200DAMAG1A IS200DAMAG1ACA. The card works with existing GE turbine sensors and actuators. Verify your firmware revision supports this variant. This board maintains backward compatibility with earlier Mark VI versions. Proper installation ensures accurate speed control and system protection.
