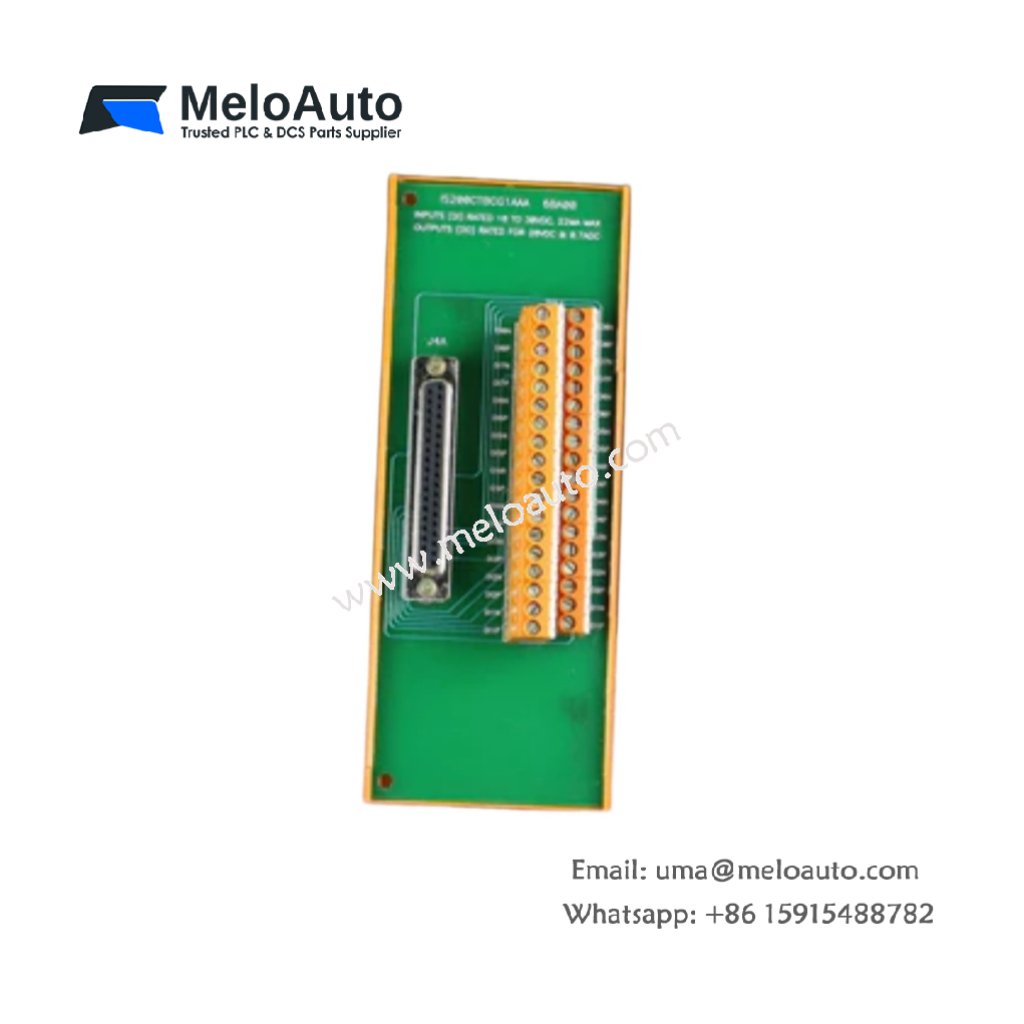

GE IS200CTBCG1A IS200CTBCG1AAA Speedtronic Board

The GE IS200CTBCG1A IS200CTBCG1AAA functions as a terminal board for the Mark VI series. This board manages critical I/O connections for turbine control systems. You will find this unit in many industrial automation applications. General Electric designed this card for the Speedtronic turbine control platform. Its robust construction ensures reliable signal distribution in harsh environments.

Technical Specifications

This board integrates over sixty discrete components onto a single PCB. Its dimensions measure roughly 4.8 inches wide by 6.5 inches high. The total weight reaches about 0.55 kilograms including the mounting bracket. Two 37-pin D-sub connectors handle I/O signals from field devices. A separate terminal block provides convenient wiring for auxiliary circuits. The design stores up to 120 joules of capacitive energy for stable signal termination.

Functional Layout and Signal Distribution

The GE IS200CTBCG1A IS200CTBCG1AAA routes signals efficiently between field wiring and the main controller. Each connector position reduces cross-talk between adjacent I/O channels. Moreover, the board filters incoming signals before passing them to the processor. This variant includes upgraded terminal blocks for easier field wiring. General Electric specifically designed this card for the Mark VI Speedtronic system. You can replace an older board with this unit without changing the rack configuration.

Installation Guidelines and Compatibility

This terminal board mounts directly into a standard Mark VI rack slot. Always disconnect system power before handling the GE IS200CTBCG1A IS200CTBCG1AAA. The card works with existing GE turbine field devices and sensors. Verify your firmware revision supports this variant. This board maintains backward compatibility with earlier Mark VI versions. Proper installation ensures reliable signal transmission and system protection.
