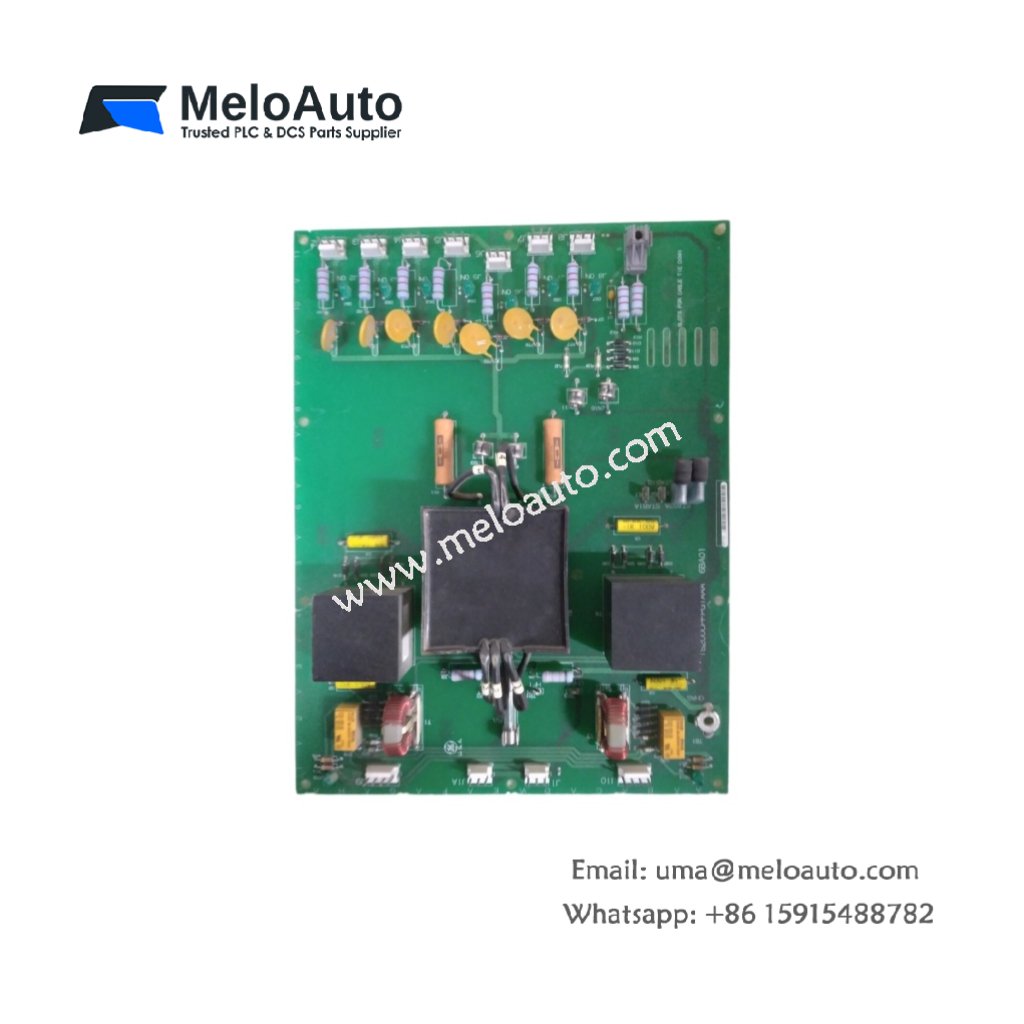

GE IS200CPFPG1A IS200CPFPG1AAA Terminal Board

The GE IS200CPFPG1A IS200CPFPG1AAA serves as a dedicated terminal board for the Mark VI series. This board manages power distribution and field I/O connections for turbine control. You will find this unit in many industrial automation systems. General Electric designed this card for the Speedtronic turbine control platform. Its robust construction ensures reliable signal termination in harsh environments.

Technical Specifications

This board integrates over seventy-five discrete components onto a single PCB. Its dimensions measure roughly 5.0 inches wide by 7.2 inches high. The total weight reaches about 0.65 kilograms including the mounting bracket. Four 25-pin D-sub connectors handle power and I/O signals from field devices. Two separate terminal blocks provide convenient wiring for auxiliary circuits. The design stores up to 180 joules of capacitive energy for stable signal termination.

Functional Layout and Power Distribution

The GE IS200CPFPG1A IS200CPFPG1AAA routes power efficiently between the main controller and field devices. Each connector position reduces voltage drop across long cable runs. Moreover, the board filters incoming power before distributing it to downstream modules. This variant includes upgraded terminal blocks for easier field wiring. General Electric specifically designed this card for the Mark VI Speedtronic system. You can replace an older board with this unit without changing the rack configuration.

Installation Guidelines and Compatibility

This terminal board mounts directly into a standard Mark VI rack slot. Always disconnect system power before handling the GE IS200CPFPG1A IS200CPFPG1AAA. The card works with existing GE turbine field devices and power supplies. Verify your firmware revision supports this variant. This board maintains backward compatibility with earlier Mark VI versions. Proper installation ensures reliable power distribution and system protection.
