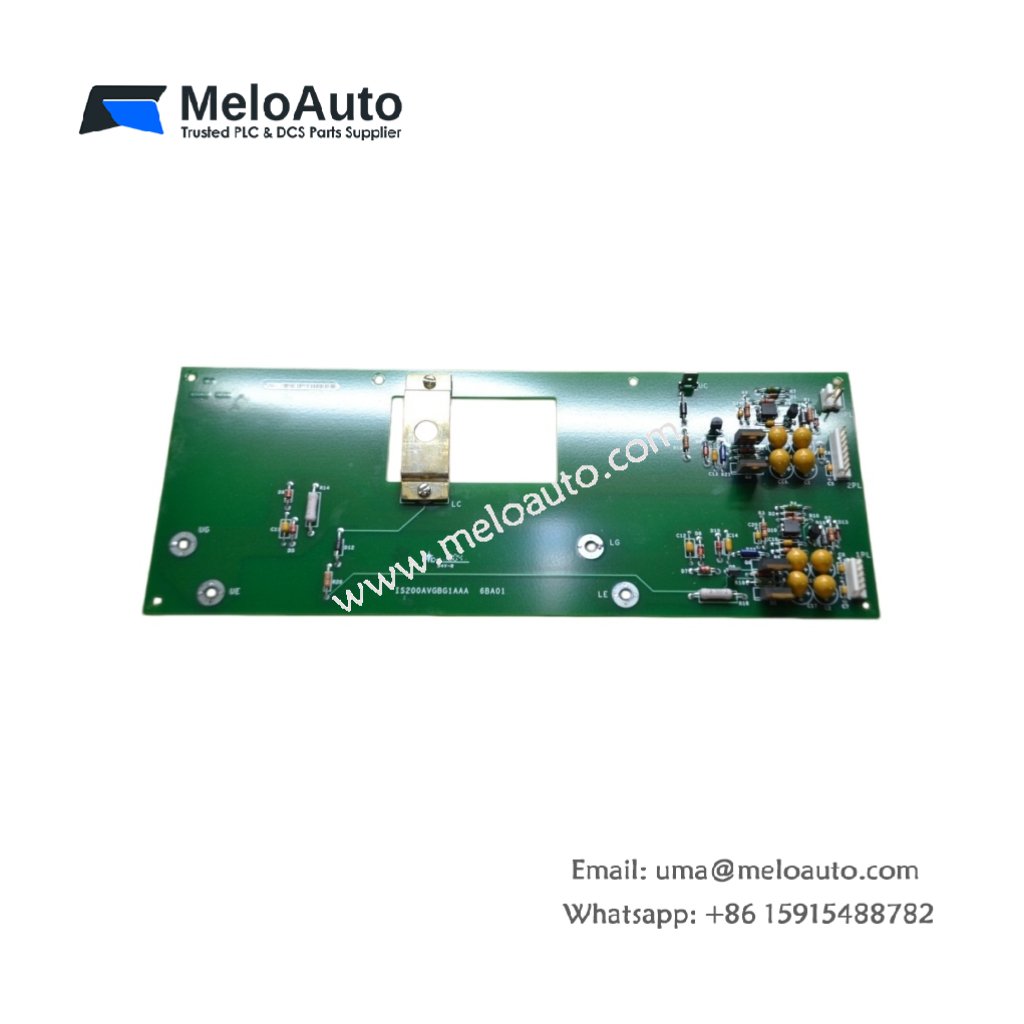

GE IS200AVGBG1A IS200AVGBG1AAA Speedtronic Board

The GE IS200AVGBG1A IS200AVGBG1AAA serves as a dedicated PCB for the Mark VI series. This board manages voltage regulation and signal conditioning within the control assembly. You will find this unit in many industrial turbine automation systems. General Electric designed this board for the Speedtronic turbine control platform. Its robust construction ensures reliable operation in harsh environments.

Technical Specifications

This board integrates over 100 discrete components onto a multi-layer PCB. Its dimensions measure roughly 7.2 inches wide by 6.0 inches high. The total weight reaches about 0.47 kilograms including the protective coating. Four 16-pin headers handle low-level signal connections to adjacent boards. Two voltage input terminals bring reference potentials into the board. One backplane connector provides power and data paths to the main rack. The design stores up to 200 joules of capacitive energy for stable voltage regulation.

Functional Layout and Voltage Management

The GE IS200AVGBG1A IS200AVGBG1AAA regulates incoming supply voltages with high accuracy. Each voltage regulator maintains a specific output level for downstream circuits. Moreover, the board filters ripple from external power sources before distribution. This variant includes upgraded capacitors for better transient response and stability. General Electric specifically designed this PCB for the Mark VI Speedtronic system. You can replace an older board with this unit without changing the rack configuration.

Installation Guidelines and Compatibility

This control board mounts directly into a standard Mark VI rack slot. Always disconnect system power before handling the GE IS200AVGBG1A IS200AVGBG1AAA. The board works with existing GE Mark VI backplanes and power supplies. Verify your firmware revision supports this variant. This board maintains backward compatibility with earlier Mark VI versions. Proper installation ensures reliable voltage regulation and system integrity.
