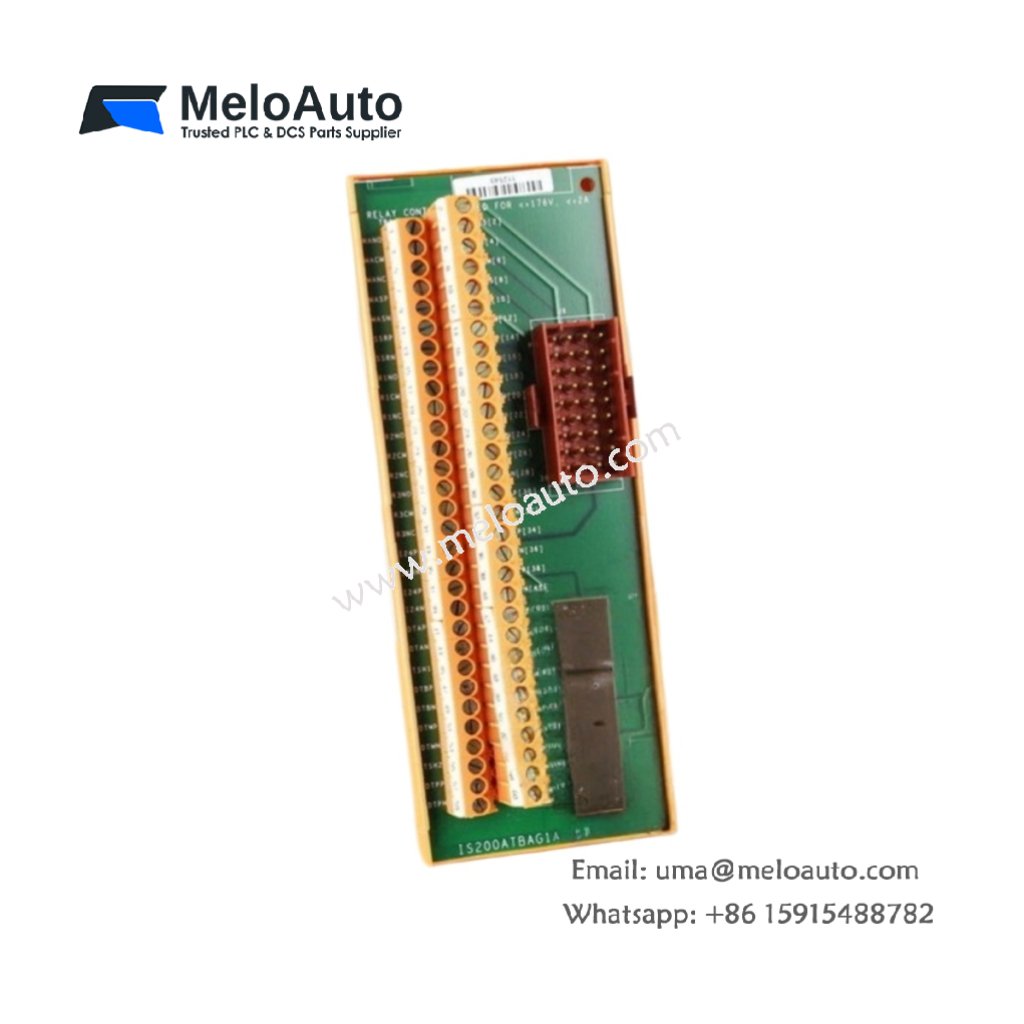

GE IS200ATBAG1A IS200ATBAG1AAA Speedtronic Board

The GE IS200ATBAG1A IS200ATBAG1AAA serves as a terminal board for the Mark VI series. This board manages analog signal termination and distribution within the control assembly. You will find this unit in many industrial turbine automation systems. General Electric designed this board for the Speedtronic turbine control platform. Its robust construction ensures reliable operation in harsh environments.

Technical Specifications

This board integrates over 135 discrete components onto a multi-layer PCB. Its dimensions measure roughly 9.0 inches wide by 7.5 inches high. The total weight reaches about 0.73 kilograms including the mounting bracket. Eight 20-pin terminal blocks handle field wiring for analog sensors. Four analog input channels bring measurement signals into the board. One backplane connector provides power and data paths to the main rack. The design stores up to 310 joules of capacitive energy for stable signal termination.

Functional Layout and Signal Termination

The GE IS200ATBAG1A IS200ATBAG1AAA terminates incoming analog signals with high accuracy. Each termination resistor matches the impedance of connected field devices. Moreover, the board filters high-frequency noise before passing signals to the controller. This variant includes upgraded filters for better signal integrity. General Electric specifically designed this terminal board for the Mark VI Speedtronic system. You can replace an older board with this unit without changing the rack configuration.

Installation Guidelines and Compatibility

This terminal board mounts directly into a standard Mark VI rack slot. Always disconnect system power before handling the GE IS200ATBAG1A IS200ATBAG1AAA. The board works with existing GE Mark VI backplanes and analog sensors. Verify your firmware revision supports this variant. This board maintains backward compatibility with earlier Mark VI versions. Proper installation ensures reliable signal termination and system integrity.
