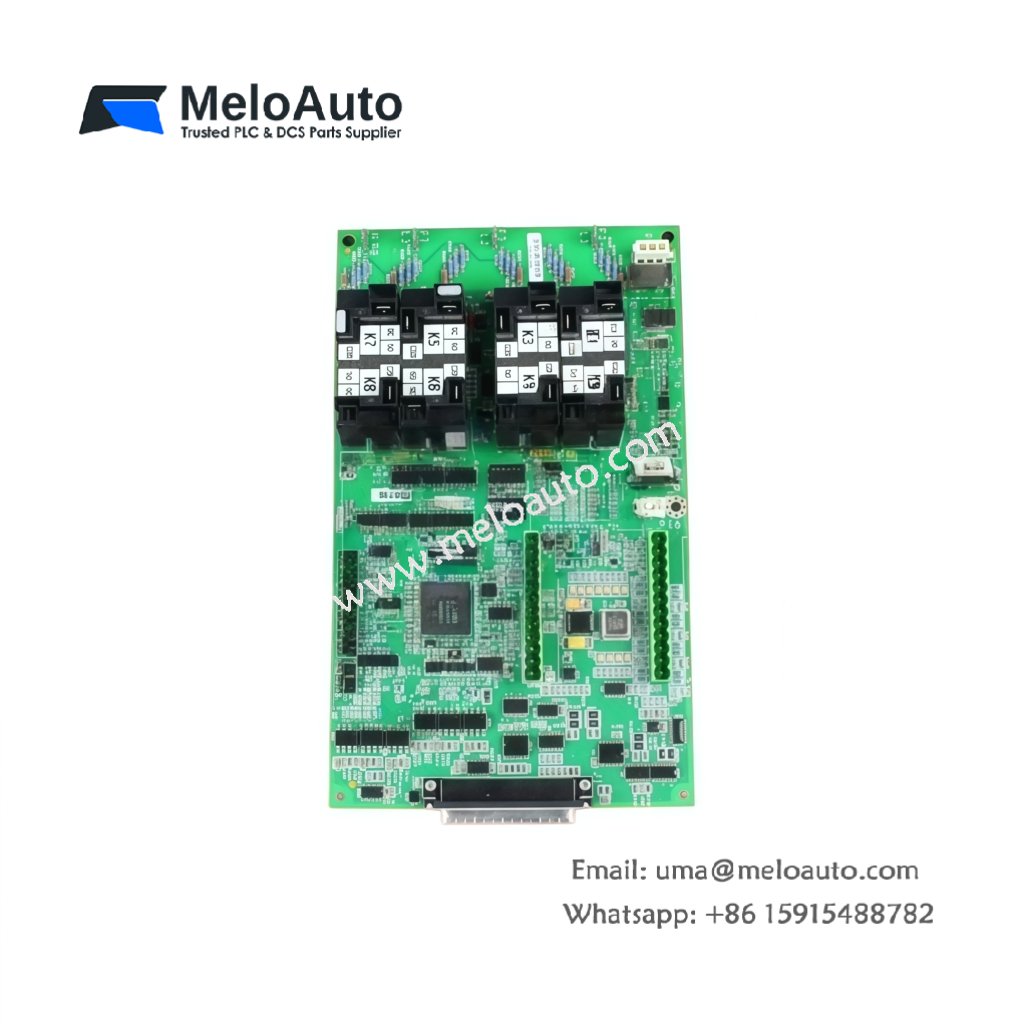

GE IS200AEADH1A IS200AEADH1ABA Printed Circuit Board

The GE IS200AEADH1A IS200AEADH1ABA serves as a dedicated PCB for the Mark VI series. This board manages analog-to-digital conversion for turbine sensor signals. You will find this unit in many industrial automation systems. General Electric designed this board for the Speedtronic turbine control platform. Its robust construction ensures reliable operation in harsh environments.

Technical Specifications

This board integrates over 120 discrete components onto a multi-layer PCB. Its dimensions measure roughly 7.8 inches wide by 6.2 inches high. The total weight reaches about 0.54 kilograms including the protective coating. Six 16-pin headers handle control signals between adjacent boards. Eight analog input channels bring sensor voltages into the conversion stage. One backplane connector provides power and data paths to the main rack. The design stores up to 250 joules of capacitive energy for stable reference voltage generation.

Functional Layout and Signal Conversion

The GE IS200AEADH1A IS200AEADH1ABA converts analog sensor signals to digital values with high accuracy. Each ADC chip transforms incoming voltages into 16-bit data words. Moreover, the board filters input noise before the conversion stage. This variant includes upgraded reference circuits for better precision and stability. General Electric specifically designed this PCB for the Mark VI Speedtronic system. You can replace an older board with this unit without changing the rack configuration.

Installation Guidelines and Compatibility

This printed circuit board mounts directly into a standard Mark VI rack slot. Always disconnect system power before handling the GE IS200AEADH1A IS200AEADH1ABA. The board works with existing GE Mark VI backplanes and analog sensors. Verify your firmware revision supports this variant. This board maintains backward compatibility with earlier Mark VI versions. Proper installation ensures accurate signal conversion and system integrity.
