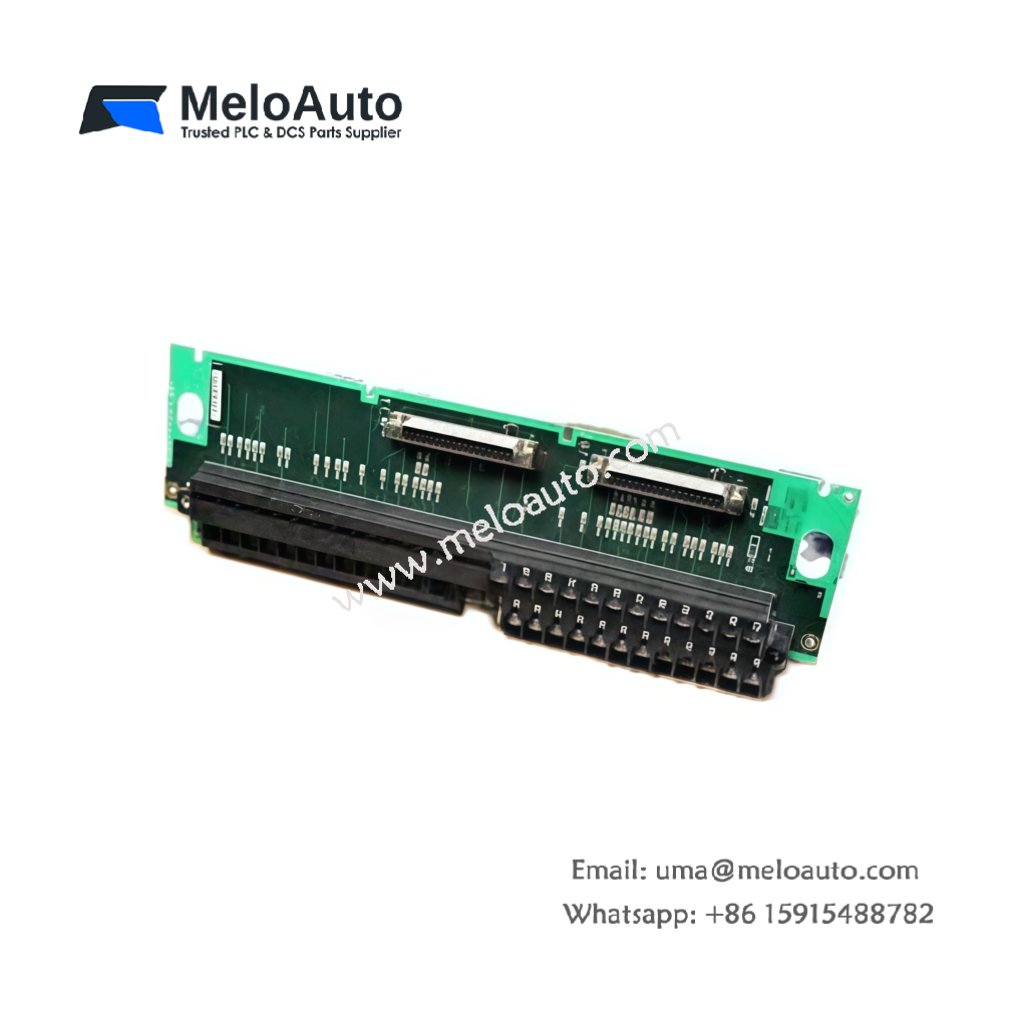

The IS200AEAAH1C IS200AEAAH1CPR functions as an analog expansion board for turbines. This printed circuit board belongs to the Mark VI Speedtronic series from General Electric. The IS200AEAAH1C serves as the standard version for analog signal expansion. Its variant, the IS200AEAAH1CPR, includes a conformal coating for enhanced circuit protection. Both boards expand analog capabilities for steam and gas turbine control systems.
Core Technical Specifications
This board provides multiple analog input channels for system expansion. You will also find analog output channels for additional control. The board stores minimal energy but uses capacitors for signal conditioning. Meanwhile, the backplane interface handles all power and data transfers.
| Parameter | Specification |
|---|---|
| Full Model No. | IS200AEAAH1C IS200AEAAH1CPR |
| Manufacturer | GE Industrial Systems (General Electric) |
| Series | Mark VI Speedtronic |
| Board Category | Printed Circuit Board (Analog Expansion) |
| Weight | Approximately 0.32 kg |
| Dimensions (H x W x D) | 6.0 cm x 23.0 cm x 3.0 cm |
| Analog Input Channels | 8 expansion input channels |
| Analog Output Channels | 4 expansion output channels |
| Resolution | 16-bit for inputs and 14-bit for outputs |
| Input Signal Range | 0 to 10 VDC or 4 to 20 mA |
| Output Signal Range | 0 to 10 VDC or 4 to 20 mA |
| Terminal Type | Screw terminal connectors |
| Backplane Interface | VME compatible |
| Energy Storage | Small capacitors for signal filtering |
| Coating (for CPR) | Conformal coated against moisture and dust |
Installation and System Integration
Install the IS200AEAAH1C IS200AEAAH1CPR into any standard VME rack slot. The board connects directly to expansion devices through its screw terminals. Meanwhile, the backplane supplies power and communication to the board. Therefore, proper insertion ensures reliable analog expansion.
