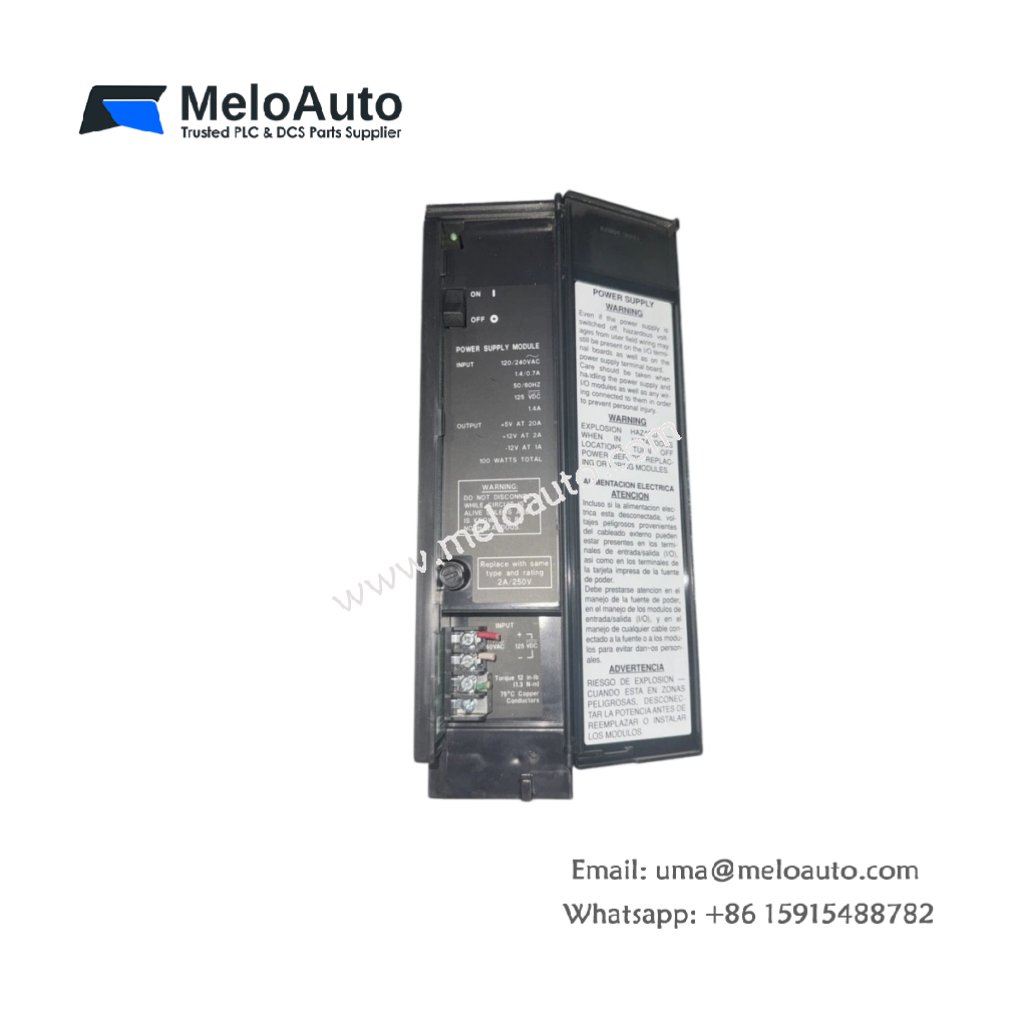

GE IC697PWR711K 100-Watt Power Supply

Overview

The GE IC697PWR711K is a high-performance 100-watt power supply designed for use in Series 90-70 PLC systems. This reliable module delivers stable DC power from both AC and DC sources to various components such as CPUs, I/O modules, and communication devices. It features multiple regulated outputs, making it ideal for complex PLC configurations. Additionally, it supports redundancy when paired with compatible power supplies, ensuring continued operation in critical systems. Built for industrial environments, this power supply offers exceptional reliability even under demanding conditions.

Key Features

Stable Power Delivery: The GE IC697PWR711K provides 100 watts of total output power, with multiple regulated voltage outputs to support the needs of large PLC systems.
Multiple Regulated Outputs: This module features outputs of +5 VDC (20 A), +12 VDC (2 A), and -12 VDC (1 A), providing flexibility to power various system components effectively.
Redundancy Capability: By pairing with compatible power supplies, the IC697PWR711K allows for redundancy, ensuring continued power supply in case of failure, critical for maintaining system uptime.
Industrial-Grade Reliability: Designed for harsh industrial environments, it operates under temperature ranges of 0°C to 60°C and handles humidity levels of 5% to 95% RH, making it suitable for a wide range of applications.
Built-in Protection Features: The IC697PWR711K includes protection features such as overcurrent, overvoltage, and short-circuit protection, ensuring secure and stable operation.

Technical Specifications

Parameter	Specification
Input Voltage	AC 120/240 V, DC 125 V
Input Frequency	50/60 Hz (AC input)
Output Power	100 watts total
Regulated Outputs	+5 VDC @ 20 A, +12 VDC @ 2 A, -12 VDC @ 1 A
Power Supply Type	Multi-output linear regulated
Mounting	Leftmost slot in Series 90-70 rack
Cooling	Passive airflow; compatible with rack-mounted fan assemblies
Protection Features	Overcurrent, overvoltage, short-circuit protection
Operating Temperature	0°C to 60°C
Storage Temperature	-40°C to 85°C
Humidity	5% to 95% RH non-condensing
Weight	1.7 kg

Applications

The GE IC697PWR711K power supply module is designed to support high-demand industrial applications, particularly for Series 90-70 PLC systems. Its multi-output design and redundancy support make it ideal for use in automation systems, process control, and industrial machinery. The robust design ensures that it operates reliably in environments with high temperature fluctuations and humidity.

Manufacturer

The GE IC697PWR711K is a product of GE Fanuc, now under Emerson Automation. Known for high-quality industrial automation components, GE Fanuc ensures that this power supply module meets the demanding needs of industrial control systems.
