GE IC697PWR711 Power Supply Module

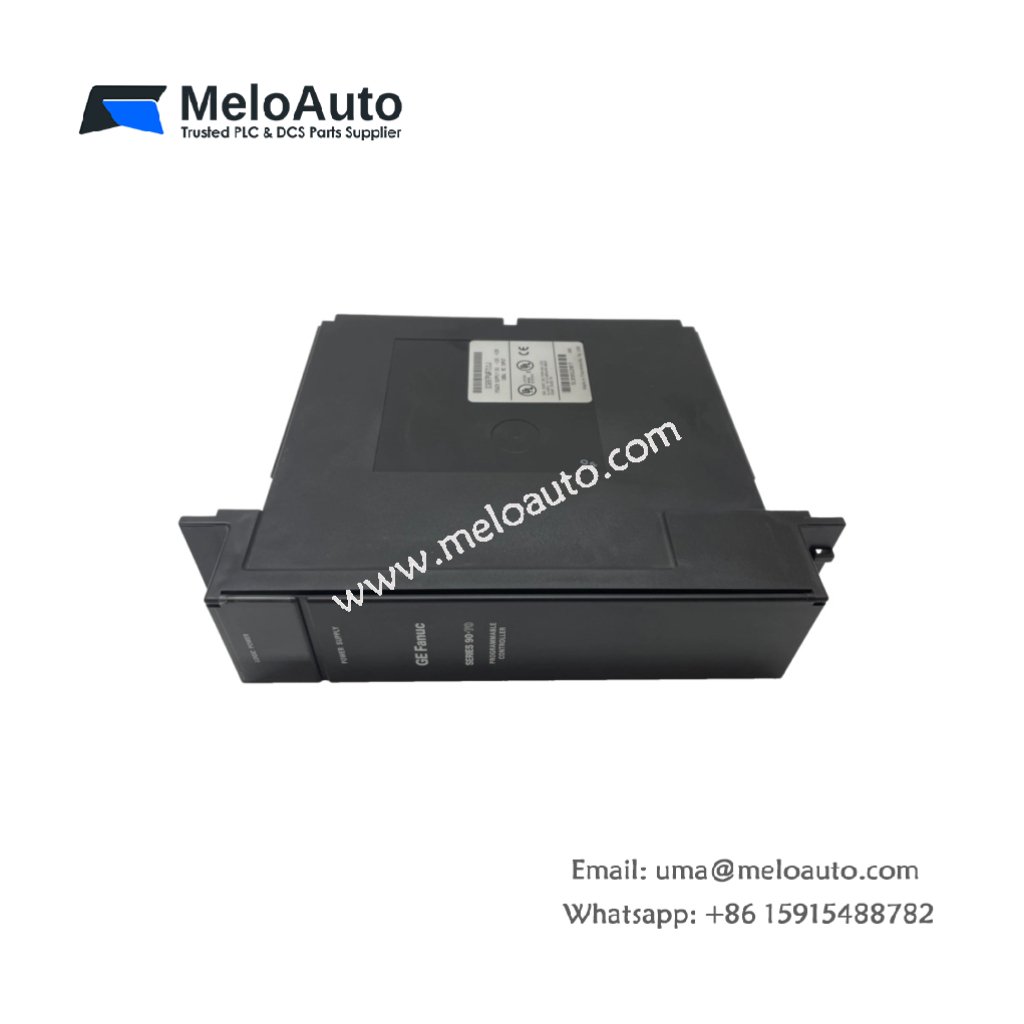

The GE IC697PWR711 power supply module from GE Fanuc Emerson is designed for the Series 90-30 PLC platform. This module powers up to two racks and provides +5VDC and +/-12VDC outputs. With a load capacity of 100 Watts, it offers excellent performance in a wide range of applications. Additionally, the module is compatible with both 120VAC and 240VAC input configurations, making it adaptable to various industrial setups.

Key Features

Model: GE IC697PWR711
Category: Power Supply Module
Manufacturer: GE Fanuc Emerson
Series: 90-30 PLC
Part Number: IC697PWR711
Product Line: Series 90-30

Technical Specifications

The GE IC697PWR711 offers key features to support the power requirements of industrial systems. Below is a detailed breakdown of its technical specifications:

Specification	Details
Nominal Rated Voltage	120/240 VAC
Input Power (Maximum)	160 watts at full load
Load Capacity	100 Watts
Number of Outputs	3 Outputs
Output Voltages	+5 VDC, +12 VDC, -12 VDC
+5 VDC Output Voltage Range	4.90 to 5.25 volts (5.07 volts nominal)
+12 VDC Output Voltage Range	11.75 to 12.6 volts
-12 VDC Output Voltage Range	-12.6 to -11.75 volts
Input Voltage Range (AC)	90-132 VAC / 180-264 VAC
Input Frequency Range	47-63 Hz
Input Half Cycle Peak Inrush	55 amps (typical), 77 amps (maximum)
Overvoltage Limit (5VDC Output)	5.7 to 6.7 volts
Weight	3.63 lbs (1.64 kg)

Product Description

The GE IC697PWR711 is designed for use with Series 90-30 PLCs. It provides +5VDC, +12VDC, and -12VDC outputs, offering a load capacity of up to 100 Watts. With configurable 120VAC or 240VAC input, the module meets the power needs of diverse automation systems. You can configure the input according to the jumper settings to suit your setup.

The module operates with a peak inrush current of 55 amps (typical), ensuring smooth power delivery during startup. Additionally, the 5VDC output features an overvoltage limit of 5.7 to 6.7 volts, providing protection to sensitive equipment. This power supply module is both efficient and reliable for maintaining uninterrupted operations in industrial automation.

Benefits and Applications

Reliable Power: The IC697PWR711 offers stable power delivery with three output voltages, making it ideal for complex systems.
Flexible Input Options: You can configure the input for 120/240 VAC, offering versatility in different installations.
High Load Capacity: With a 100-watt load capacity, it powers multiple racks and devices.
Compact and Efficient: This power supply module provides high efficiency in a compact form, maximizing energy use while minimizing space requirements.
Durable Performance: It supports a wide input voltage range and delivers consistent performance even under high inrush current.

Conclusion

The GE IC697PWR711 power supply module is an essential component for Series 90-30 PLCs. With its flexibility, reliable power output, and high load capacity, this module supports a variety of industrial automation applications. It is a reliable choice for powering multiple racks and ensuring continuous operation in demanding environments.
