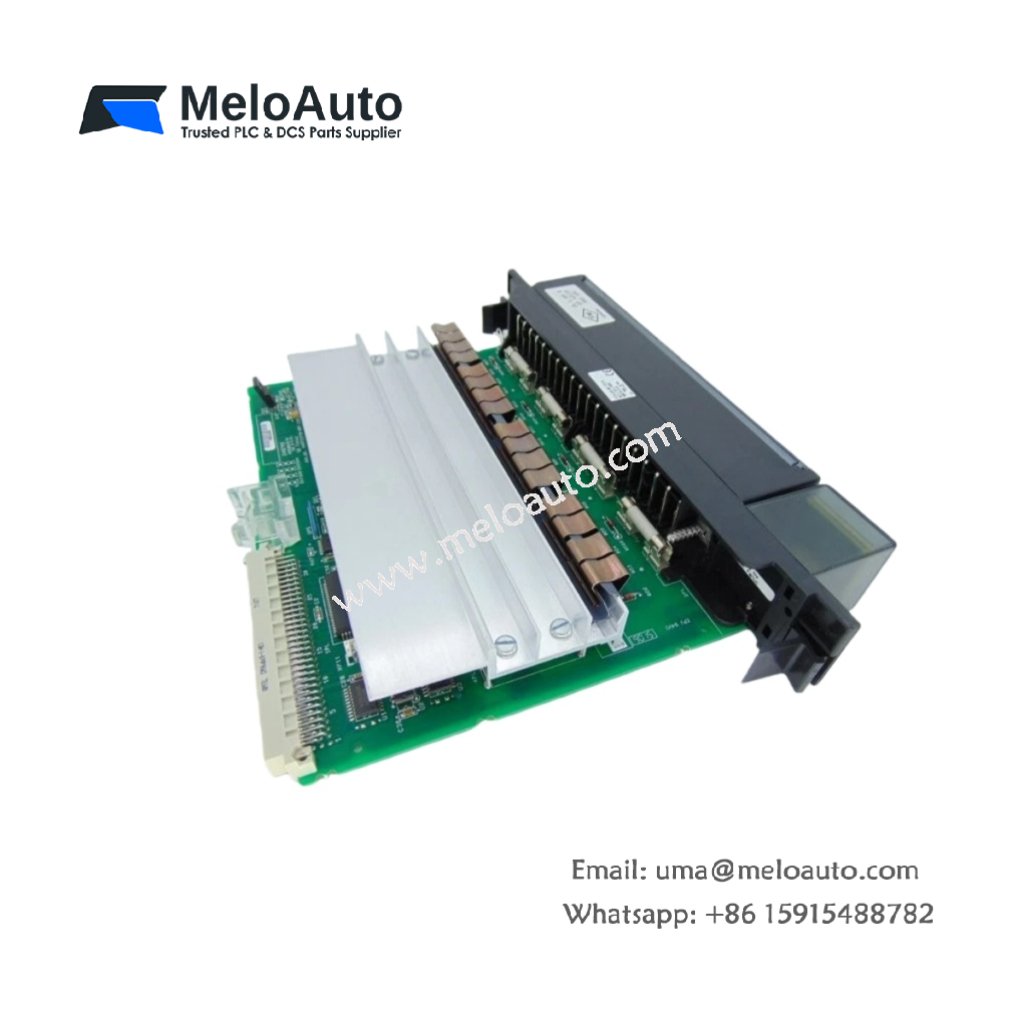

GE IC697MDL740 Discrete Output Module

The GE IC697MDL740 is a high-performance discrete output module designed for use with GE Fanuc’s Series 90-70 PLCs. With 16 output points, this module operates efficiently across a voltage range of 24 to 48 Volts DC, delivering 2 Amps per point or 4 Amps per group. It offers a quick response time of just 2 milliseconds, ensuring precise control in industrial systems.

Technical Specifications:

Product Description:

The IC697MDL740 module excels in providing 16 discrete outputs, perfect for applications requiring high current output and fast response times. The module supports a voltage range of 20 to 60 Volts DC, while delivering up to 2 Amps per point and 4 Amps per group. With a low output voltage drop of less than 1 Volt, it ensures efficient performance.

This module boasts a 2-millisecond response time, making it ideal for real-time applications that demand quick and accurate control. It operates with a low power consumption of only 0.15 Amps.

With a 1500 Volt isolation voltage, the IC697MDL740 protects your system from electrical surges. It also supports an inrush current of up to 20 Amps for 20 milliseconds, making it suitable for industrial environments with high demand.

Additionally, the module is equipped with a 5-pin connector, making installation straightforward and seamless. It is designed to be mounted directly onto the GE Fanuc Series 90-70 PLC backplane, offering reliable, stable, and quick integration into your control systems.

Key Features:

• Efficient Output Control: Provides 2 Amps per point, supporting demanding applications.

• Rapid Response: The 2 milliseconds response time allows for precise system control.

• Wide Voltage Range: Operates within 24 to 48 Volts DC and supports 20 to 60 Volts DC output range.

• Minimal Power Consumption: Only 0.15 Amps required for operation, enhancing energy efficiency.

• High Isolation: The 1500 Volts isolation protects the module in harsh environments.

• Durable: Handles inrush currents of up to 20 Amps for 20 milliseconds.

Installation and Application:

The IC697MDL740 integrates seamlessly into GE Fanuc Series 90-70 PLCs, making it a reliable choice for industrial automation systems, machine control, and process monitoring. The module’s quick response, wide voltage range, and high current output make it suitable for high-demand industrial environments.

This module can enhance the performance of any control system, offering both flexibility and durability. It is particularly effective for applications that require precise output control and fast data processing, ensuring smooth operation across various industrial settings.
