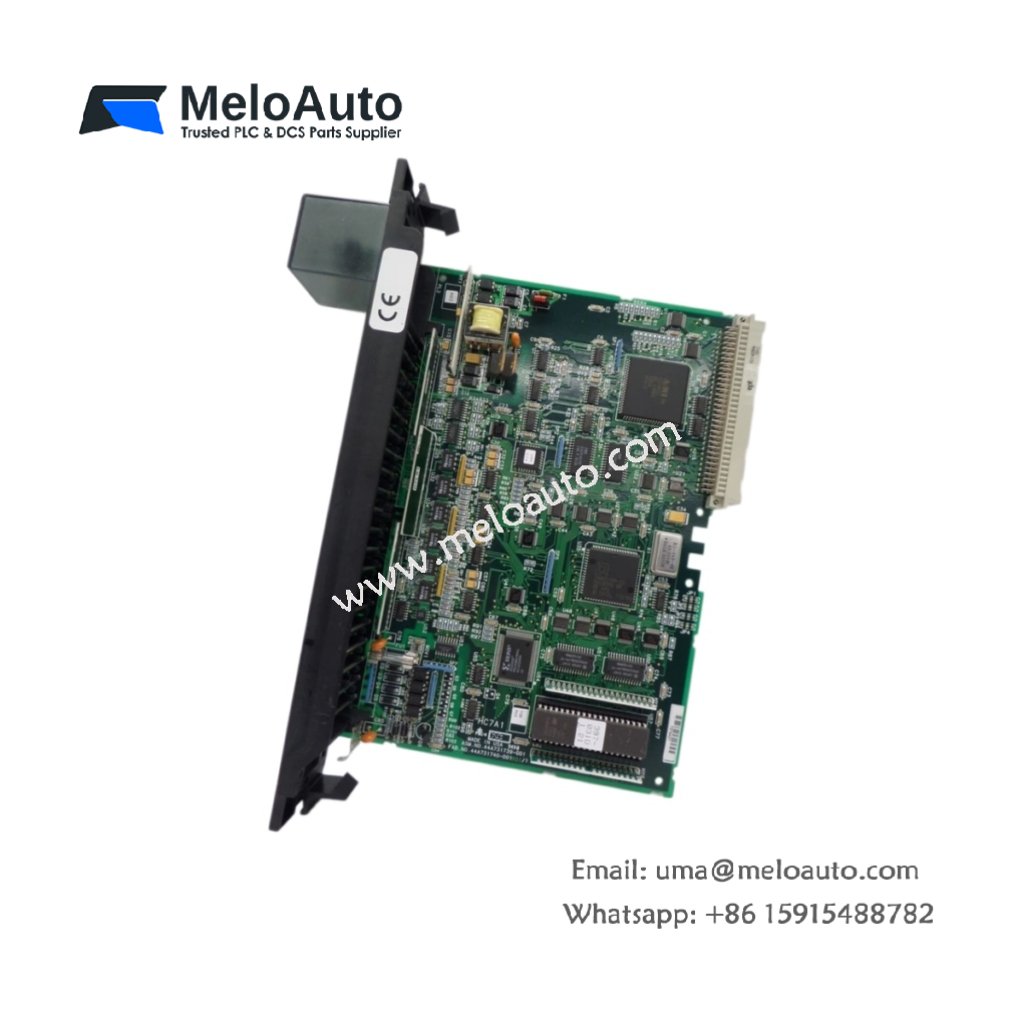

GE IC697HSC700 High-Speed Counter Module

The GE IC697HSC700 is a high-performance High-Speed Counter (HSC) module from the Series 90-70 product line, designed by GE Fanuc Emerson. This optional module features robust input and output capabilities, making it an ideal choice for demanding automation tasks. With twelve (12) single-ended or differential logic inputs and four (4) positive logic outputs, it offers precise control for high-speed counting operations.

The module supports a maximum count rate of 200 kHz in Up/Down Quad mode and 800 kHz in Quad B mode at Type E. This makes the IC697HSC700 suitable for fast, time-sensitive applications that require accurate and high-speed counting.

Key Features of the GE IC697HSC700 High-Speed Counter Module

Manufacturer: GE Fanuc Emerson
Product Line: Series 90-70
Part Number: IC697HSC700
Weight: 1.38 lbs (0.62 kg)
Product Description: High-Speed Counter (HSC) module
Input Voltage Range: 10-30 V DC
Input Frequency: 200 kHz in Type A, D, and Type E in Up/Down Quad mode; 800 kHz at Type E in Quad B mode
Output Voltage: 10-30 VDC at 20 mA maximum
Output Protection: Short circuit protection
No. of Inputs: Twelve (12) single-ended or differential inputs
No. of Outputs: Four (4) positive logic outputs
Processing Speed: 200 kHz
Maximum Count Rate: Up to 200 kHz in Up/Down Quad mode, 800 kHz in Quad B mode
Input Voltage Options: 5 VDC, 10-30 VDC

Detailed Technical Specifications

Specification	Details
Module Type	High-Speed Counter (HSC)
No. of Inputs	12 (Single-ended/Differential)
No. of Outputs	4 (Positive Logic Outputs)
Input Frequency (Mode)	200 kHz (Type A, D, E – Up/Down Quad Mode)
Input Frequency (Mode E – Quad B)	800 kHz (Quad B Mode)
Input Voltage Range	10-30 VDC
Output Ratings	10-30 VDC @ 20 mA maximum
Processing Speed	200 kHz
Short Circuit Protection	Yes
Weight	1.38 lbs (0.62 kg)

Why Choose the GE IC697HSC700 High-Speed Counter Module?

High-Speed Counting: With a processing speed of 200 kHz and a maximum count rate of 800 kHz, the IC697HSC700 ensures precise counting for high-speed industrial applications.
Flexible Inputs and Outputs: The module supports both single-ended and differential logic inputs and provides four positive logic outputs, ensuring flexibility in various control systems.
Robust Protection: The short-circuit protection feature safeguards the system against potential faults, enhancing the module’s durability and reliability.
Wide Input Voltage Range: The IC697HSC700 can operate at 5 VDC or 10-30 VDC, providing versatility for different types of input signals.
Compact and Efficient: Weighing only 1.38 lbs (0.62 kg), the module is designed for easy integration into automation setups without occupying excessive space.

The GE IC697HSC700 is a powerful solution for applications requiring fast and reliable high-speed counting. Whether you’re working with up/down counting or quadrature signals, this module provides precise performance to optimize your automation system.
