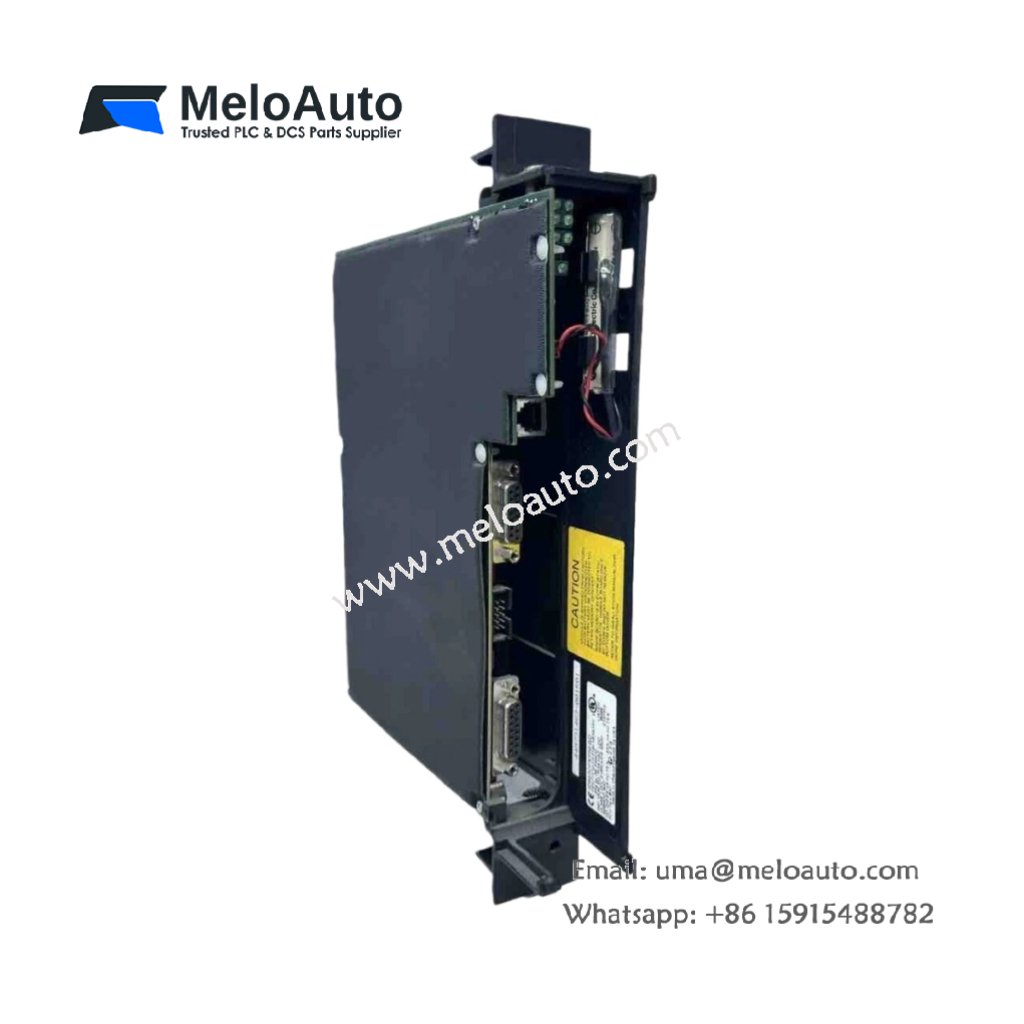

The GE IC697CPX772 is a powerful CPU module from the Series 90-70 PLC product line, manufactured by Emerson Automation (formerly GE Fanuc). This advanced processor integrates several key features, making it an essential component for industrial automation systems that require fast processing and reliable performance.
Key Features of the GE IC697CPX772 CPU
The IC697CPX772 is powered by an 80486DX4 microprocessor with a clock speed of 96 MHz, offering efficient execution of Boolean functions at a speed of 0.4 microseconds. This processor is designed to handle up to 2K discrete inputs/outputs and supports 8K analog I/O. It also has 512 KB of RAM and 256 KB of non-volatile flash memory, ensuring robust data storage and processing capabilities.
This CPU module supports a variety of communication protocols, including SNP Slave, SNPX, and RTU serial protocols. The module features multiple communication interfaces, including one RS232 RJ11 port and two RS485 9-pin D-shell communication ports. These ports enable seamless integration into industrial networks, allowing for reliable data exchange between devices.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | GE Fanuc Emerson |
| Product Line | Series 90-70 |
| Part Number | IC697CPX772 |
| Product Type | CPU Module |
| Processor | 80486DX4 Microprocessor |
| Clock Speed | 96 MHz |
| RAM | 512 KB |
| NV-RAM | 256 KB |
| Discrete I/O | 2K max (any combination) |
| Analog I/O | 8K max |
| Boolean Execution | 0.4 microseconds per Boolean function |
| Serial Ports | 1 RS232, 2 RS485 |
| Voltage Input | 5 Volts DC |
| Current Draw | 3.1 Amps |
| Operating Temperature | 0 to 60 °C |
| Status LEDs | OK, RUN, EN, P1, P2, P3, MEM PROTECT |
| Memory Protection | Lithium Battery (IC697ACC701) with 5-year shelf life |
Product Description
The GE IC697CPX772 is the central processing unit (CPU) for the Series 90-70 PLC system. Equipped with a 96 MHz clock speed and a 0.4 microsecond Boolean execution time, this processor ensures high-speed data processing and reliable control. It features 512 KB of RAM and 256 KB of non-volatile flash memory, providing ample storage for your applications.
This CPU supports up to 2K discrete I/O and 8K analog I/O, making it highly versatile for various industrial applications. Additionally, it integrates multiple communication ports, including RS232 RJ11 and RS485 9-pin D-shell, supporting essential protocols like SNP, SNPX, and RTU serial protocols.
Designed for flexibility and ease of use, the IC697CPX772 module includes a real-time clock with a Lithium battery that ensures reliable memory retention for up to 6 months. It also features a 3-position operation mode switch, which allows local adjustments to the module’s operating mode.
Applications
- Industrial Automation: Suitable for controlling complex processes and systems in manufacturing environments.
- Flexible Integration: The IC697CPX772 is compatible with various communication standards, making it ideal for flexible automation setups.
- Real-Time Control: With fast Boolean execution and a real-time clock, this CPU ensures precise control in mission-critical applications.
Conclusion
The GE IC697CPX772 CPU module is a robust and efficient processor for Series 90-70 PLC systems. Its fast processing speed, large memory capacity, and multiple communication interfaces make it a reliable choice for industrial automation. Whether you are working with discrete or analog I/O, this CPU will provide the performance and flexibility needed for demanding applications.
