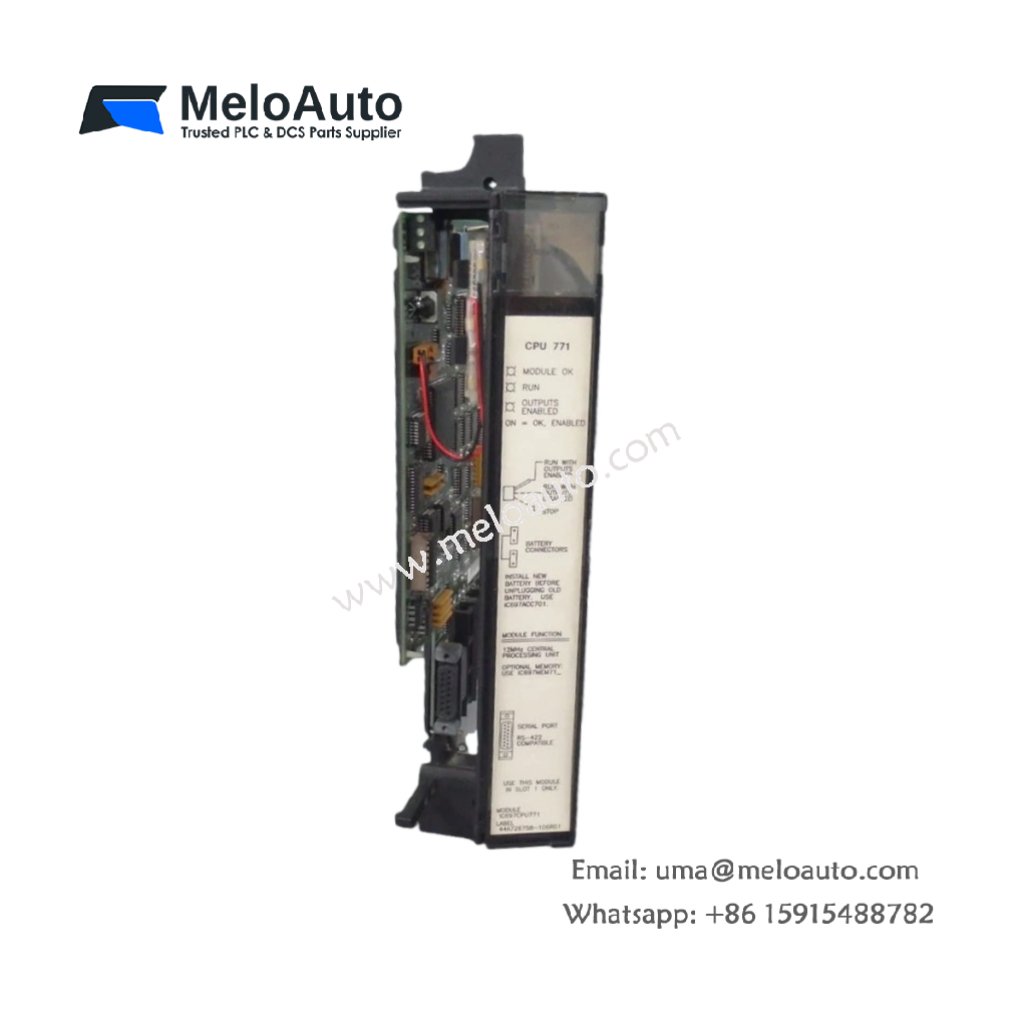

GE IC697CPU771 – CPU Module for Series 90-70 PLC

Overview of the GE IC697CPU771

The GE IC697CPU771 is a high-performance CPU module for the Series 90-70 Programmable Logic Controller (PLC). Developed by GE Fanuc, now part of Emerson Automation, this module is designed for demanding industrial automation tasks. Featuring an 80C186 microprocessor with a clock speed of 12 MHz, it delivers efficient processing and fast response times. Additionally, it supports 2Kbytes of discrete I/O and 8Kbytes of analog I/O memory, making it a versatile solution for various applications.

Key Features of the GE IC697CPU771

• Part Number: IC697CPU771
• Manufacturer: GE Fanuc, Emerson Automation
• Product Type: CPU Module for Series 90-70
• Microprocessor: 80C186 with 12 MHz clock speed
• Boolean Execution Speed: 0.4 microseconds per boolean function
• Discrete I/O Memory: 2Kbytes (any combination of inputs and outputs)
• Analog I/O Memory: 8Kbytes, supports a wide range of I/O devices
• Maximum RAM: 512Kbytes, allowing system scalability
• Floating Point Math: Supported for advanced calculations
• Serial Port: 1 RS485 interface for reliable communication
• LED Indicators: Module OK, RUN, and Outputs enabled indicators
• Battery Backup: Yes, ensures data retention during power outages

GE IC697CPU771 Technical Specifications

In-Depth Description of the GE IC697CPU771

The GE IC697CPU771 module is a crucial component of the Series 90-70 PLC platform. Powered by the 80C186 microprocessor, this CPU delivers robust performance with a 12 MHz clock speed, executing logic functions in just 0.4 microseconds per boolean operation. This fast execution speed makes it ideal for real-time industrial automation tasks.

This module supports up to 2Kbytes of discrete I/O and 8Kbytes of analog I/O, providing flexibility in managing a variety of input and output devices. Additionally, the IC697CPU771 offers 512Kbytes of expandable memory, allowing users to scale the system as required. Floating-point math support enables the module to perform complex calculations, crucial for advanced control systems.

For communication, the IC697CPU771 includes a single RS485 interface. This interface ensures reliable and high-speed data transfer, facilitating communication with other devices and modules within the Series 90-70 system. The module also features LED indicators for monitoring its status. These indicators show whether the module is in a good state (Module OK), running (RUN), or if outputs are currently enabled.

Moreover, the IC697CPU771 comes with a battery backup, ensuring data retention during power failures. This feature is critical for maintaining system integrity and preventing data loss in the event of a power outage.

Benefits of the GE IC697CPU771

• Fast Logic Execution: With a 12 MHz processor and 0.4 microseconds per boolean function, the IC697CPU771 offers quick logic processing.
• Flexible I/O Management: Supports up to 2Kbytes of discrete I/O and 8Kbytes of analog I/O, catering to various automation needs.
• Scalable Memory: Offers 512Kbytes of memory with the option for expansion to accommodate growing system requirements.
• Reliable Communication: The RS485 interface ensures stable and high-speed communication with other modules.
• Real-Time Monitoring: The three LED indicators provide immediate feedback on the module’s operational status.
• Data Protection: The built-in battery backup ensures that crucial data is retained during power interruptions, maintaining system reliability.
