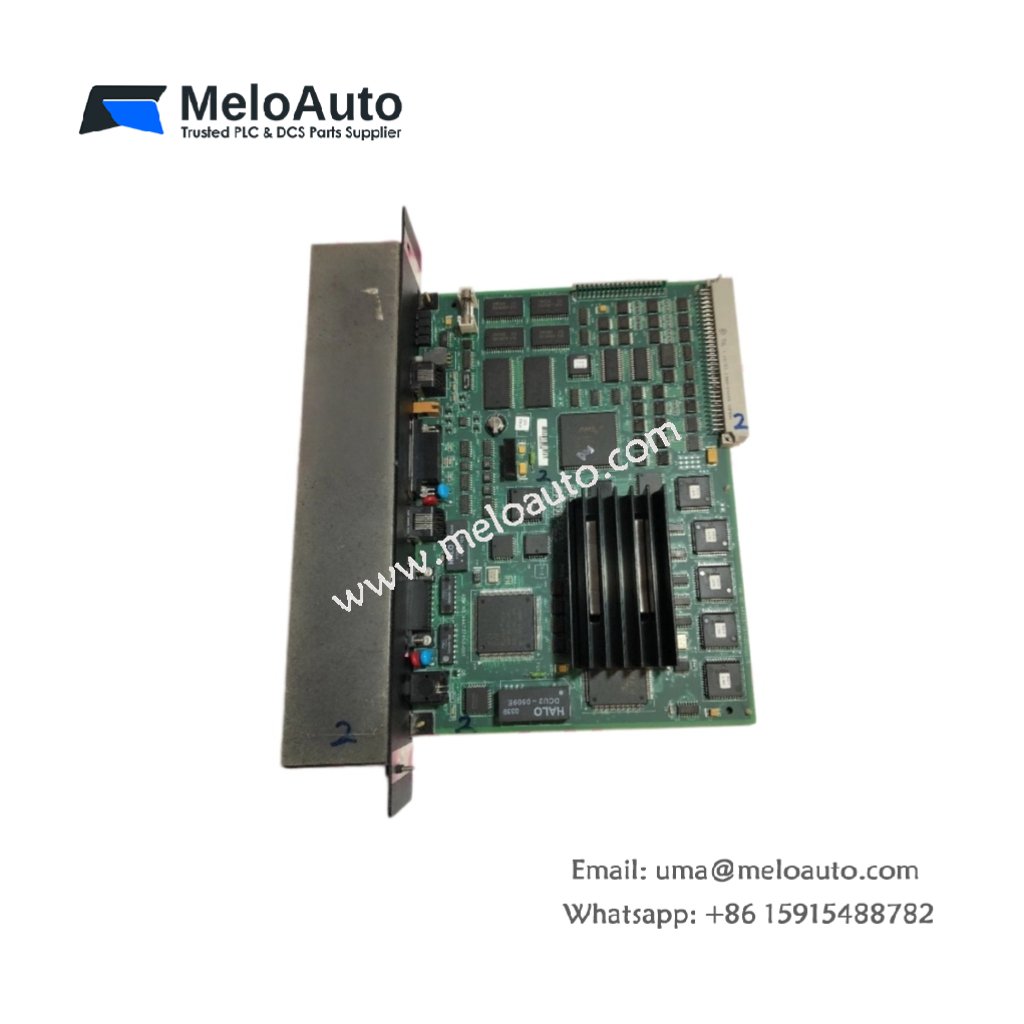

GE IC697CMM742-HK Communications Module: Specifications & Features

The GE IC697CMM742-HK is an advanced Ethernet communications module designed for industrial automation. This module belongs to the Series 90-70 product line from Emerson Automation, previously known as GE Fanuc. It provides seamless connectivity and robust performance for industrial control systems, enabling reliable communication over multiple network types.

Key Features of the GE IC697CMM742-HK Communications Module

The GE IC697CMM742-HK module is engineered to handle complex communication tasks in industrial environments. It supports various communication protocols and provides essential features to ensure smooth operation in automation systems.

• Dimensions: Compact design for easy installation within the PLC CPU rack.
• Weight: 1.19 lbs (0.54 kg)
• Interface Ports:
  • 1 x RS232 Station Manager port
  • 1 x RS485 Software Load port
  • 1 x AUI port
  • 1 x Ethernet 10BaseT Port
• LED Indicators: Includes 4 LEDs for easy monitoring: MODULE OK, LAN ONLINE, SERIAL ACTIVE, and STATUS.
• Operating Voltage:
  • 5 VDC (2.0 A typical)
  • 12 VDC (0.5 A typical)
• Installation: Designed to fit in a single slot in the Series 90-70 PLC CPU rack.
• Network Support: Supports 10BaseT Ethernet (IEEE 802.3 CSMA/CD) and 10Base2 Ethernet (IEEE 802.3 CSMA/CD).
• Restart Method: Includes a pushbutton for easy system restarts.

The GE IC697CMM742-HK is a reliable communication solution for industrial control systems, providing flexibility with its multiple network interfaces and easy setup.

Technical Specifications

Applications of the GE IC697CMM742-HK Communications Module

The GE IC697CMM742-HK communications module is ideal for use in industrial automation systems where reliable and flexible communication is essential. It can connect various devices in Series 90-70 PLC systems, offering compatibility with Ethernet, RS232, and RS485 interfaces. This versatility ensures smooth data exchange and control, enhancing the overall efficiency of automation processes.

Why Choose the GE IC697CMM742-HK?

1. Multiple Network Interfaces: The GE IC697CMM742-HK supports both Ethernet and serial communication, making it adaptable to a wide range of industrial networks.
2. Easy Monitoring: The integrated LEDs provide real-time status feedback, simplifying troubleshooting and system monitoring.
3. Compact Design: Its single-slot design makes it easy to integrate into existing Series 90-70 PLC setups without taking up much space.
4. Reliable Performance: With operating voltages of +5 VDC and +12 VDC, the module ensures stable communication even in demanding environments.

The GE IC697CMM742-HK is a top choice for industrial automation systems that require dependable and versatile communication solutions.
