GE IC697BEM713 Bus Expansion Module

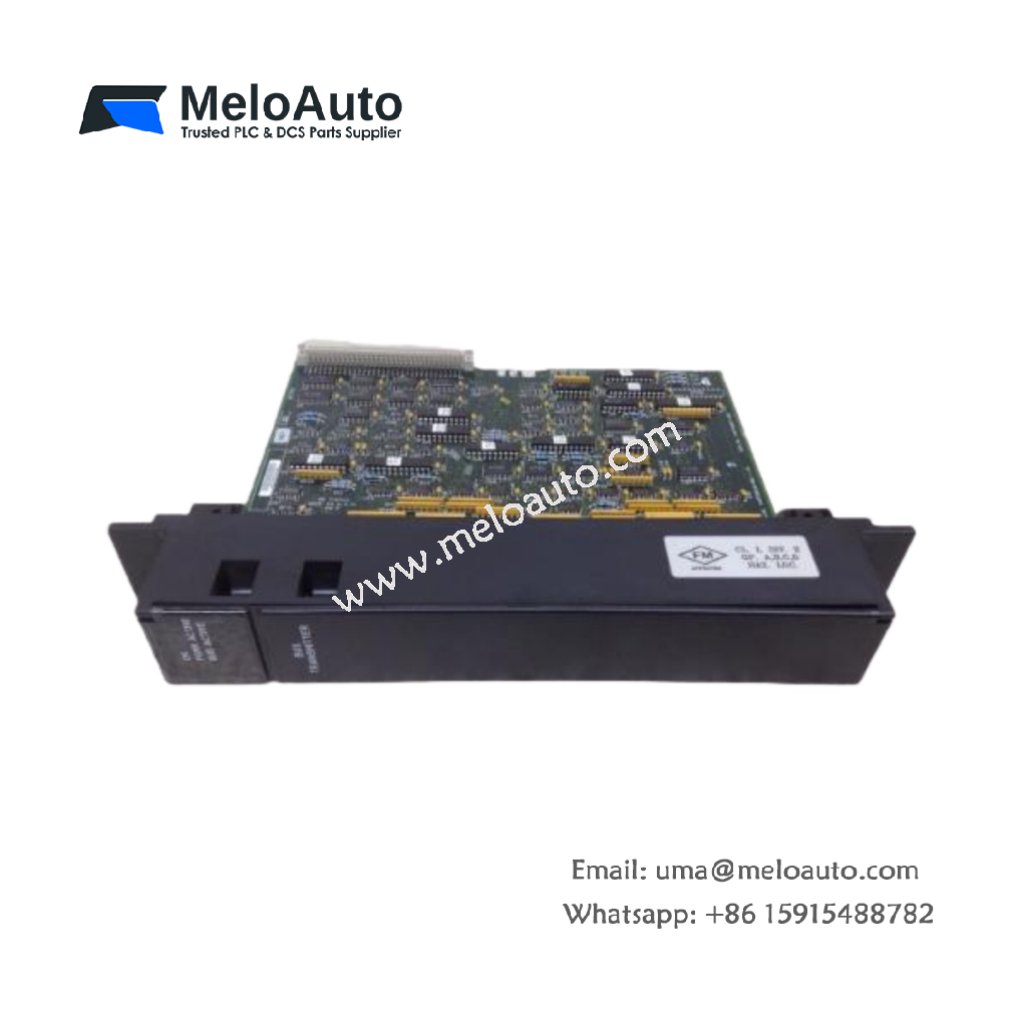

The GE IC697BEM713 is a high-performance Bus Expansion module from Emerson Automation, previously known as GE Fanuc. Part of the Series 90-70 product line, this module serves as a Bus Transmitter, designed to expand the I/O capacity of the host CPU in industrial control systems. By featuring a parallel programmer interface, it maximizes the communication capabilities of connected devices, enabling efficient and reliable data exchange.

Key Features

Model: IC697BEM713
Category: Bus Expansion Module
Manufacturer: GE Fanuc Emerson

Technical Specifications

Parameter	Value
Product Type	Bus Transmitter Module
Product Line	Series 90-70
Part Number	IC697BEM713
Voltage Input	5 VDC
Current Draw	1.4 Amps
Weight	0.94 lbs (0.43 kg)
Slot Required	1
Module Location	Any slot except Slot 1
Status LEDs	OK, PGMR, Last Rack
Effective Data Rate	500 Kbytes/sec
Interfaces	1 Parallel port; 1 Expansion port
Electrical Isolation	Non-isolated differential communication
Programmer Interface	1 Parallel port for programming
Expansion Interface	1 Expansion port for daisy-chaining
Time to Store Program	16 Kbytes

The IC697BEM713 features one parallel port for programming and one expansion port to connect additional Bus Receiver modules, allowing users to chain multiple devices for expanded communication. This capability makes the module perfect for systems requiring scalable data transfer in automation applications.

Applications

The IC697BEM713 is ideal for use in:

Industrial Control Systems: Expanding I/O capacity for complex automation processes.
PLC Systems: Enhancing communication between the host PLC and additional I/O modules.

Benefits

Scalable Communication: Supports expansion via the daisy-chaining feature, enabling growth in control systems.
High Data Transfer Rate: With an effective data rate of 500 Kbytes/sec, the module ensures fast and reliable communication.
Compact Design: Weighs just 0.94 lbs (0.43 kg), offering space-saving integration into existing systems.
Simple Installation: Mounts in any slot except Slot 1, providing flexibility during setup.
