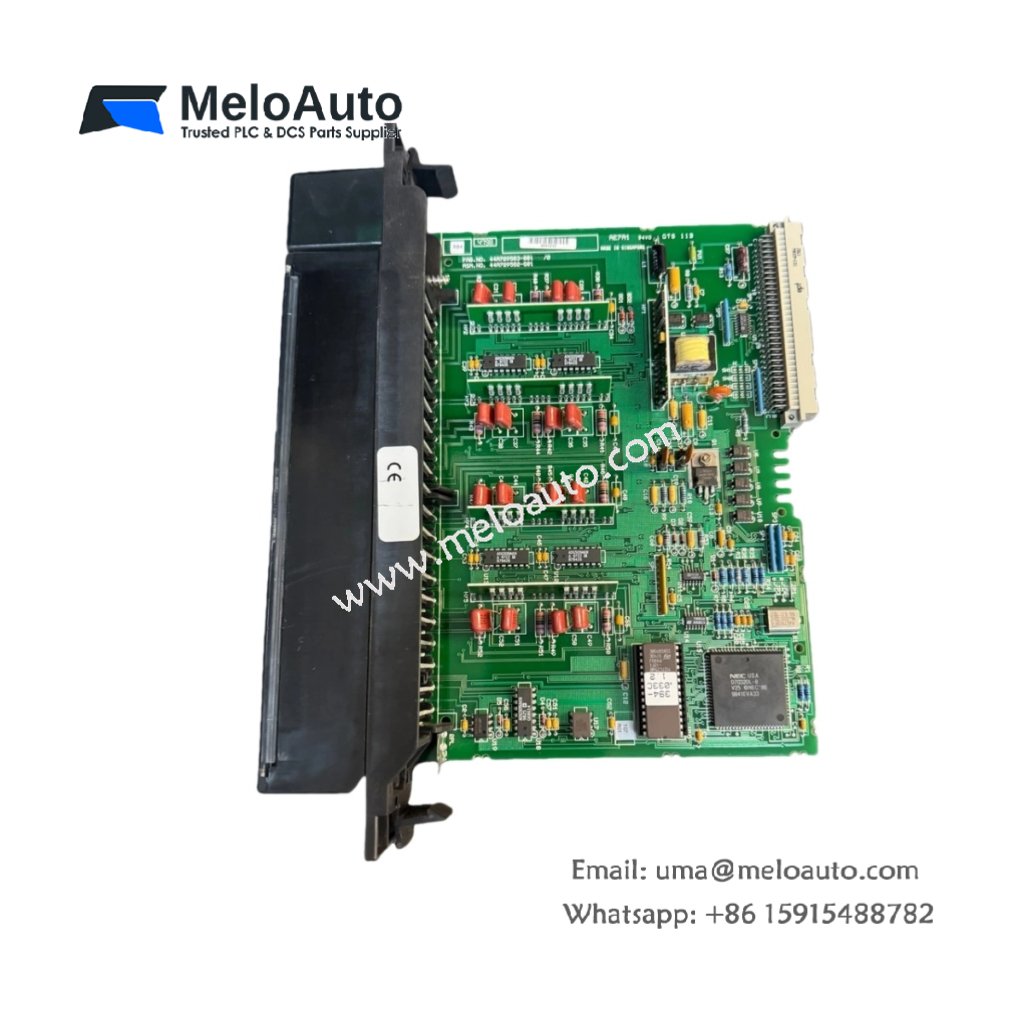

GE IC697ALG440 | Series 90-70 16-Channel 4-20mA Input Module

Multi-Channel Process Signal Acquisition

The IC697ALG440 provides sixteen independent analog input channels for GE’s Series 90-70 system. This current expander module specializes in high-level 4-20 mA signal acquisition from process transmitters. Furthermore, it delivers exceptional accuracy and resolution for critical monitoring and control applications.

Exceptional Resolution and Fast Update Rates

This module features 16-bit resolution across all sixteen input channels for precise measurement. It achieves a rapid channel update rate of 2.4 milliseconds for responsive system feedback. Moreover, the IC697ALG440 maintains high accuracy across its entire operational range.

Factory-Calibrated for Reliable Performance

GE factory-calibrates the IC697ALG440 module at 10 Volts with a tight tolerance of ±2 millivolts. This calibration ensures consistent and accurate signal conversion right out of the box. Consequently, the module minimizes setup time and reduces the need for field calibration in most installations.

Comprehensive Technical Specifications and Accuracy Data

Below are the detailed technical parameters for the GE (Emerson) IC697ALG440 Current Expander Module.

Parameter	Specification
Manufacturer	GE Fanuc / Emerson Automation
Product Line	Series 90-70 PLC
Model Number	IC697ALG440
Module Type	Analog Current Input Expander Module
Module Weight	1.44 lbs (0.65 kg)
Number of Channels	16
Input Signal Type	Current
Input Range	4 to 20 mA
Resolution	16-bit
Update Rate	2.4 ms
Calibration Reference	Factory set at 10V ± 2 mV
Accuracy	±0.07% of Full Scale, ±0.1% of Reading
Power Requirement	0.4 A (2 Watts) at +5 VDC from backplane

Optimized for Process Control and Monitoring

The 4-20 mA input range is the industry standard for process variables like pressure, temperature, and flow. The module’s high density allows monitoring of multiple process points from a single rack slot. Therefore, the IC697ALG440 is ideal for applications in chemical, pharmaceutical, water treatment, and energy industries.

Efficient Power Consumption for High-Density Systems

Drawing only 0.4 Amps at 5VDC, the module is highly efficient for its channel count. This low power draw allows for the installation of multiple analog modules within the same PLC rack. System designers appreciate this efficiency when building complex, I/O-intensive control systems.

Ensuring Data Integrity with High Accuracy Specifications

The dual accuracy specifications guarantee reliable performance under all operating conditions. The ±0.07% of full scale ensures consistency across the entire 4-20 mA range. Additionally, the ±0.1% of reading accuracy provides confidence in the precision of each individual measurement point.
