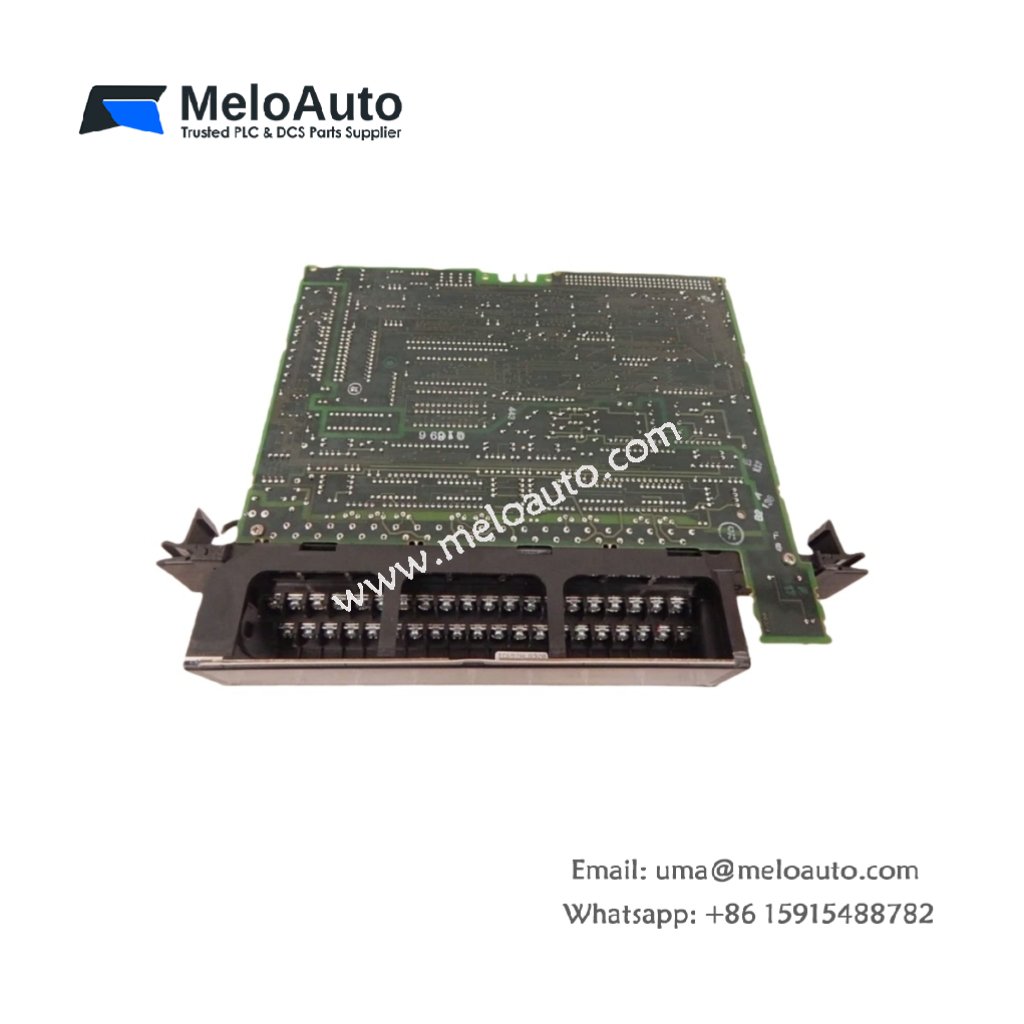

GE IC697ALG320 Analog Output Module for Series 90-70 PLC

The IC697ALG320 is an advanced analog output module designed for the Series 90-70 PLC system. It provides precise 0-20 mA and 4-20 mA current output signals, as well as -10VDC to +10VDC voltage output signals. Manufactured by GE Fanuc, now under Emerson Automation, this module offers exceptional performance and reliability in industrial automation applications.

Key Features of IC697ALG320

The IC697ALG320 module provides four output channels with high-resolution outputs, ideal for controlling analog devices. It offers flexibility with voltage and current output ranges, making it suitable for a variety of applications.

Weight: 0.91 kg (2.00 lbs)
Product Description: Analog Output Module
Number of Output Channels: Four (4)
Output Types: Voltage and Current
Voltage Output Range: -10VDC to +10VDC
Current Output Range: 0 to 22.2 mA (default 4-20 mA)
Analog Output Resolution: 16-bit resolution with 14-bit monotonicity
Voltage Resolution: 312.5 microvolts per LSB step
Conversion Rate: 2.0 ms per channel

Detailed Description of IC697ALG320

The IC697ALG320 module features four high-performance analog output channels, capable of delivering both current and voltage signals. It operates with a 16-bit resolution for voltage output and 14-bit monotonicity, ensuring accurate and stable signal conversion.

This module offers a voltage output range from -10VDC to +10VDC, with a current output range of 0 mA to 22.2 mA. The default current output is 4-20 mA, commonly used in industrial control systems. With a conversion rate of just 2.0 milliseconds per channel, it ensures fast and accurate signal updates.

Designed for reliability, the IC697ALG320 module ensures excellent precision in controlling various industrial devices. Whether you’re working with analog sensors, actuators, or other devices, this module offers a seamless solution for precise analog control.

Technical Specifications

Parameter	Value
Manufacturer	GE Fanuc Emerson
Product Line	Series 90-70
Part Number	IC697ALG320
Weight	2.00 lbs (0.91 kg)
Product Type	Analog Output Module
Number of Output Channels	4
Voltage Output Range	-10VDC to +10VDC
Current Output Range	0 to 22.2 mA (4-20 mA default)
Analog Output Resolution	16-bit resolution with 14-bit monotonicity
Voltage Resolution	312.5 microvolts per LSB step
Conversion Rate	2.0 ms per channel

Why Choose the IC697ALG320?

The IC697ALG320 offers excellent versatility and precision for applications requiring analog control. It provides both voltage and current output signals, making it suitable for a wide range of industrial devices and systems. Its 16-bit resolution and fast conversion rate ensure stable and accurate performance even in demanding environments.

Additionally, the IC697ALG320 is designed for seamless integration into the Series 90-70 PLC system. With a compact form factor and four output channels, this module enables efficient control over analog devices, improving the overall performance and reliability of your industrial automation system.
