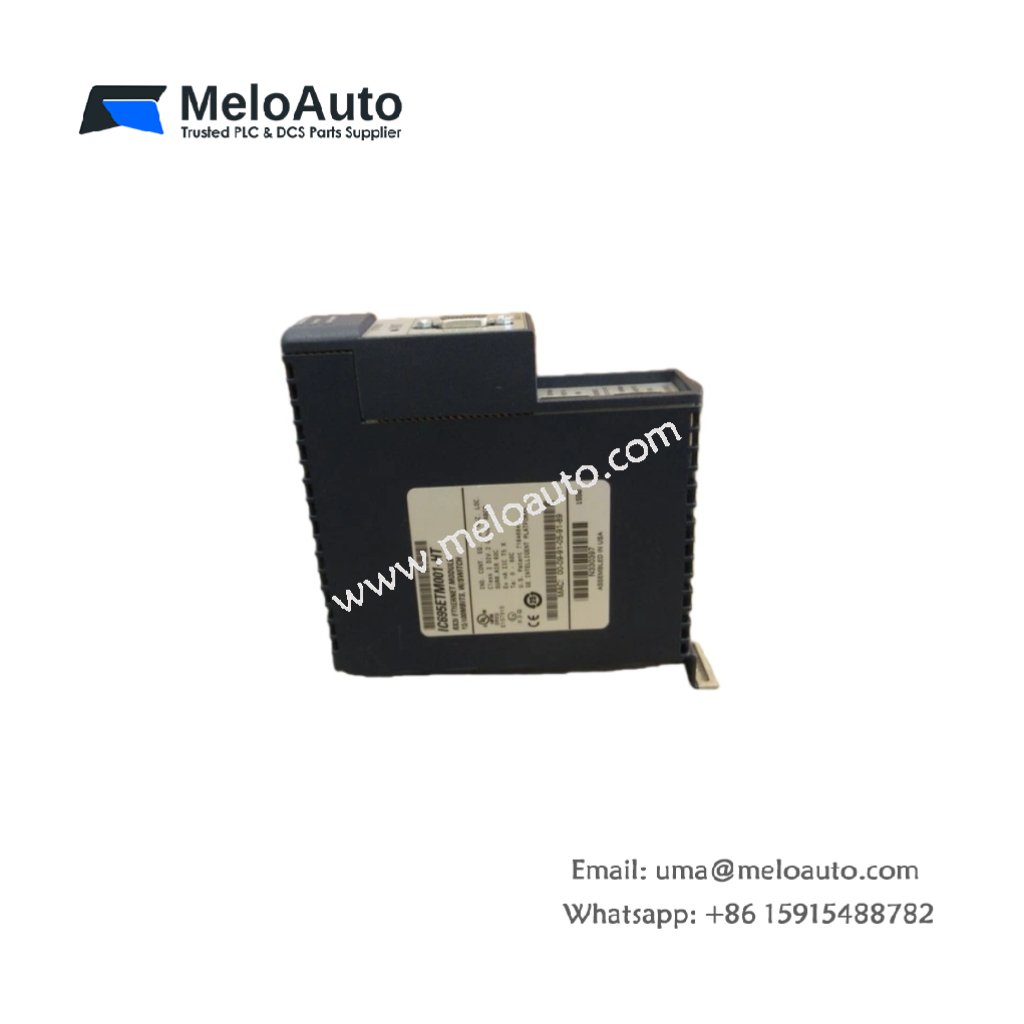

GE IC695ETM001-HT Ethernet Transmitter Module for PACSystems RX3i

Overview

The GE IC695ETM001-HT is a high-performance Ethernet Transmitter Module designed for the PACSystems RX3i series, produced by GE Fanuc Emerson. This module provides seamless Ethernet communication for automation systems and integrates easily into RX3i racks. With two (2) RJ45 connectors supporting Ethernet I/P communication, it delivers efficient data transmission in both industrial and automation applications.

It also includes a 9-pin Sub-D Station manager female connector for serial communication and a reset pushbutton for easy management. The IC695ETM001-HT supports hot-swapping, ensuring minimal downtime during installation or replacement.

Key Features

• Ethernet Ports: The module features two (2) 10/100 Mbps RJ45 ports, providing robust and reliable communication over Ethernet.
• Serial Communication: Equipped with a 9-pin female D-connector, it supports RS-232 serial communication with data rates ranging from 1200 bps to 115200 bps.
• Hot-Swappable: Allows for installation and replacement without interrupting system operation, ensuring continuous performance.
• Autosensing Ports: The module features autosensing Ethernet ports, simplifying network setup by automatically adjusting to the network speed.
• Transmission Rate: The 10/100 Mbps transmission rate ensures fast and reliable data transfer.
• Non-volatile Memory: Built-in non-volatile memory enables daisy-chaining of Ethernet nodes, enhancing network scalability.
• Duplex Modes: Supports both half and full duplex modes, ensuring flexibility in communication speed and network efficiency.

Technical Specifications

Applications

The GE IC695ETM001-HT module is designed for use in PACSystems RX3i systems, ideal for automation, control, and industrial applications. It facilitates reliable Ethernet communication, enabling the integration of complex automation processes. With the ability to support serial communication and daisy-chain Ethernet nodes, this module proves invaluable in expanding network capabilities in industrial environments.

The hot-swappable feature makes it easy to replace the module without affecting the overall system operation, ensuring minimal downtime in critical applications.

Manufacturer

GE Fanuc Emerson is a leader in industrial automation and control solutions. With decades of expertise, their PACSystems RX3i series and related components, such as the IC695ETM001-HT, provide reliable, scalable solutions for modern industrial environments.
