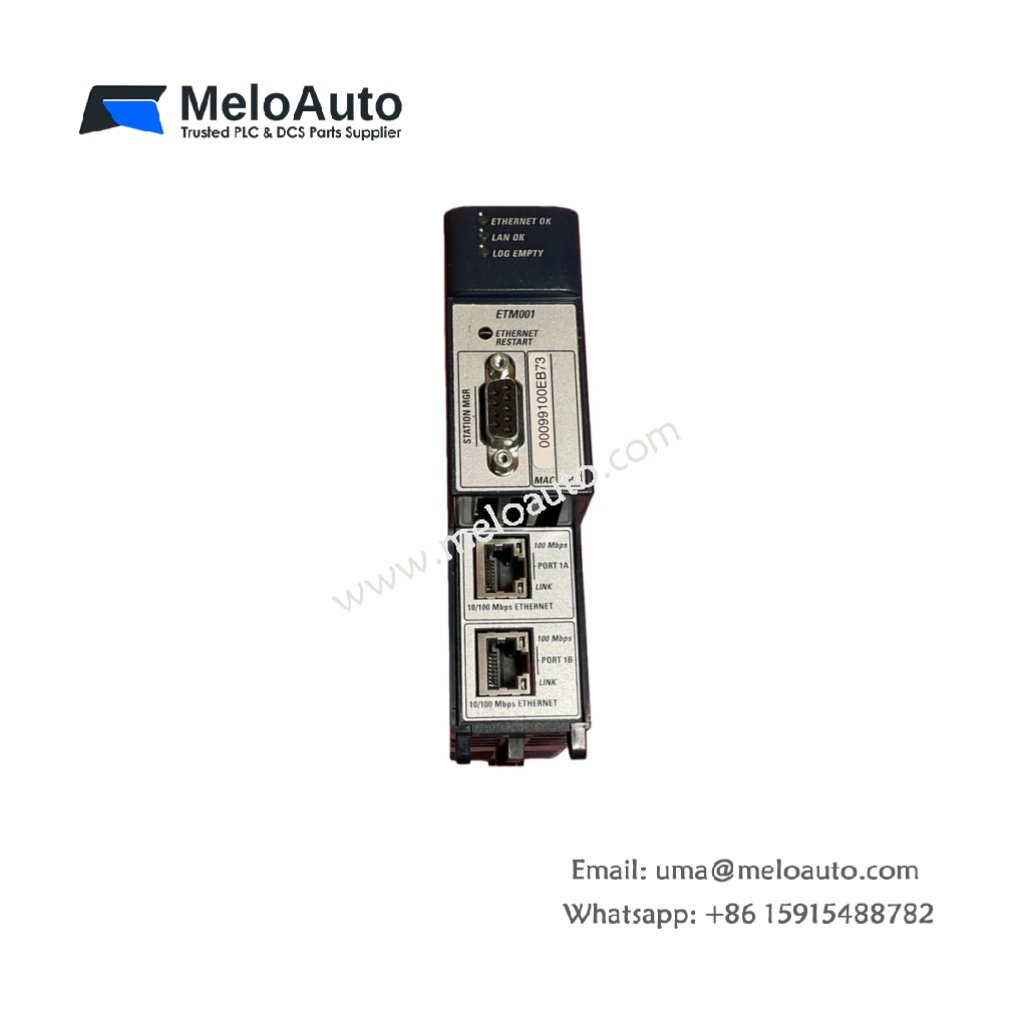

GE IC695ETM001 Ethernet Transmitter Module

The GE IC695ETM001 Ethernet Transmitter Module is an integral component of the PACSystems RX3i product family. Designed by GE Fanuc Emerson, this module ensures seamless Ethernet communication for industrial automation systems. It comes equipped with two RJ45 connectors for Ethernet I/P communication and a 9-pin Sub-D Station Manager connector. Additionally, it features a convenient reset pushbutton for ease of operation. This module fits into a single slot of an RX3i rack, enabling fast installation and efficient connectivity.

Key Specifications

Product Features

• Dual Ethernet Ports: The IC695ETM001 features two 10/100 Mbps Ethernet ports with auto-negotiation for flexible and reliable communication.
• Compatibility: This module seamlessly integrates with PACSystems RX3i and supports communication with various controllers, such as Series 90 and VersaMax controllers.
• Protocols Supported: It supports Service Request Transport Protocol (SRTP), Modbus TCP, and Ethernet Global Data (EGD) protocols over a four-layer TCP/IP stack.
• High-Speed Processor: The module uses a 200 MHz Ethernet processor to ensure efficient data handling and low latency.
• Non-volatile Memory: The built-in non-volatile memory allows for the daisy-chaining of Ethernet nodes, enhancing system scalability and flexibility.
• Versatile Duplex Modes: It operates in both half-duplex and full-duplex modes, adapting to your network’s requirements.
• Easy Installation: The IC695ETM001 is a hot-swappable module that installs easily into an RX3i slot, making system upgrades or replacements simple.

Dimensions and Weight

• Net Weight: 1.00 lbs (0.45 kg)
• Dimensions:
  • Depth/Length: 135 mm
  • Height: 33 mm
  • Width: 85 mm

Product Overview

The GE IC695ETM001 Ethernet Transmitter Module is designed to provide reliable Ethernet connectivity for PACSystems RX3i. With two RJ45 ports and non-volatile memory, this module supports 10/100 Mbps transmission rates and allows for the daisy-chaining of Ethernet nodes in a flexible industrial network setup. It enables the RX3i system to communicate with other controller platforms, such as Series 90 and VersaMax, through Modbus TCP, SRTP, and EGD protocols.

The IC695ETM001 is fully hot-swappable and offers a high-speed 200 MHz Ethernet processor, ensuring reliable and efficient data transfer. Its non-volatile memory and autosensing ports make it a reliable choice for expanding or modifying industrial Ethernet networks.

Conclusion

The GE IC695ETM001 Ethernet Transmitter Module is a powerful and flexible solution for Ethernet communication in PACSystems RX3i environments. With its robust features, including high-speed Ethernet ports, modular design, and protocol compatibility, this module enhances industrial communication and data exchange.
