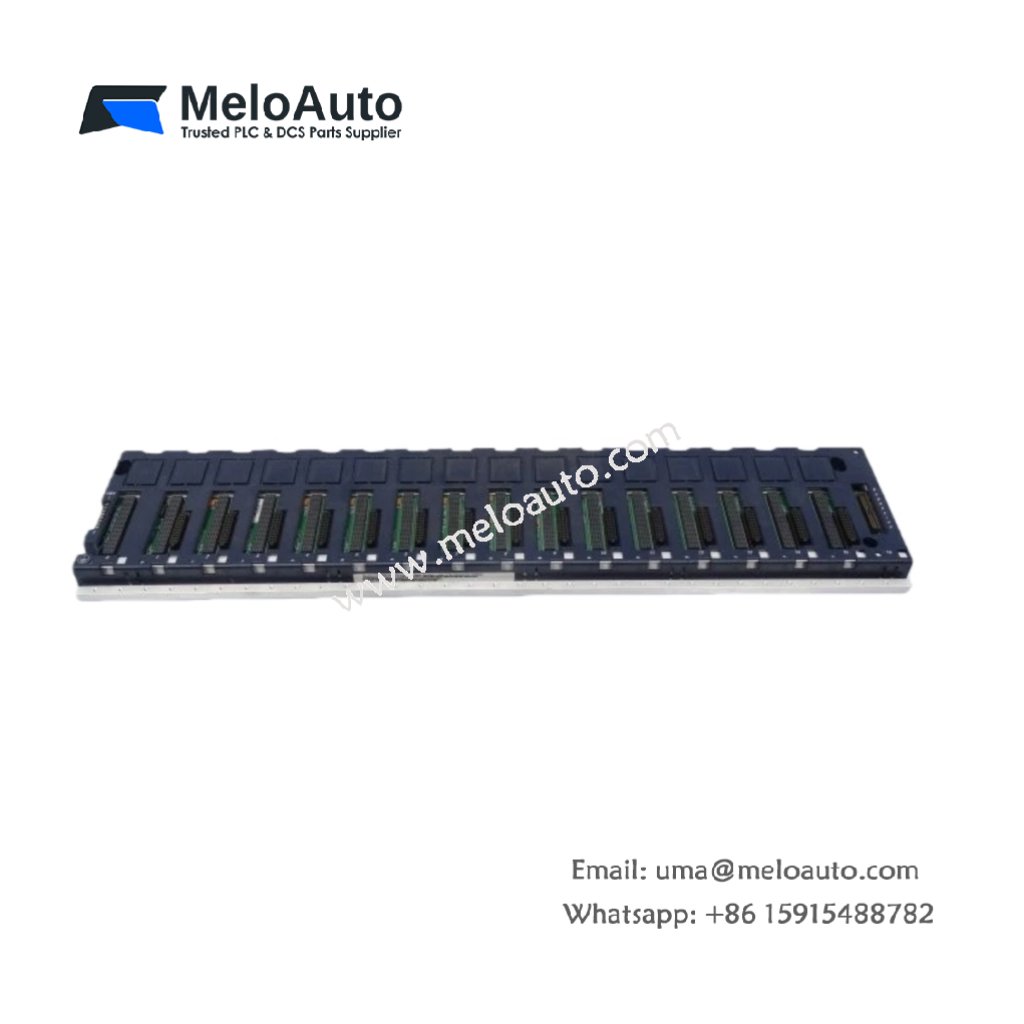

GE IC695CHS016 16-Slot Universal Backplane for RX3i Series

Overview of the GE IC695CHS016 Backplane

The GE IC695CHS016 is a 16-slot universal backplane designed for use with the GE Fanuc RX3i Series controllers. This backplane supports both PCI and high-speed serial communication, ensuring seamless integration and reliable operation for industrial automation systems. Its advanced design provides a stable platform for I/O modules and controllers, making it essential for complex automation tasks.

Key Features of the GE IC695CHS016 Backplane

16 Slots: The IC695CHS016 features 16 slots, allowing you to accommodate a wide variety of modules in your automation setup.
PCI and High-Speed Serial Support: Supports both PCI and high-speed serial interfaces, offering enhanced data transfer rates and system efficiency.
Universal Compatibility: Compatible with a broad range of GE Fanuc RX3i Series controllers and I/O modules, making it versatile for different applications.
Compact Dimensions: The backplane measures 5.57 x 23.7 x 5.80 inches (H x W x D), fitting easily into standard control cabinets and system setups.
Low Power Consumption: The backplane operates with 240 mA @ 5 VDC and 600 mA @ 3.3 VDC, ensuring efficient power usage for your system.

Technical Specifications

Feature	Specification
Model	GE IC695CHS016
Slots	16
Interface	PCI, High-Speed Serial
Dimensions (H x W x D)	5.57 x 23.7 x 5.80 inches (141 x 602 x 147 mm)
Internal Power Consumption	240 mA @ 5 VDC, 600 mA @ 3.3 VDC
Weight	N/A
Mounting Type	DIN Rail Mountable

Application and Compatibility

The GE IC695CHS016 is primarily used in industrial automation systems that require a stable, high-performance backplane for GE Fanuc RX3i Series controllers. Whether you are configuring a new system or expanding an existing one, the IC695CHS016 offers seamless integration with a variety of I/O modules and control devices. Its high-speed serial and PCI support ensures it can handle demanding communication needs, making it ideal for real-time control applications.

Why Choose the GE IC695CHS016 Backplane?

The GE IC695CHS016 offers reliable performance, flexibility, and ease of integration into your automation system. Its ability to support both PCI and high-speed serial communication makes it an excellent choice for fast and efficient data processing. Additionally, with its compact design and low power consumption, it provides an efficient solution for your control system needs. Trust the GE IC695CHS016 for your GE Fanuc RX3i Series setups, ensuring optimal operation and long-term reliability.
