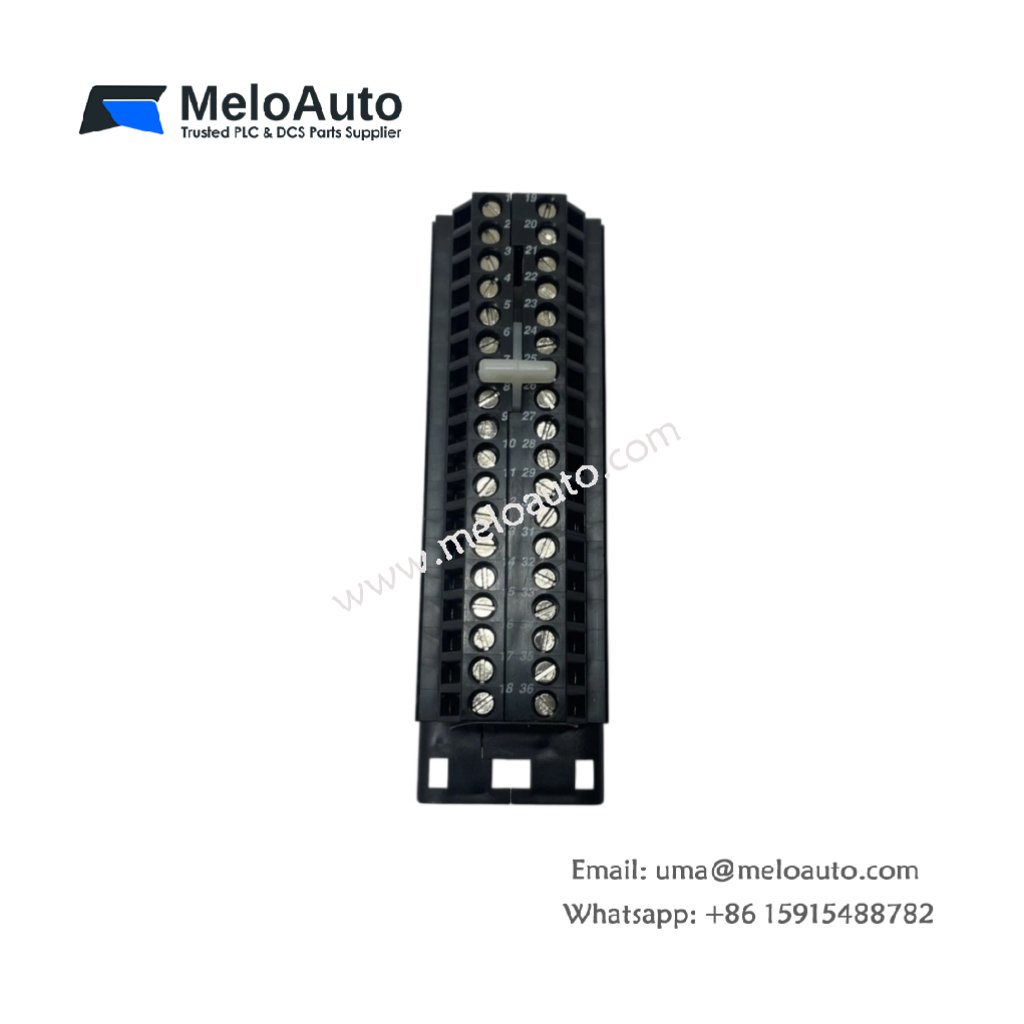

GE IC694TBB032 High-Density Terminal Block

The GE IC694TBB032 is a high-density, box-style terminal block from the PACSystem RX3i series, previously produced by GE Intelligent Platforms, now part of Emerson Automation. This terminal block features 36 screw-type terminals to ensure secure and stable electrical connections within your automation system. It is specifically designed to work with RX3i and Series 90-30 high-density I/O modules, especially the 16-channel modules.

Key Features

Model: GE IC694TBB032
Category: Terminal Block
Manufacturer: GE Fanuc Emerson
Product Line: PACSystem RX3i
Part Number: IC694TBB032

Technical Specifications

The GE IC694TBB032 terminal block guarantees excellent performance with 36 screw-type terminals and the ability to handle a wide range of wire sizes. The following table summarizes its key specifications:

Specification	Details
Number of Terminals	36
Terminal Type	Screw-type terminals
Wire Size Range	#14-26 AWG (solid or stranded wire)
Stripping Length	0.310 inches (7.87 mm)
Size (Depth)	0.5 inches
Compatible Modules	RX3i and Series 90-30 High-density I/O
Tightening Torque	7 lb-in
Number of Pins	36
Weight	0.31 lbs (0.14 kg)

Product Description

The GE IC694TBB032 terminal block features 36 screw-type terminals, capable of handling a variety of wire sizes ranging from #14 to #26 AWG (both solid and stranded). It is compatible with RX3i and Series 90-30 high-density I/O modules, particularly those that are 16-channel modules. The terminal block offers excellent flexibility for your industrial automation needs.

The wire stripping length is 0.310 inches (7.87 mm), ensuring easy installation. The 7 lb-in tightening torque ensures the terminals maintain a stable connection, even under demanding conditions. With a compact depth of 0.5 inches, the terminal block fits easily into tight spaces, helping optimize space in industrial systems.

Applications and Benefits

Compact and Efficient: The terminal block’s high-density design allows for optimal use of space in tight installations.
Reliable Connections: Screw-type terminals guarantee strong and secure connections, minimizing the risk of poor electrical contact.
Wide Compatibility: It supports RX3i and Series 90-30 I/O modules, offering flexibility for integration with various systems.
Durability: Designed for long-term use in industrial settings, the GE IC694TBB032 provides stable and reliable connections throughout its service life.

Conclusion

The GE IC694TBB032 terminal block delivers a high-density solution for industrial control systems, ensuring reliable, secure electrical connections. It is compatible with RX3i and Series 90-30 modules, making it a versatile choice for various industrial applications. With its robust design and high-quality terminals, the GE IC694TBB032 is ideal for tight installations that demand secure connections and durable performance.
