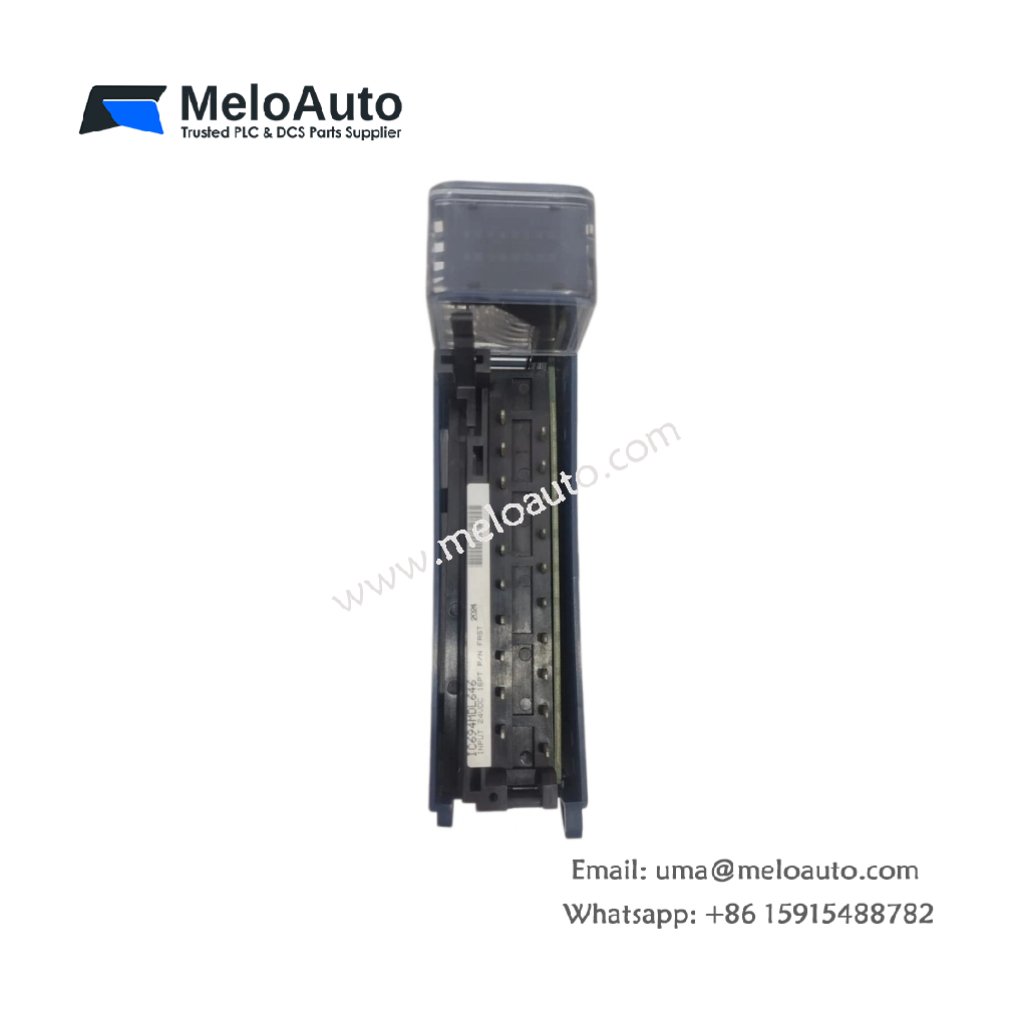

GE IC694MDL646 Input Module: Reliable and Efficient for RX3i PacSystem

The GE IC694MDL646 is a powerful input module from the RX3i PacSystem series. It ensures seamless integration within industrial automation environments by providing 16 input points and operating at a rated voltage of 24 Volts DC. Though this module was discontinued in 2020, it remains crucial for upgrading and maintaining legacy systems.

Product Overview

The GE IC694MDL646 Input Module is specifically designed to integrate easily with the RX3i PacSystem. It features a broad input voltage range of 0 to 30 Volts DC, providing flexibility for various input devices. With 16 input points, the module supports efficient data processing. Furthermore, its low power consumption—just 80 milliamps from a 5V bus and 125 milliamps from a 24V supply—ensures long-term energy efficiency. Notably, the GE IC694MDL646 replaces the older 6ES5948-3UA21, offering improved performance and better reliability.

Key Features

• Model: GE IC694MDL646
• Category: Input Module for RX3i PacSystem
• Manufacturer: GE Fanuc Emerson
• Rated Voltage: 24 Volts DC
• Input Current: 7 milliamps per input
• Input Voltage Range: 0 to 30 Volts DC
• Power Consumption: 80 milliamps (5V bus), 125 milliamps (24V supply)
• Input Points: 16 points, offering great flexibility
• Operating Temperature: 0°C to 60°C, designed for stable operation
• Storage Temperature: -40°C to 85°C for demanding environments
• Humidity: 5% to 95%, non-condensing
• Shock Resistance: 15G, 11ms for increased durability

Technical Specifications

Advantages

1. Efficient Power Consumption: The GE IC694MDL646 uses minimal power, drawing only 80 milliamps from the 5V bus and 125 milliamps from a 24V supply.
2. Wide Voltage Compatibility: It accommodates input voltage ranges from 0 to 30 Volts DC, enabling seamless integration with various input devices and sensors.
3. Flexible System Design: With 16 input points, the module offers flexibility to tailor your system according to specific requirements.
4. Robust Durability: The GE IC694MDL646 module is built to last. It is shock-resistant up to 15G and operates reliably in temperatures ranging from 0°C to 60°C.

Applications

The GE IC694MDL646 Input Module is ideal for a broad range of industrial applications, including process control, manufacturing, and automation systems. It is particularly suitable for RX3i PacSystem installations, where precision and reliability are paramount. Additionally, it plays a vital role in upgrading older systems, offering easy integration and continuous performance.

Conclusion

The GE IC694MDL646 Input Module is an excellent solution for industrial automation. With 16 input points, wide voltage compatibility, and low power consumption, it ensures long-term system efficiency. Despite being discontinued, it remains a valuable asset for maintaining and upgrading legacy systems, offering improved performance, reliability, and flexibility.
