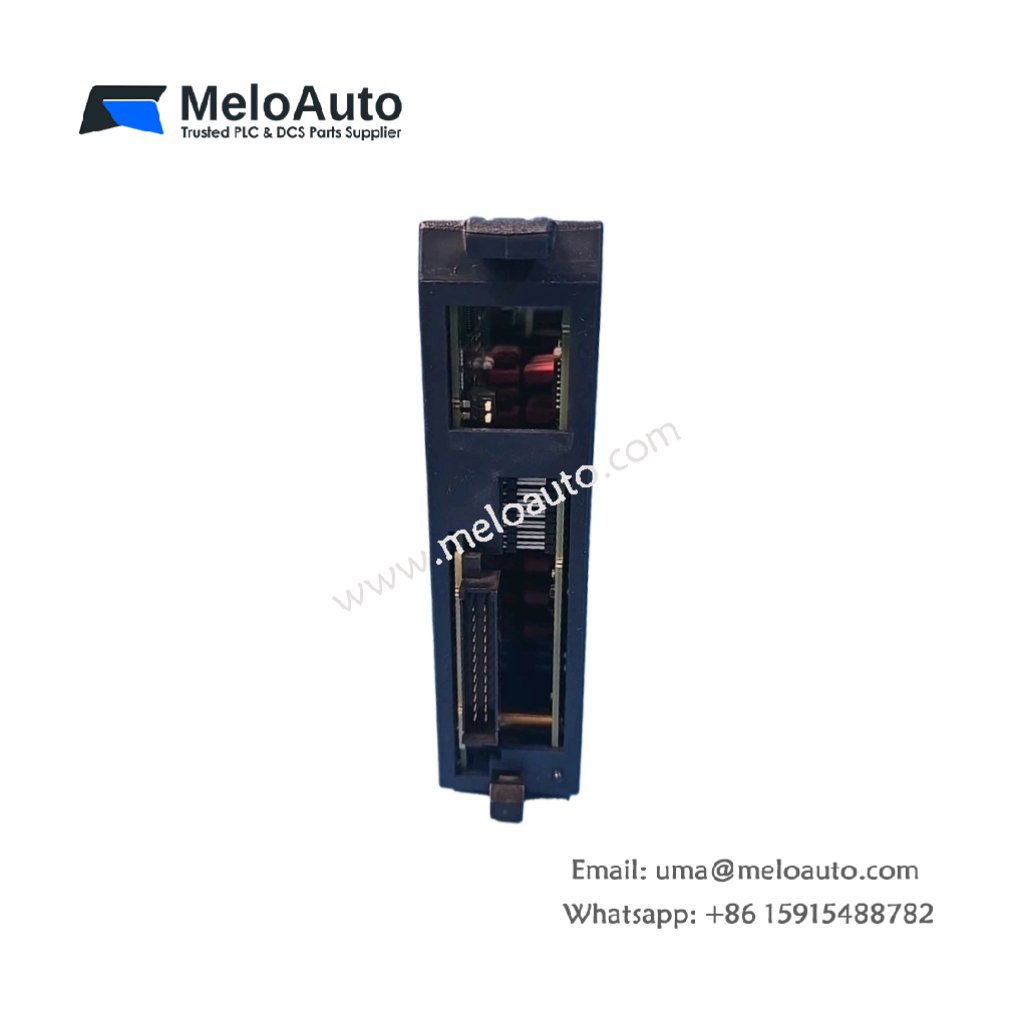

GE IC694MDL250 120 VAC Discrete Input Module

The GE IC694MDL250 is a reliable 120 VAC discrete input module from the PACsystem RX3i series. It is designed by GE Fanuc Emerson and offers sixteen (16) individually isolated input channels. This module supports a wide input voltage range of 0 to 132 VAC, with a nominal input voltage of 120 VAC. Its compact size and efficient design make it ideal for integration into industrial control systems that demand precise input signal processing.

Key Features:

Manufacturer: GE Fanuc Emerson
Product Line: PACsystem RX3i
Module Type: Discrete Input Module
Number of Channels: 16 individually isolated channels
Input Voltage Range: 0 to 132 VAC, with a nominal input of 120 VAC
Input Frequency: 47-63 Hz
On State Voltage: 70 VAC to 132 VAC
Off State Voltage: 0 VAC to 20 VAC
On/Off Response Times: 30 ms (on), 45 ms (off)
Weight: 0.50 lbs (0.23 kg) – lightweight for easy installation
Mounting: Supports panel and DIN rail mounting for versatile installation
Communication: RS-485 for reliable data transmission
Current Draw: 60 mA (all outputs active)

Technical Specifications:

Specification	Detail
Series	PACsystem RX3i
Module Type	Discrete Input Module
Number of Channels	16
Input Voltage Range	120 VAC nominal, 0-132 VAC range
Input Frequency	47-63 Hz
On State Voltage	70 VAC to 132 VAC
Off State Voltage	0 VAC to 20 VAC
On Response Time	30 ms
Off Response Time	45 ms
Input Current (per channel)	7 mA
Current Draw (all outputs active)	60 mA
Isolation (Optical and Channel)	250 V continuous, 1500 VAC for 1 minute
Mounting	Panel or DIN Rail mounting
Communication	RS-485
Environment Rating	Class 1, Division 2

The GE IC694MDL250 module ensures seamless and reliable operation in industrial control environments. With its 16 isolated channels, it supports both AC voltage and signal input frequencies between 47 and 63 Hz. Furthermore, it integrates easily into existing control systems, offering fast response times of 30 ms for on-state and 45 ms for off-state signals.

Applications:

The IC694MDL250 is ideally suited for environments that require precise control and fast input processing. It finds its application in systems such as machinery control, process automation, and equipment monitoring. This module allows users to reliably monitor and manage multiple input devices, including switches, sensors, and relays, ensuring system accuracy and performance.

About the Manufacturer:

GE Fanuc, now part of Emerson Automation, has a proven track record of providing cutting-edge solutions for industrial automation. The PACsystem RX3i series, which includes the IC694MDL250 module, delivers high reliability and scalability, making it a trusted choice for automation professionals worldwide.
