GE IC694MDL240 Discrete Input Module

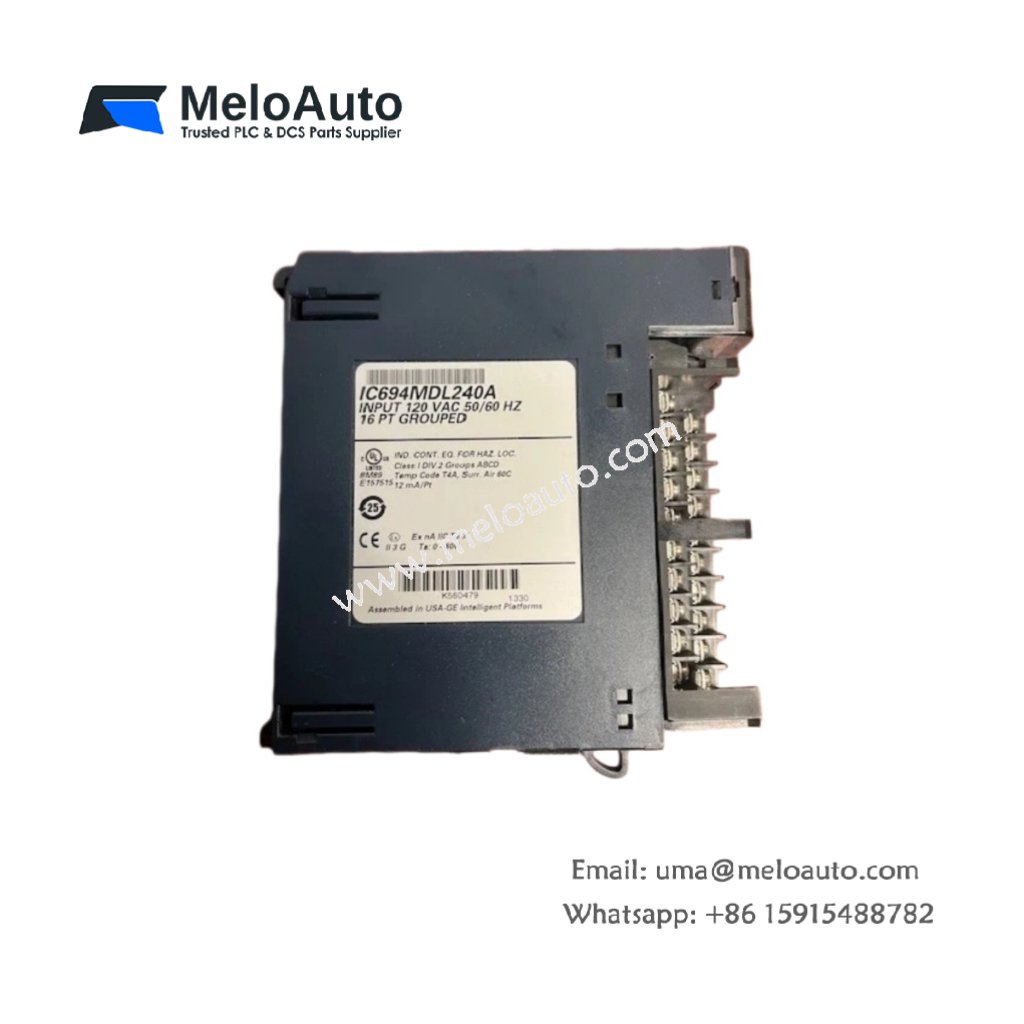

The GE IC694MDL240 is an efficient 120 VAC discrete input module designed specifically for the PACsystem RX3i series. Manufactured by GE Fanuc Emerson, this module supports 16 discrete input channels within a single group, providing a reliable solution for industrial automation systems.

Key Features

Model: GE IC694MDL240
Category: Discrete Input Module
Manufacturer: GE Fanuc Emerson
Series: PACsystem RX3i
Part Number: IC694MDL240
Product Description: 120 VAC Discrete Input Module
Product Line: RX3i PACsystem

Technical Specifications

The GE IC694MDL240 module offers outstanding performance and precision, making it well-suited for demanding environments. Below are the key technical specifications:

Specification	Details
Number of Channels	16
Input Signal Range	0 to 132 VAC
Nominal Input Voltage	120 VAC
Input Grouping	Single group of 16 inputs
Input Current	7 milliamps
Input Frequency	47–63 Hz
Power Consumption	90 milliamps
Optical Isolation	250 V continuous; 1500 VAC for 1 minute

Product Description

The GE IC694MDL240 module is integral to PACsystem RX3i configurations. It accepts input voltages from 0 to 132 VAC, with a nominal voltage of 120 VAC. The 16 discrete input channels efficiently handle signals across a wide range of industrial devices.

Each input channel draws only 7 milliamps, offering precise control. Additionally, the optical isolation of 250 volts continuous and 1500 VAC for 1 minute ensures protection against electrical spikes, maintaining system integrity.

Applications and Benefits

Industrial Automation: The module seamlessly integrates into control systems, enabling precise monitoring and control of field devices.
Enhanced Performance: With its wide voltage range and isolation features, this module ensures stability and reliability in critical applications.
Compact Design: Weighing just 0.56 lbs (0.26 kg), it is easy to incorporate into existing panel setups without taking up unnecessary space.
Improved Safety: The optical isolation safeguards the system by preventing potential electrical damage, even in high-voltage environments.

Conclusion

The GE IC694MDL240 is a vital component in PACsystem RX3i configurations. It offers a 120 VAC discrete input module that excels in industrial automation, providing stability, safety, and flexibility for demanding applications.
