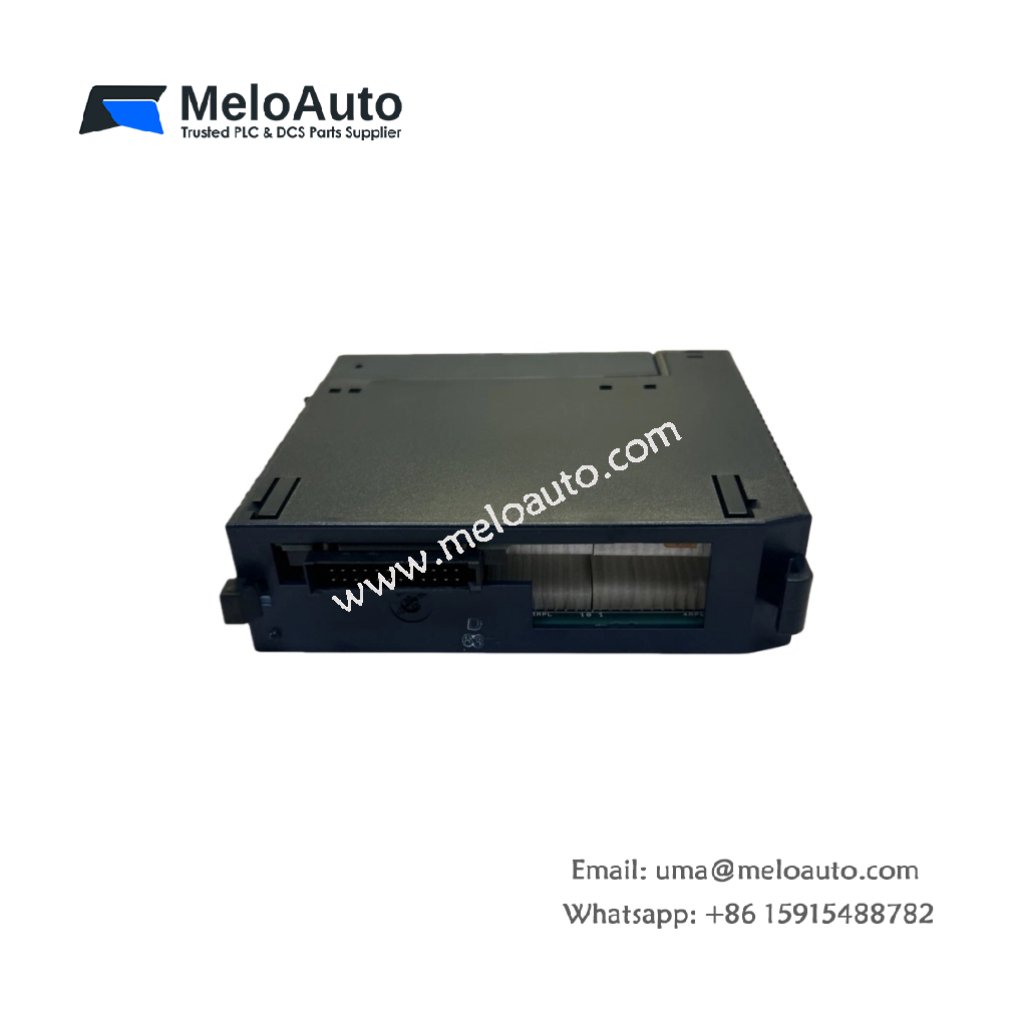

GE IC694BEM331 Genius Bus Controller Module

Product Overview:

The GE IC694BEM331 is a powerful Genius Bus Controller Module from the GE / Emerson PACSystems RX3i family. It serves as a critical interface between the PACSystems RX3i and the Genius Serial I/O bus. This module enables seamless communication and data exchange with various devices, including Genius blocks, PLCs, Remote I/O drops, and VersaMax systems.

Designed to be a single-slot module, the IC694BEM331 is compact yet highly functional. It supports up to 128 bytes of data exchange per message, allowing for efficient and reliable communication. Additionally, it can handle 128 bytes of global data, making it an essential component for large-scale automation setups.

The IC694BEM331 can accommodate up to eight modules in a single RX3i system, offering exceptional scalability and flexibility in system configuration. It supports a variety of communication protocols, including Genius and offers a range of baud rates for optimized performance.

Key Features:

High Data Capacity: Exchange up to 128 bytes with each Genius I/O device and receive 128 bytes of global data.
Seamless Communication: Compatible with Genius Bus Controllers, Remote I/O drops, VersaMax, and Field distributed I/O.
Scalable Configuration: Supports up to eight modules in an RX3i system for extensive system expansion.
Multiple Protocol Support: Compatible with the Genius protocol for streamlined communication.
Flexible Connectivity: Supports a daisy-chained bus cable, single twisted-pair, shielded cable, or fiber optics.
Reliable Data Rates: Capable of 153.5Kbaud standard/extended, 76.8Kbaud, or 38.4Kbaud communication speeds.

Technical Specifications:

Parameter	Specification
Manufacturer	GE Fanuc Emerson
Product Line	RX3i PACSystems
Part Number	IC694BEM331
Product Type	Genius Bus Controller
Weight	1.13 lbs (0.51 kg)
Isolation	2000V Hi-Pot, 1500V transient common mode rejection
Protocol Support	Genius
Entity Type	Master
Data Length	128 bytes per message
Data Rates	153.5Kbaud, 76.8Kbaud, 38.4Kbaud
Bus Type	Daisy-chained bus cable, single twisted-pair plus shield, Twinax, fiber optic, and modems
Bus Termination	75, 100, 120, or 150 Ohm resistor at both ends
Maximum Number of Devices	32 devices at all baud rates except 38.4Kbaud; 16 devices at 38.4Kbaud
Current Consumption	300mA at 5VDC, maximum
Backplane Support	No backplane restrictions
Communications	Global Data and Datagrams
Description	Genius Bus Controller

Why Choose the GE IC694BEM331 Genius Bus Controller Module?

High Scalability: The module supports up to eight devices in an RX3i system, providing flexibility in large automation setups.
Reliable Data Exchange: It ensures efficient data communication with 128-byte message exchanges for optimal performance.
Versatile Compatibility: Connect seamlessly with Genius I/O devices, PLCs, and Remote I/O drops for comprehensive control.
Optimized Communication Speed: With a variety of baud rate options, including 153.5Kbaud, it offers speed and efficiency for time-critical tasks.
Flexible Connectivity Options: The module supports multiple cable types and communication mediums, including fiber optics and modems, ensuring wide compatibility.
