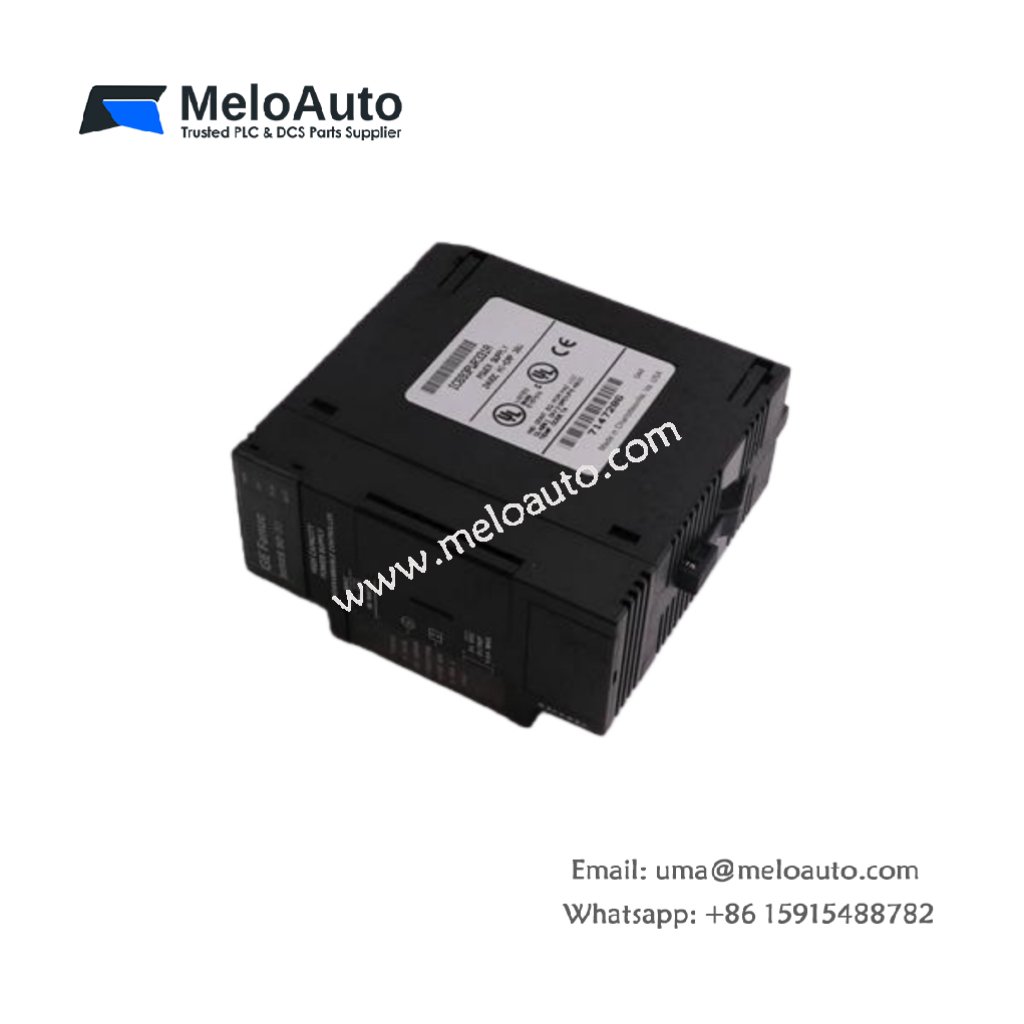

GE IC693PWR321 Series 90-30 Power Supply Module

Overview

The GE IC693PWR321 is a high-performance power supply module from the GE Fanuc Series 90-30 product line. It is designed to provide reliable and efficient power to the Series 90-30 PLCs. The module offers a versatile solution, capable of supporting both AC and DC input sources. It delivers various output voltages, including 5VDC and 24VDC, to meet the needs of different industrial applications. With a robust build and advanced protection features, the IC693PWR321 ensures stable operation even in demanding environments.

Key Features

• Power Output: The IC693PWR321 delivers up to 30 watts of power, with various voltage outputs to suit different components.
  • 15 watts @ 5VDC
  • 15 watts @ 24VDC Relay
  • 20 watts @ 24VDC Isolated
• Input Voltage Range: Supports both AC and DC input sources:
  • 85 to 264 VAC
  • 100 to 300 VDC
• Inrush Current: The module has an inrush current of 4A peak, with a maximum duration of 250 milliseconds, ensuring safe operation when power is first applied.
• Protection Features: Built-in smart switch fusing and a short-circuit protection mechanism to safeguard the hardware from damage during fault conditions.
• Communication Interface: Equipped with an RS-485 serial port, it supports communication with peripheral devices and CPUs.

Technical Specifications

Detailed Overview

The IC693PWR321 is a key component in the GE Fanuc Series 90-30 PLC system. Installed in the leftmost slot of the baseplate, it provides a stable power supply to ensure the efficient operation of connected modules. The module supports both AC and DC input sources, offering flexibility for a variety of industrial applications.

This power supply module features advanced diagnostics and event tracking, making it easier for operators to monitor system performance. The IC693PWR321 includes six terminals for easy operator connections and integrates protection mechanisms to prevent damage in case of electrical faults. It also comes with short-circuit protection, ensuring the safety of the hardware in case of power surges or faults.

For communication, the module is equipped with an RS-485 serial port. This allows for easy connection to peripheral devices and other controllers, ensuring seamless integration into existing control systems. Additionally, the module complies with important safety and performance standards, including cULus and CE certifications.

Application and Compatibility

The IC693PWR321 is fully compatible with any GE Fanuc Series 90-30 CPU model. Whether used in industrial automation, manufacturing processes, or control systems, this power supply module ensures consistent and reliable performance. Its ability to handle a wide range of input voltages, combined with its robust protection features, makes it an ideal choice for various industrial environments.
