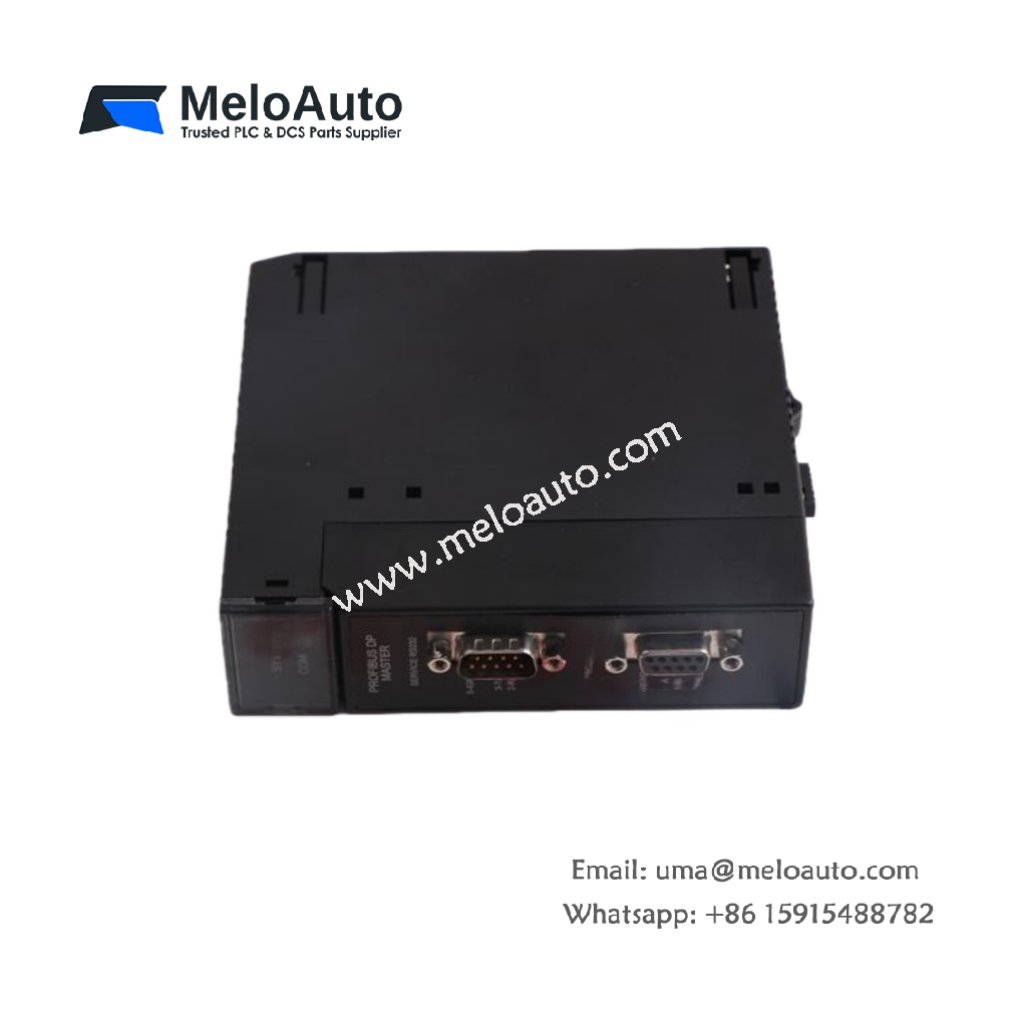

GE IC693PCM301 Programmable Coprocessor Module

The GE IC693PCM301 is a versatile Programmable Coprocessor Module (PCM) for the Series 90-30 PLC. Manufactured by GE Fanuc, now part of Emerson Automation, this module enhances the functionality of the Series 90-30 PLC by allowing it to run non-native applications. It provides seamless integration with other devices through Modbus RTU and GE Fanuc’s CCM protocols.

Key Features

Model: IC693PCM301
Category: Programmable Coprocessor Module (PCM)
Manufacturer: GE Fanuc (Emerson Automation)
Product Line: Series 90-30
Communication Protocols: Modbus RTU, GE Fanuc CCM
Memory: 192 Kbytes (47 Kbytes for Megabasic memory)
Weight: 1.06 lbs (0.48 kg)
LED Indicators: 3 LEDs (Module OK, US1, US2)
Slot Width: Single slot
Battery: Lithium battery for memory backup (IC693ACC301)
Internal Power Consumption: 425 mA at 5 VDC
Compatibility: Compatible with Series 90-30 PLC, excluding CPU/1 slot and embedded CPUs (CPU 311, 313, 323)
Applications Supported: Supervisory Control and Data Acquisition (SCADA) systems, Basic Programming Language (BAS) applications, and data exchange with external devices.

Technical Specifications

Parameter	Specification
Product Type	Programmable Coprocessor Module (PCM)
Memory	192 Kbytes total (47 Kbytes Megabasic memory)
Slot Width	Single slot
LED Indicators	3 (Module OK, US1, US2)
Battery Backup	Lithium battery (part number IC693ACC301)
Internal Power Consumption	425 mA at 5 VDC
Communication Protocols	Modbus RTU, GE Fanuc CCM
Weight	1.06 lbs (0.48 kg)
Compatibility	Series 90-30 PLC (excludes certain CPU models)
Applications	SCADA systems, BAS applications, data exchange with devices

Overview of the IC693PCM301

The GE IC693PCM301 is a Programmable Coprocessor Module designed to extend the processing capabilities of the Series 90-30 PLC. It provides the necessary hardware support for running applications that are not native to the Series 90-30 controller, such as those written in Basic Programming Language (BAS). This makes it ideal for applications in Supervisory Control and Data Acquisition (SCADA) systems, where custom executable files are needed.

The module features a 25-pin D-shell port, effectively integrating Port 1 and Port 2 for communication. This port supports Modbus RTU and GE Fanuc CCM protocols, enabling data exchange with external devices like programming terminals, CRTs, bar code readers, scales, and Remote Terminal Units (RTUs).

The IC693PCM301 also offers a convenient restart pushbutton, allowing for module initialization without rebooting the entire rack or requiring software interventions. The module’s LED indicators, including Module OK, US1, and US2, provide real-time status updates for monitoring its performance.

Key Benefits

Extended Processing Power: Runs non-native applications like BAS for SCADA systems.
Flexible Communication: Supports Modbus RTU and CCM protocols for seamless data exchange.
Memory Expansion: 192 Kbytes of memory, with 47 Kbytes dedicated to Megabasic applications.
Efficient Setup: Easy integration into the Series 90-30 PLC system, with no need for external racks or software restart.
Battery Backup: Equipped with a lithium battery to preserve memory and prevent data loss.

The IC693PCM301 is an essential addition to the Series 90-30 PLC family, enabling more complex automation tasks and better integration with other industrial devices. Its simple installation, powerful memory capabilities, and flexible communication protocols make it a valuable solution for a wide range of industrial applications.
