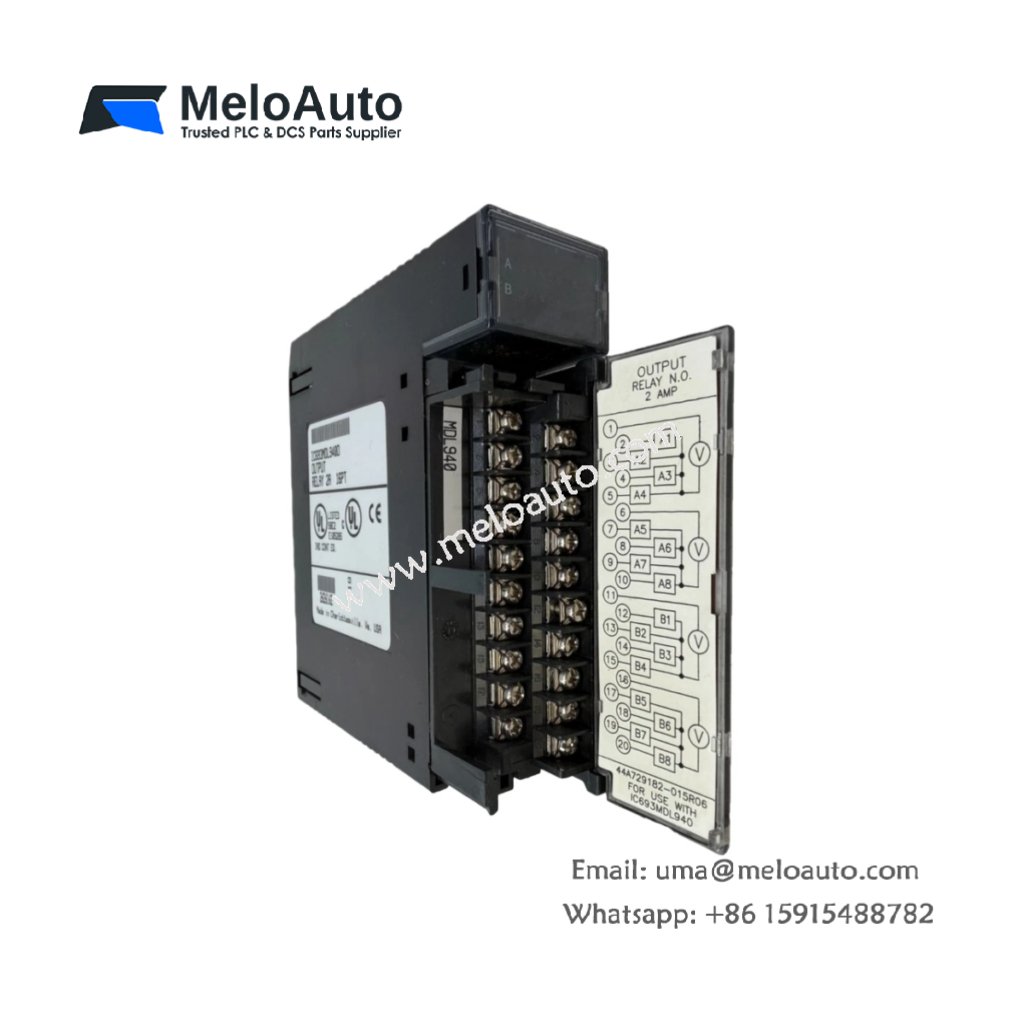

The GE IC693MDL940 is a relay output module from GE Fanuc Emerson’s Series 90-30. Designed for efficient and flexible control, this module supports up to 16 outputs. The outputs are grouped in four sets of four, offering organized management for various devices. With its compatibility across a broad range of DC and AC voltages, the IC693MDL940 provides exceptional flexibility for diverse industrial applications.
Key Features
- Versatile Output Configurations: The IC693MDL940 features 16 outputs, arranged in 4 groups of 4 outputs each, enabling systematic control of multiple devices in parallel.
- Wide Voltage Compatibility: Supports both 24V DC and 120/240V AC systems, making it suitable for a variety of applications across industries.
- High Load Capacity: Each output can handle up to 2 Amps of load current, while the total common load supports up to 4 Amps, ensuring reliable operation under heavy-duty conditions.
- Fast Response Time: With a maximum response time of just 15 milliseconds for both on and off switching, the IC693MDL940 guarantees quick device activation and deactivation.
- Inrush Current Protection: The module can handle an inrush current of up to 5 Amps, ensuring stable operation even during startup conditions.
Technical Specifications
| Specification | Details |
|---|---|
| Model | IC693MDL940 |
| Manufacturer | GE Fanuc Emerson |
| Product Line | Series 90-30 |
| Part Number | IC693MDL940 |
| Module Type | Relay Output Module |
| Total Number of Outputs | 16 Outputs |
| Output Groups | 4 Groups of 4 Outputs |
| Maximum Load Current per Output | 2 Amps |
| Maximum Load Current per Common | 4 Amps |
| Nominal Rated DC Voltage | 24V DC |
| Nominal Rated AC Voltage | 120/240V AC |
| DC Operating Voltage Range | 5-30V DC |
| AC Operating Voltage Range | 5-250V AC, 50/60 Hz |
| Minimum Load Current | 10 mA |
| Maximum Inrush Current | 5 Amps |
| Maximum Response Time | 15 milliseconds (on and off) |
| Weight | 0.81 lbs (0.37 kg) |
Performance and Reliability
- Quick Activation: The IC693MDL940 boasts a maximum response time of 15 milliseconds, ensuring quick switching operations. This makes it ideal for time-sensitive processes in industrial control systems.
- Durability: With a minimum load current of 10 mA, the module guarantees proper activation of connected devices. Additionally, it handles up to 5 Amps inrush current, providing reliable protection against surge conditions during device startup.
- Flexible Voltage Operation: Whether for DC applications (with an operating range of 5-30V DC) or AC systems (ranging from 5-250V AC at 50/60 Hz), the IC693MDL940 adapts to various system requirements.
Applications
The GE IC693MDL940 is ideal for use in a wide range of industries, including:
- Industrial Automation: Perfect for managing outputs across control systems, including PLC and DCS configurations.
- Power and Energy Control: Suitable for power generation and other energy sectors requiring reliable output switching.
- Process Control: Ensures accurate control over various processes in manufacturing or chemical plants.
- Legacy System Integration: Designed to integrate seamlessly with existing GE Fanuc systems, especially in industries with established Series 90-30 infrastructure.
Conclusion
The GE IC693MDL940 relay output module provides a high-performance solution for industrial control systems. With 16 outputs, flexible voltage support, high load capacity, and fast response time, it offers versatile control for various applications. Whether in power generation, chemical processing, or other industrial sectors, this module ensures reliable performance under demanding conditions.
