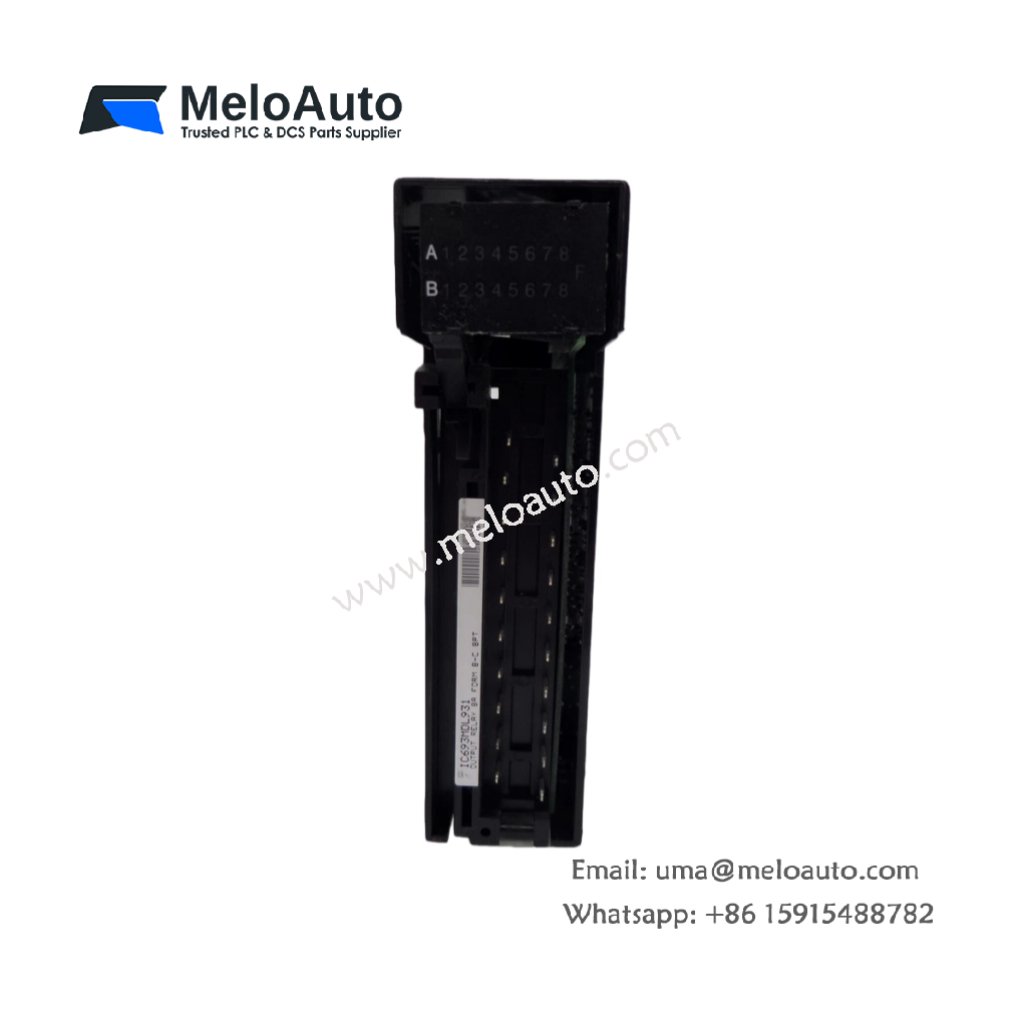

GE IC693MDL931 Output Module

The GE IC693MDL931 is a robust output module from the GE Fanuc Emerson Series 90-30. This relay output module ensures safe and reliable connections in control systems, offering flexibility and high performance. It supports both AC and DC voltage outputs, making it adaptable for various automation applications.

Key Features of the GE IC693MDL931

Output Type: Relay Outputs
Relay Type: Isolated Relay
Output Current: 8 Amps per Circuit
Rated DC Voltage: 24 VDC
Rated AC Voltage: 120/240 VAC
AC Frequency: 50/60 Hz
AC Output Voltage Range: 5-250 VAC
DC Output Voltage Range: 5-30 VDC
Maximum Contact Life: 1.1 Million Operations
Weight: 1.19 lbs (0.54 kg)

Technical Specifications

Specification	Value
Manufacturer	GE Fanuc Emerson
Product Line	Series 90-30
Part Number	IC693MDL931
Module Type	Output Module
Relay Type	Isolated Relay
Output Current	8 Amps per Circuit
Rated DC Voltage	24 VDC
Rated AC Voltage	120/240 VAC
AC Frequency	50/60 Hz
AC Output Voltage Range	5-250 VAC
DC Output Voltage Range	5-30 VDC
Maximum Contact Life	1.1 Million Operations
Weight	1.19 lbs (0.54 kg)

Description

The GE IC693MDL931 is a versatile output module within the Series 90-30 product line from GE Fanuc Emerson. It provides isolated relay outputs, each capable of handling 8 Amps per circuit, making it ideal for various automation tasks. This module supports both AC and DC voltage outputs, enhancing its compatibility with diverse control systems.

For AC voltage, the IC693MDL931 can operate within the range of 120-240 VAC at a frequency of 50-60 Hz. It can handle output voltages from 5 to 250 VAC, while also supporting DC output voltages from 5 to 30 VDC. The module’s adaptability allows it to meet the needs of both industrial and commercial applications.

Designed for long-term performance, the GE IC693MDL931 offers an impressive maximum contact life of 1.1 million operations, when operating at 5-120 VAC and a 1 Amp resistive load. This ensures durability and reliability over time, making it a key component in demanding automation environments.

The module’s high reliability and robust features make it an excellent choice for control systems where isolated relay outputs are essential for managing heavy-duty loads. With its comprehensive voltage range, the IC693MDL931 is perfect for versatile, high-performance applications.

Applications

The GE IC693MDL931 is suitable for:

Automation control systems requiring isolated relay outputs for handling AC and DC signals.
Industrial environments where reliable output control is crucial.
Applications requiring high load handling, with 8 Amps per circuit output capacity.
