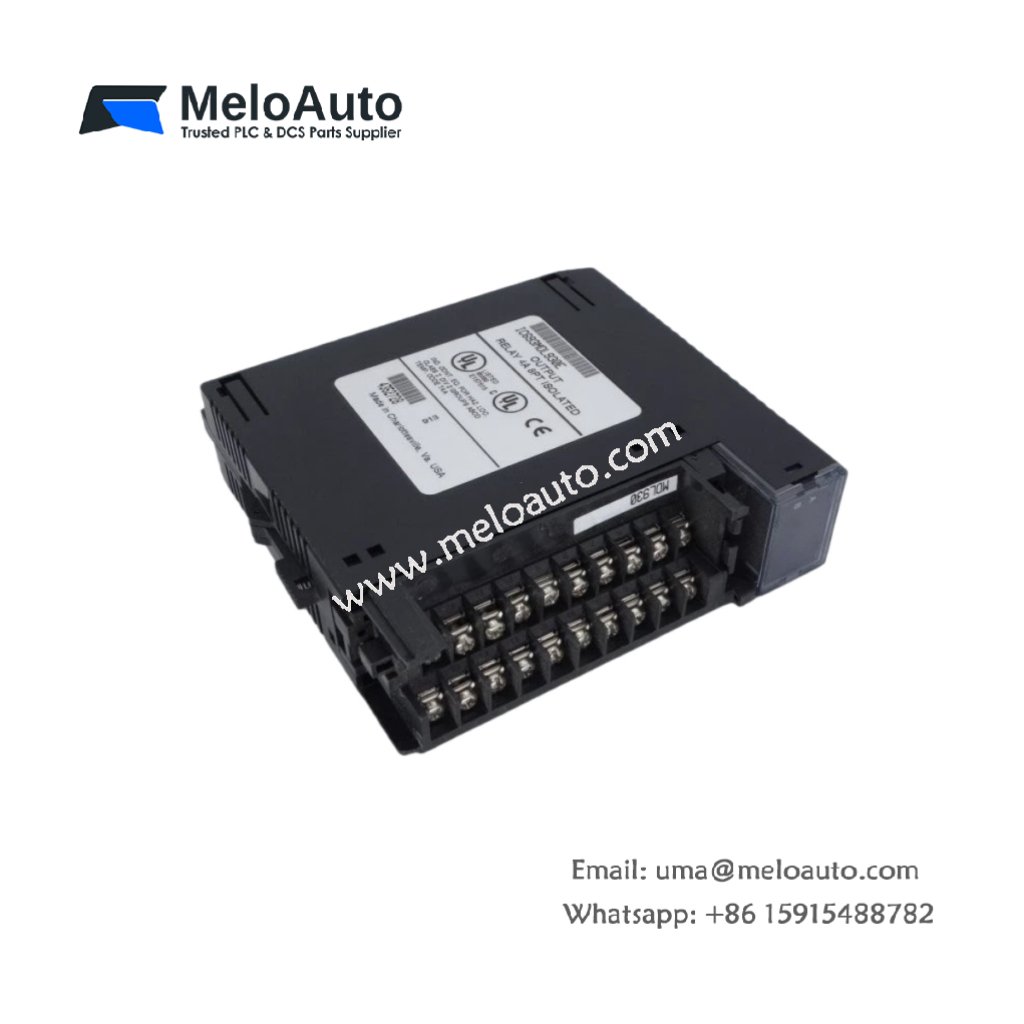

GE IC693MDL930 Relay Output Module

The GE IC693MDL930 is a discrete relay output module designed for the Series 90-30 control system by GE Fanuc Emerson. This module provides eight (8) isolated Form A relay outputs, offering a robust solution for industrial automation systems that require reliable, high-performance relay functionality.

Key Features:

Manufacturer: GE Fanuc Emerson
Product Line: Series 90-30
Part Number: IC693MDL930
Weight: 1.00 lbs (0.45 kg)
Product Type: Digital I/O
Category: Relay Output Module

Technical Specifications:

Specification	Details
Relay Outputs	Eight (8) Form A contacts (Normally Open, N.O.)
Maximum Current per Output	4 Amps (resistive)
Output Voltage Range	5V to 30V DC / 5V to 250V AC (50/60 Hz)
Nominal Output Voltage	24V DC, 120/240V AC
Isolation	1500V between field and logic sides
Output Groupings	Individually isolated channels
Load Capacity per Output	4 Amps resistive, 2 Amps pilot duty
Maximum Load per Module	20 Amps (UL installation)
LED Indicators	Yes, for each channel
Minimum Load	10 mA
Backplane Current (5V Bus)	6 mA when all outputs are off
Backplane Current (24V Bus)	70 mA when all outputs are on

Product Description:

The IC693MDL930 is a reliable relay output module from the Series 90-30 line, designed for digital I/O applications in industrial automation. It offers eight (8) independently isolated Form A relay outputs, ideal for controlling devices that require switching capabilities.

This module supports a wide voltage range, including 5V to 30V DC and 5V to 250V AC, making it versatile enough for various applications. Each relay output can handle a maximum of 4 Amps, ensuring compatibility with a broad range of resistive loads. Additionally, it features individually isolated channels, which prevent interference between outputs, enhancing system reliability.

The IC693MDL930 also offers superior isolation with 1500V between the field and logic sides, providing added protection against electrical noise and surges. LED indicators on each output channel offer easy monitoring of the module’s status, improving system visibility and troubleshooting efficiency.

Application and Use Cases:

The IC693MDL930 is ideally suited for applications requiring high-load switching, including the control of motors, relays, and other industrial devices. It is commonly used in control systems, manufacturing processes, and machine automation, where reliable switching and robust isolation are essential.

Whether controlling 24V DC or 120/240V AC devices, the IC693MDL930 guarantees stable performance. With a maximum load capacity of 4 Amps per output and up to 20 Amps per module, it meets the demands of heavy-duty applications.

About the Manufacturer:

GE Fanuc Emerson is a global leader in industrial automation and control systems. The Series 90-30 line, including the IC693MDL930, is renowned for its reliability, flexibility, and ease of use, making it a trusted choice for industries around the world.
