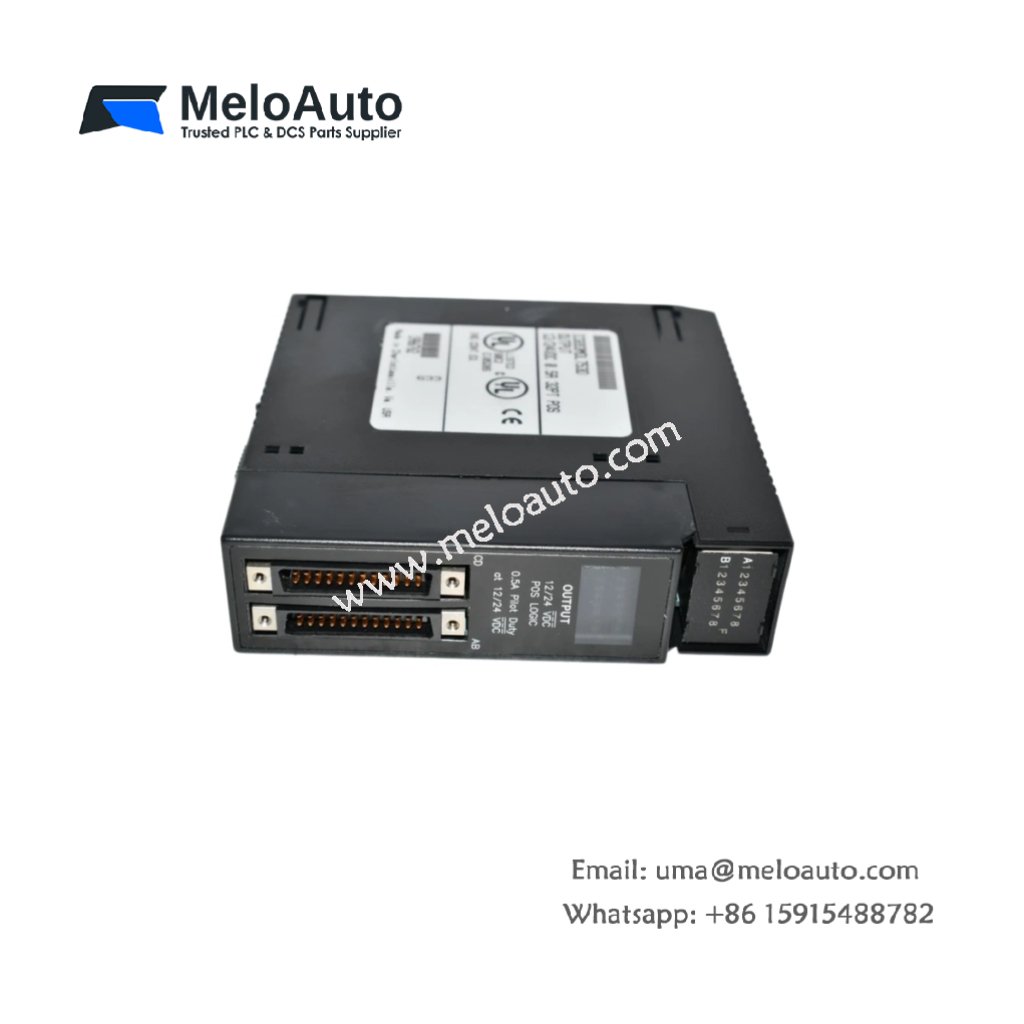

GE IC693MDL753D 32-Point Positive Logic Output Module

Overview

The GE IC693MDL753D is a versatile 32-point positive logic output module designed for GE Fanuc Series 90-30 Programmable Logic Controllers (PLCs). It operates on either 12VDC or 24VDC, making it adaptable to various power source requirements in industrial applications.

Key Features

32 Positive Logic Output Points: The GE IC693MDL753D provides 32 output points, each capable of sourcing 0.5 Amps. It functions as a switch, delivering voltage to activate the current flow through external devices.
Four Isolated Groups: This module organizes the outputs into four isolated groups of 8 points each. Isolation minimizes electrical interference between groups, ensuring stability in complex systems.
Screw Terminals: The module simplifies wiring with secure screw terminals, ensuring a solid and reliable connection.
LED Status Indicators: Each output point has an LED that indicates its on/off status. These LEDs help users monitor and troubleshoot quickly.
DIN Rail Mountable: Install the GE IC693MDL753D easily by mounting it on a standard DIN rail within control cabinets.

Technical Specifications

Parameter	Specification
Input Voltage	12/24 VDC
Output Type	Sourcing (PNP)
Number of Channels	32 (4 groups of 8)
Output Current per Channel	0.5 Amps
Maximum Total Current	4 Amps per group, 8 Amps total
Module Dimensions	Refer to official datasheet

Applications

The GE IC693MDL753D is perfect for a variety of industrial automation systems. Its high output current per channel and electrical isolation between groups ensure it operates effectively in demanding environments, where it controls sensors, actuators, and other devices.

Manufacturer

GE Fanuc manufactures the GE IC693MDL753D, maintaining high standards of quality and reliability. This module is designed to withstand tough industrial conditions, providing long-term performance and ease of use.
