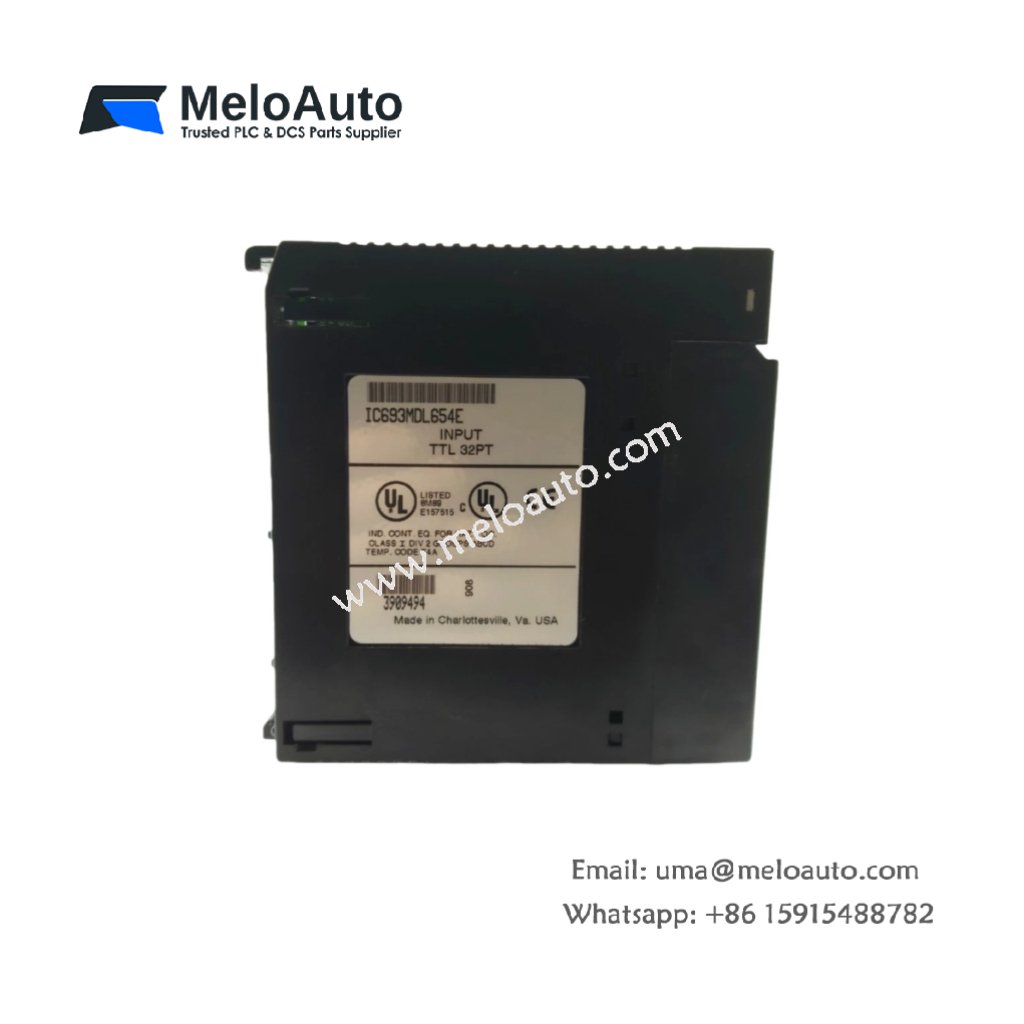

GE IC693MDL654 TTL Input Module – 32 Inputs for Series 90-30

The GE IC693MDL654 is a TTL input module designed for Series 90-30 systems. Manufactured by GE Fanuc, it features 32 input points, divided into four groups of eight inputs. The module supports both positive and negative logic, offering versatile configuration options for various industrial automation applications.

Key Features:

Manufacturer: GE Fanuc Emerson
Product Line: Series 90-30
Part Number: IC693MDL654
Category: TTL Input Module
Weight: 0.63 lbs (0.28 kg)
Rated Voltage: 5V to 12V DC (Positive or Negative Logic)
Input Points: 32 (4 groups of 8 inputs each)
Isolation: 1500V (Field side to logic side), 250V (Between groups)
Mounting: DIN Rail or Panel Mountable
Application: Industrial automation, control systems

Technical Specifications:

Specification	Details
Part Number	IC693MDL654
Product Line	Series 90-30
Weight	0.63 lbs (0.28 kg)
Rated Voltage	5V to 12V DC
Logic Type	Positive or Negative Logic
Input Voltage Range	0V to 15V DC
Inputs per Module	32 (4 groups of 8 inputs each)
Isolation	1500V (Field side to logic side)
Input Current	3.0 mA (at 5 VDC ON), 8.5 mA (at 12 VDC ON)
On-state Voltage	4.2V to 15V DC
Off-state Voltage	0V to 2.6V DC
On-state Current	2.5 mA (minimum)
Off-state Current	1.2 mA (maximum)
Operating Temperature	0°C to 60°C (32°F to 140°F)
Storage Temperature	-40°C to 85°C (-40°F to 185°F)
Relative Humidity	5% to 95%, non-condensing

Product Description:

The IC693MDL654 is a reliable TTL input module specifically designed for GE Fanuc’s Series 90-30 programmable logic controller (PLC) system. This module provides 32 input points, allowing for scalable and flexible control of industrial systems. It supports both positive and negative logic, ensuring compatibility with a wide range of input devices.

The input voltage range spans from 0V to 15V DC, and the module operates at a rated voltage of 5V to 12V DC. It features high isolation levels, with 1500V isolation between the field and logic sides and 250V isolation between input groups. This ensures safe operation in environments where electrical noise or voltage spikes may occur.

Versatile Application:

The IC693MDL654 is ideal for industrial automation systems that require TTL input modules. Whether used in control systems, manufacturing processes, or machine automation, this module ensures reliable and accurate input data processing. The 32 input points provide flexibility for various types of input devices, including switches, sensors, and other digital devices.

The module’s high current tolerance (3.0 mA typical ON current at 5 VDC) and wide voltage range (4.2V to 15V DC for on-state voltage) make it suitable for diverse industrial environments. GE Fanuc Emerson’s commitment to quality ensures that this module will perform reliably in harsh industrial conditions.

About the Manufacturer:

GE Fanuc Emerson is a global leader in industrial automation and control systems. The Series 90-30 line, including the IC693MDL654, is trusted for its reliability and flexibility in various automation applications, including turbine control, manufacturing systems, and process automation.
