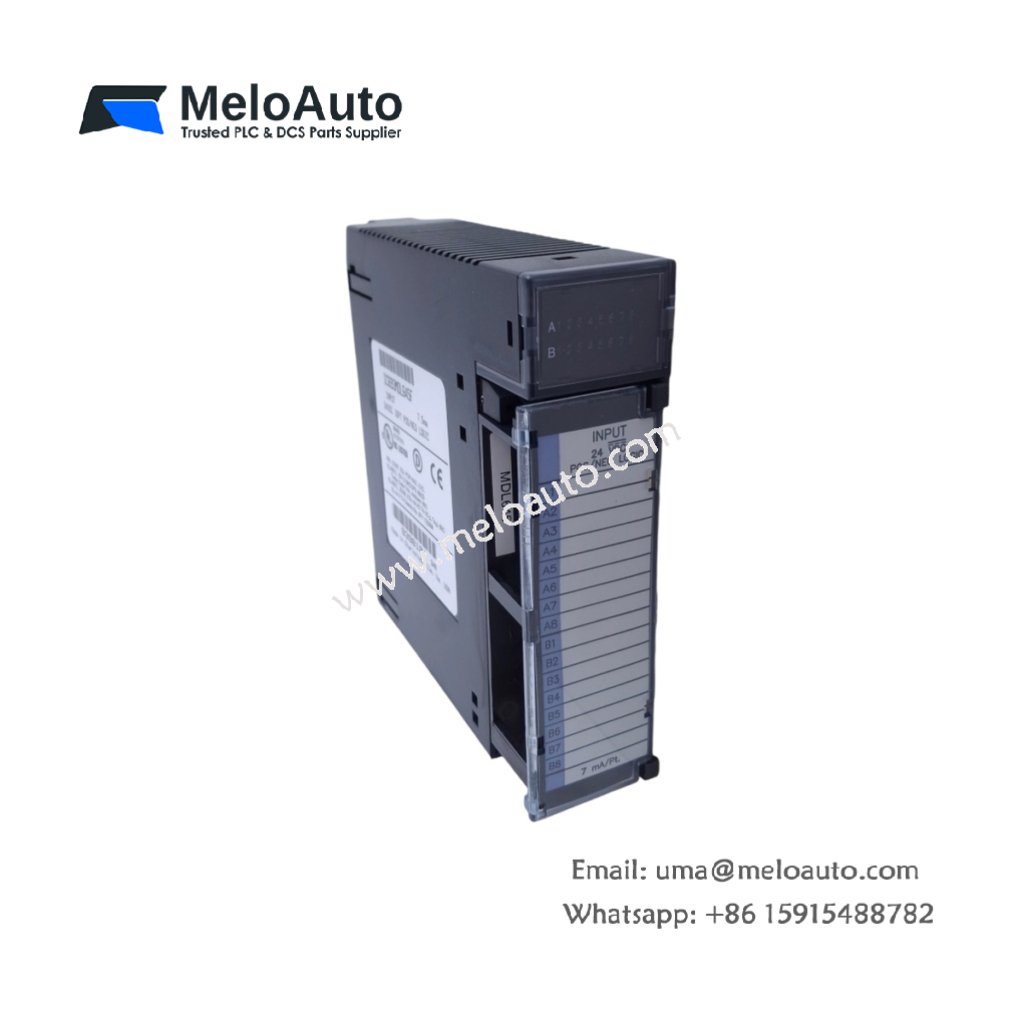

GE IC693MDL645 Positive/Negative Logic Input Module

The GE IC693MDL645 is a versatile input module designed for the Series 90-30 system by GE Fanuc Emerson. This module features sixteen (16) input channels, capable of handling both positive and negative logic signals. Its flexible input voltage range of 0-30 VDC ensures compatibility with a wide range of automation systems. With a nominal input voltage of 24 VDC, the IC693MDL645 is suitable for applications requiring reliable digital input control.

Key Features of the GE IC693MDL645 Input Module

Manufacturer: GE Fanuc Emerson
Product Line: Series 90-30
Part Number: IC693MDL645
Weight: 0.69 lbs (0.31 kg)
Module Type: Positive / Negative Discrete Input Module
Compatible Baseplate: Series 90-30 5-slot or 10-slot baseplate
Input Channels: Sixteen (16)
Input Voltage Range: 0-30 VDC
Input Current: 7 mA
Power Type: DC
LED Indicators: Sixteen (16) LED indicators (one per channel)
Connector Type: Terminal Block (20 screws), included with the module
Module Width: Single (1) slot
Response Time: 7 ms on, 7 ms off

Detailed Technical Specifications

Specification	Details
Module Type	Positive / Negative Logic Discrete Input
Input Voltage Range	0-30 VDC
Nominal Input Voltage	24 VDC
Input Current	7 mA
Number of Input Channels	16
Module Width	Single Slot (1)
LED Indicators	16 LEDs (1 per channel)
Power Consumption	80 mA at 5 VDC, 125 mA at 24 VDC Isolated
Connector Type	Terminal Block (20 screws)
Response Time (On/Off)	7 ms on, 7 ms off

Why Choose the GE IC693MDL645 Input Module?

High-Precision Control: The GE IC693MDL645 module delivers accurate signal processing with 7 ms on/off response time, making it ideal for real-time automation tasks.
Easy Integration: With its 16 channels and 0-30 VDC input range, this module integrates smoothly into a variety of automation and control systems, including the Series 90-30 PLC system.
User-Friendly Setup: The terminal block connector (with 20 screws) simplifies the installation process, ensuring secure and reliable connections.
Compact Design: It occupies only a single slot on the baseplate, saving space while offering high performance.
LED Indicators: With 16 individual LED indicators, you can easily monitor the status of each input channel, ensuring seamless operation and quick troubleshooting.

The GE IC693MDL645 is a crucial component for systems requiring fast and efficient digital input control. Whether for positive or negative logic inputs, this module provides flexibility, durability, and accuracy in industrial automation environments.
